Freefly RTK GPS Ground Station

SKU: FRRTKGPDGS MFR: 910-00659
Earn VIP Reward Points

Key Features

  • Achieve pinpoint accuracy with this Freefly RTK GPS ground station for professional drone mapping.
  • Enhance your drone's navigation using multi-band RTK GPS, ensuring reliable positioning every time.
  • Easily mount your RTK GPS with the included magnetic kit, compatible with standard tripods (1/4"-20).
  • Connect effortlessly via USB-C, CAN Bus, or UART for seamless integration with various drone systems.
  • This RTK GPS module features a barometer & magnetometer for comprehensive environmental data capture.
  • Durable & compact design ensures portability; take your Freefly RTK GPS ground station anywhere with ease.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$99.99

2 Year

$149.99

3 Year

$199.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Freefly RTK GPS Ground Station Specifications

  • Mounting

    Magnet, 1/4"-20 Thread

  • Status LEDs

    RGB

  • Measurement Modes

    IST8310 Magnetometer
    BMP388 Barometer

  • Antenna Type

    SMA, 20 mA Maximum

  • Connectors

    1x USB Type-C
    1x SMA Antenna
    1x 4-Pin CAN Bus
    1x 8-Pin UART/12C

  • Power Input

    5 V USB
    4.7 to 25.2 V CAN
    4.7 to 25.2 V UART

  • Power Consumption

    < 1 W

  • Dimensions

    4.73 x 1.98" (20.1 x 50.4mm)

  • UPC Code

    742574252408

About Freefly RTK GPS Ground Station

An advanced solution for precise aerial mapping and surveying, the Freefly RTK GPS Ground Station is a high-tech, durable, and portable device that offers centimeter-level accuracy for your Alta X or Astro drone. Utilizing Real Time Kinematic (RTK) technology, this compact ground station module enhances your drone's location accuracy both vertically and horizontally in real-time.

The RTK GPS Ground Station works by integrating a pair of modules to amplify positional accuracy. One module, known as the "Rover," is installed on the aircraft, while the "Ground Station" module is mounted on a tripod and connected to your ground station computer. This setup allows your ground station computer to transmit GPS corrections to the Rover module on the aircraft, refining precision from a few meters to just a few centimeters.

This kit includes one module, magnetic mounting hardware compatible with common tripods (1/4" 20), and a USB cable. For full RTK capability with an Alta X equipped with F9P GPS (not Here2), you'll need an additional RTK GPS Ground Station for your ground station computer, a radio for communication between the ground station computer and the Alta (such as FRX Pro), and a sturdy tripod or similar mount for your Ground Station module.

If you're operating an Alta X with Here2 GPS and want full RTK capability, you'll require two RTK GPS Ground Stations (one for the Rover and one for the ground station computer), a radio for communication, and a sturdy mount for your Ground Station module. For enhanced GPS performance with an Alta X with Here2 GPS, a single RTK GPS Ground Station for your Alta X will suffice.

For full RTK capability with an Astro Base Kit, you'll need one RTK GPS Ground Station for your ground station computer and a sturdy mount for your Ground Station module.

Please note, if your computer (such as a MacBook Pro) does not have USB A ports, you will need a USB A-C adapter or your own USB C-C cable.

In summary, the Freefly RTK GPS Ground Station is a multifunctional, portable, and compact solution for professionals seeking superior accuracy in their aerial operations.

Freefly RTK GPS Ground Station Features

  • Highest level GPS positional accuracy for Alta X and Astro
  • U-blox ZED-F9P GPS module
  • Multiband L1/L2 receiver
  • Includes IST8310 Magnetometer and BMP388 barometer, safety switch, LED, and RGB LED
  • Designed and Assembled in USA
  • Compatible with AltaSW 1.3+, PX4 1.9+, Astro
  • Not compatible with Alta 8 Pro, Alta 8 or Alta 6

Key Features

  • Achieve pinpoint accuracy with this Freefly RTK GPS ground station for professional drone mapping.
  • Enhance your drone's navigation using multi-band RTK GPS, ensuring reliable positioning every time.
  • Easily mount your RTK GPS with the included magnetic kit, compatible with standard tripods (1/4"-20).
  • Connect effortlessly via USB-C, CAN Bus, or UART for seamless integration with various drone systems.
  • This RTK GPS module features a barometer & magnetometer for comprehensive environmental data capture.
  • Durable & compact design ensures portability; take your Freefly RTK GPS ground station anywhere with ease.

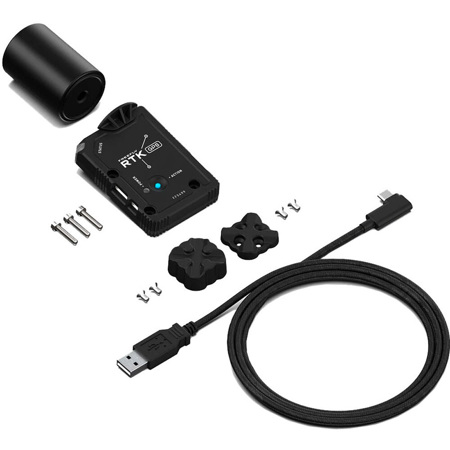

What's in the box:

  • Freefly RTK GPS Module
  • Multi-Band RTK GPS Antenna
  • Magnetic Mounting Kit for Tripod (1/4 20 Interface)
  • 4x Mounting Screws for Magnetic Mounting Kit (M3x6 FHCS)
  • 9.84' Type C Right-Angle to Type A USB Cable (Long)
  • 3x Mounting Screws for Alta X Rover Installation (M3x16 SHCS)
  • Freefly 1 Year Limited Warranty
