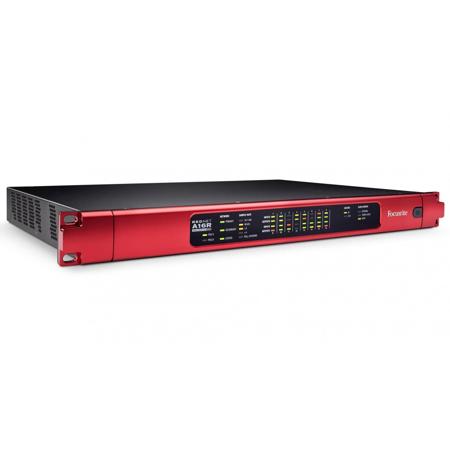

Focusrite RedNet A16R MkII 16x16 Analog I/O Dante Audio Interface
SKU: FRSRDA16RMK2 MFR: AMS-REDNET-A16R-MKII
$4,399.99
$5,719.99
Save: $1320 (23%)OR
Key Features
- Experience pristine audio quality with the Focusrite RedNet A16R MkII interface.
- Seamlessly integrate this Dante audio interface into your existing network setup.
- Enjoy low latency performance for critical recording and live sound applications.
- Expand your studio's I/O capabilities with 16x16 analog connectivity options.
- Achieve superior dynamic range for professional-grade audio production tasks.
- Utilize redundant network modes for uninterrupted audio streaming and recording.
Special Order?Estimated to Ship: 09/08/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$499.99
3 Year
$649.99
5 Year
$949.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Focusrite RedNet A16R MkII
Experience the superior audio quality and seamless connectivity with the RedNet A16R MkII 16x16 Analog I/O Dante Audio Interface. This advanced 16-channel analog interface is specifically designed for Dante networks, and it also includes two channels of AES3 I/O for added versatility.
The RedNet A16R MkII boasts precision A-D and D-A conversion, offering an impressive 119dB of dynamic range, consistently flat from 20Hz - 20kHz (+/- 0.15dB). This ensures crystal clear audio reproduction across the entire frequency spectrum.
For precise control over your audio, this interface features individual input and output channel level controls. These can be easily adjusted using the RedNet Control, allowing you to fine-tune all I/O levels to your exact requirements.
Designed with reliability in mind, the RedNet A16R MkII comes with dual power supplies and primary and secondary EtherCON network connectors. This makes it an ideal choice for critical-path applications in recording, post-production, live sound, and broadcast environments.
The built-in redundancy features of this audio interface enable silent fail-over in the event of a power or network outage, providing peace of mind for system technicians.
The RedNet A16R MkII offers flexible connectivity options. Analog inputs and outputs are connected through four rear-panel AES59 standard DB25 connectors, while an additional pair of AES3 I/O is provided through male and female XLR for added flexibility. The XLR input can accept DARS signals in addition to AES3.
The RedNet A16R MkII also features Word Clock I/O on BNC connectors. This allows external devices to clock to the interface, or alternatively, it can act as a network clock grand master, following an external input.
Designed for both permanent installation and repeated strike and setup, all connectors on the RedNet A16R MkII lock and remain terminated even under stress. This ensures a worry-free installation and long-lasting reliability once situated in a rack.
All Focusrite Pro products, including the RedNet A16R MkII, come with a three-year warranty and award-winning customer support, ensuring you get the most out of your purchase.
Focusrite RedNet A16R MkII Features
- 16 channels of high-quality line-level analogue I/O for Dante Audio-over-IP networks
- Individual input/output channel level control and calibration available in +/- 1db increments via digital trim fader with mute and dim functions
- 24-bit precision conversion up to 192kHz
- 119dB dynamic range, flat from 20Hz - 20kHz, +/-0.15dB
- Software-selectable +24dBu or +18dBu level alignment
- AES67, AES70 and SMPTE 2110 compliant
- Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability
- Word Clock I/O and DARS input for increased flexibility plus an additional two channels of AES3 I/O
- Analogue I/O to AES59 standard DB25 connectors
- Comprehensive front-panel metering and indicators
- RedNet Control remote monitoring software with powerful graphic user interface
