Fat Shark 5.8GHz Receiver Module for Dominator Headsets

Fat Shark 5.8GHz Receiver Module for Dominator Headsets

SKU: FSV1902
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Fat Shark 5.8GHz Receiver Module for Dominator Headsets Specifications

  • Compatibility

    Dominator Headsets

  • Frequency Band

    5.8 GHz

  • RX Sensitivity

    = -90 dB

  • Channels

    7 selectable channels

  • Dimensions

    0.98 x 1.66" (24.89 x 42.16mm)

About Fat Shark 5.8GHz Receiver Module for Dominator Headsets

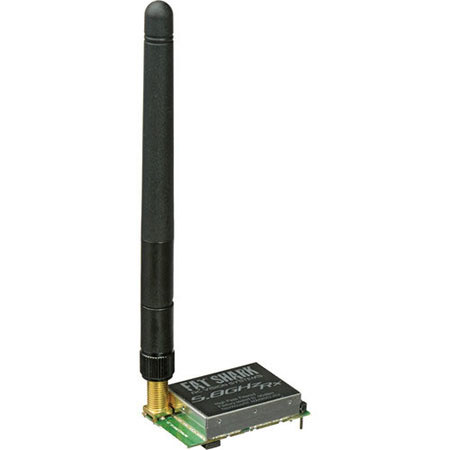

The Fat Shark 5.8GHz Receiver Module for Dominator Headsets is a audio/video wireless RF receiver that uses the 5.8 GHz frequency band. It is designed for use with the Dominator and DominatorHD headsets and is compatible with both NTSC and PAL video formats. It features integrated audio/video inputs and outputs on a single PCB and provides seven selectable channels.

Fat Shark 5.8GHz Receiver Module for Dominator Headsets Features

  • 5.8GHz audio/video wireless RF module
  • Compatible with both NTSC and PAL video formats
  • High efficiency frequency modulation (FM) / demodulation scheme
  • Integrated audio and video input and output on one module base PCB
  • Provides 7 selectable channels
  • Received signal strength indicator (RSSI)
  • Contains a MAC4090 sync-IC
  • RX sensitivity = -90dB
  • Pin out compatible with Fat Shark and ImmersionRC designs
  • SPI mode for channel control

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Provides 7 selectable channels
  • Contains a MAC4090 sync-IC
  • RX sensitivity = -90dB
  • SPI mode for channel control

What's in the box:

  • Fat Shark 5.8GHz Receiver Module
  • Fat Shark 1 Year Limited Warranty
