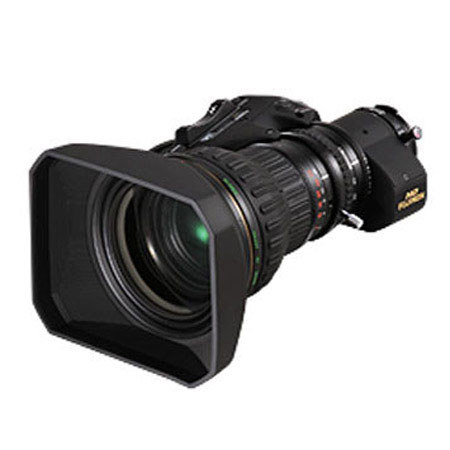

Fujinon ZA22X7.6BEZD-T58 7.6-167mm f/1.8-2.5 Lens with 2x Extender and Digital Servo, Innerfocus, QuickZoom

SKU: FU227BEZDT58

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Fujinon ZA22X7.6BEZD-T58 Specifications

  • Format

    2/3" sensors

  • Focal Length

    7.6 - 167mm

  • Zoom Ratio

    22x

  • Extender

    2x

  • Aperture

    7.6 - 120mm: f/1.8 (T1.9)
    167mm: f/2.5 (T2.6)

  • Minimum Focus Distance

    From Image Plane: 3.51' (1.07 m)
    From Front of Lens: 2.62' (0.8 m)

  • Object Dimensions @ M.O.D. (16:9)

    7.6mm: 36.02 x 20.24" (91.5 x 51.4 cm)
    167mm: 1.69 x 0.94" (4.3 x 2.4 cm)

  • Angular Field of View (16:9)

    7.6mm: 64deg.30' x 39deg.03'
    167mm: 3deg.17' x 1deg.51'

  • Filter Size

    M95 (x1, filter attaches to the lens hood)
    M107 (x1, filter attaches to the lens hood)

  • Dimensions (Dia. x L)

    3.84 x 8.76" (10 x 22.26 cm)

  • Weight

    4.01 lbs (1.82 kg)

About Fujinon ZA22X7.6BEZD-T58

The Fujinon 7.6-167mm f/1.8-2.5 Lens with 2x Extender and Digital Servo provides 2/3" cameras with a slightly wide to super telephoto focal range. The lens features a fast maximum aperture of f/1.8 at 7.6-120mm and f/2.5 at 167mm. The 22x zoom ratio is effectively doubled by an integrated 2x extender and a digital servo for focus and zoom allow remote control via RS-232.

Internal focusing minimizes the effects of lens breathing, ensuring a more consistent focal length when making focus adjustments. QuickZoom improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length. The Zoom Limit function purposefully constrains the focal range to only desirable focal lengths.

Fujinon ZA22X7.6BEZD-T58 Features

  • 7.6-167mm focal length for 2/3" cameras
  • Fast maximum aperture of f/1.8 at 7.6-120mm and f/2.5 at 167mm
  • 22x Zoom Ratio and integrated 2x extender
  • Digital servo for focus and zoom with remote control via RS-232
  • Innerfocus, QuickZoom and Zoom Limit

Key Features

  • 7.6-167mm focal length for 2/3 cameras
  • 22x Zoom Ratio and integrated 2x extender
  • Innerfocus, QuickZoom and Zoom Limit
