16% Off

Fujitsu fi-8170 Color Duplex Document Scanner Deluxe Bundle with Paperstream Capture Pro

SKU: FUCG01303001 MFR: CG01000-303001
Earn VIP Reward Points

Key Features

  • Maximize productivity with rapid, 70 ppm Fujitsu document scanner speeds.
  • Enjoy efficient, two-sided scanning with the automatic duplex scanning feature.
  • Process large batches using the 100-sheet ADF capacity for seamless workflows.
  • Capture intricate details with the high-resolution 600 dpi optical scanner.
  • Connect via USB or Ethernet for flexible integration with your existing setup.
  • Utilize PaperStream Capture Pro for advanced image processing and optimization.
See More Product Details
Temporarily On Backorder?Expected Availability: 11/2025Request assistance or get notified
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2025-03-04T19:00:00

Rated 2 out of 5

Dan's Scanner

No happy with this scanner! Have to rescan more than once and lines appear on the cards even though no lines appear on the card! Jams happen often!

Dan's

2023-05-06T20:00:00

Rated 4 out of 5

Great Scanner With Minor Flaws

Scanner works great with top loaders & penny sleeves (after you remove the top roller wheel). My issue is it doesn't scan semi rigids without jamming up. Also, every so often, when I scan top loaders it jams up. Easy fix but frustrating. Lastly, some of my top loaders scan in with print lines across the top loader.

Drew C.

2023-04-28T20:00:00

Rated 5 out of 5

Over the top excellent!

I can't speak more highly of such an amazing product. When it comes to baseball cards or any collectible cards for that matter, you don't need to look any further. I couldn't be any happier!

Michael

2023-04-26T20:00:00

Rated 5 out of 5

The best scanner choice

I have wasted so much time and money trying to scan with mutli-functional machines (print, scan, fax, copys) for too many years. Fujitsu needs to be your only choice for scanning documents. Save your frustrations. Buy Fujitsu FIRST and don't waste your time or money on other worthless scanning alternatives.

Mark E.

2023-01-22T19:00:00

Rated 4 out of 5

Works better than a flatbed

While the scanner is fast and crops well, there are some critical issues. We have found that streak marks appear on some of the cards we scan, thus indicating they may have flaws on the card when indeed these do not exist. There has also been some jamming issues, where cards get stuck and some cards have been destroyed attempting to remove them, or they get out of sequence causing issues with alignment of the card image with the card listing. Finally, most cards outside of the thinnest cards such as Mosaic, Prizm, Select, etc. do not feed individually most of the time, so each must be approved that a multiple card pull did not exist. With many sets this thickness and type, the process is slowed considerably. Still it is better tahn hand feeding a flatbed then cropping yourself.

Wynter1958

2023-01-21T19:00:00

Rated 5 out of 5

works great, actually need another one for the a great price

we use it to keep from having so much paper on site for our tax business.

marsha

2023-01-18T19:00:00

Rated 5 out of 5

Terrific Scanner!

We use this to scan all of our client documents. It works great and it's easy to setup and use! I was surprised that it scans so quickly and that it scans both sides at once. We were scanning with a MFP. This scanner is a tremendous step up and has already increase our productivity and workflow. Best piece of office equipment that I've ever bought.

LT

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Fujitsu fi-8170 Specifications

  • Scanner Type

    ADF (Automatic Document Feeder) / Manual Feed, Duplex

  • Scanning Speed (A4 Portrait)

    Simplex: 70 ppm (200/300 dpi)
    Duplex: 140 ipm (200/300 dpi)
    (Color / Grayscale / Monochrome)

  • Image Sensor Type

    CIS x 2 (front x1, back x1)

  • Light Source

    RGB LED x2 (front x1, back x1)

  • Optical Resolution

    600 dpi

  • Output Resolution

    50 to 600 dpi (adjustable by 1 dpi increments)
    1,200 dpi (driver)
    (Color/Grayscale/Monochrome)

  • Output Format

    Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit

  • Background Colors

    White/Black (selectable)

  • Document Size

    Maximum: 8.5 x 14" (215.9 x 355.6 mm)
    Minimum: 1.9 x 2" (48x50 mm)
    Long Page Scanning: 240" (6,096 mm)

  • Paper Weight (Thickness)

    Paper: 5.3 to 124 lbs (20 to 465 g/sq. m)
    Booklet: 0.276" (Less than 7 mm)
    Plastic Card: 0.055" (1.4 mm) or less

  • ADF Capacity

    100 sheets (Letter 20 lbs or A4 80 g/sq. m)

  • Expected Daily Volume

    10,000 sheets

  • Multifeed Detection

    Overlap detection (Ultrasonic sensor)
    Length detection

  • Paper Protection

    Image monitoring, Sound detection (iSOP)

  • Interface

    USB: 3.2 Gen 1x1 / USB 2.0 / USB 1.1
    Ethernet: 10BASE-T, 100BASE-TX, 1000BASE-T

  • Power Requirements

    AC 100 to 240 V 50/60Hz

  • Power Consumption

    Operating Mode: 28 W or less / 17 W (Eco mode)
    Sleep Mode: 2.0 W or less (LAN) / 1.4 W or less (USB)
    Auto Standby (Off) Mode: 0.2 W or less

  • Operating Environment

    Temperature: 41 to 95 Degree F (5 to 35 Degree C)
    Relative Humidity: 15 to 80% (non-condensing)

  • Environmental Compliance

    ENERGY STAR, RoHS

  • Supported Operating System

    Windows 11, Windows 10, Windows 8.1, Windows 7
    Windows Server 2022, Windows Server 2019,
    Windows Server 2016
    Windows Server 2012 R2, Windows Server 2012,
    Windows Server 2008 R2, macOS, Linux
    (Ubuntu)

  • Included Software/Drivers

    PaperStream IP Driver (TWAIN/TWAIN x64/ISIS),
    WIA Driver, Image Scanner Driver for macOS (ICA)
    Image Scanner Driver for Linux (SANE) PaperStream
    Capture, PaperStream ClickScan, Software Operation
    Panel, Error Recovery Guide,
    ABBYY FineReader for ScanSnap, Scanner Central Admin

  • Image Processing Functions

    Multi image output, Automatic color detection,
    Blank page detection, Dynamic threshold (iDTC),
    Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis,
    Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal,
    Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction,
    Background pattern removal, Cropping, Static threshold.

  • Included Items

    ADF paper chute, AC cable, AC adapter, USB cable,
    Setup DVD-ROM

  • Certifications

    Kofax VRS Elite

  • Dimensions (W x D x H)

    11.8 x 6.7 x 6.4" (300 x 170 x 163mm)

  • Weight

    8.8 lbs (4kg)

  • UPC Code

    97564313257

About Fujitsu fi-8170

FEATURED REVIEWS

Over the top excellent!

By Michael

I can't speak more highly of such an amazing product. When it comes to baseball cards or any collectible cards for that matter, you don't need to look any further. I couldn't be any happier!

The best scanner choice

By Mark E.

I have wasted so much time and money trying to scan with mutli-functional machines (print, scan, fax, copys) for too many years. Fujitsu needs to be your only choice for scanning documents. Save your frustrations. Buy Fujitsu FIRST and don't waste your time or money on other worthless scanning alternatives.

This popular product bundles together two best-in-class products: the fi-8170 scanner and PaperStream Capture Pro software. The result is a powerful solution for data extraction, indexing, and other productivity-increasing features.

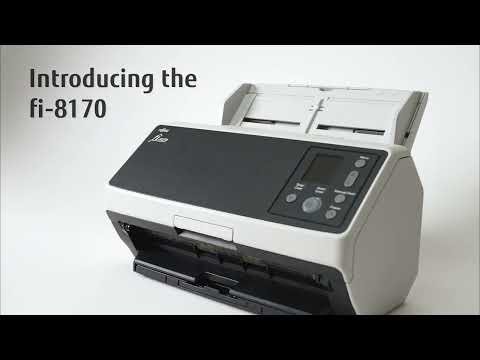

- fi-8170 Color Duplex Document Scanner -
Made for professional workflows, the Fujitsu fi-8170 scanner gives small and large organizations unparalleled productivity. Patented feeding technologies, industry-leading reliability, and Clear Image Capture deliver the highest quality digital images into critical workflows for customer onboarding, accounting, administration, mailrooms, and much more.


- Paperstream Capture Pro -
PaperStream Capture Pro is a simple, yet powerful front-end capture software that efficiently processes documents by offering seamless, high-quality front-end capture, image enhancement, and organized, indexed, and extracted data for release. PaperStream Capture Pro can help organizations optimize important data, improve business efficiencies and increase productivity.

PaperStream Capture Pro will help you clean up your scanned documents and improve OCR, while offering a user-friendly interface that allows for easy operation from start to finish. The fi-8170 Deluxe Bundle increases productivity without hidden costs and will help you digitize your documents more efficiently.

Fujitsu fi-8170 Features

  • fi-8170 Color Duplex Document Scanner Features
  • Fast, double-sided scanning of up to 70 pages per minute
  • 100-page automatic document feeder for large or mixed stacks of documents
  • Supports both USB 3.2 and ethernet wired network connections
  • Color LCD panel for easy operation from the front of the scanner
  • Ultrasonic Multi-feed Detection ensures the capture of all images fed through the scanner
  • Intelligent Paper Protection with Image Monitoring prevents paper jams
  • Scans documents and hard cards up to 1.4mm, including passports, IDs, and embossed cards
  • In-box software includes PaperStream IP (TWAIN/TWAIN64/ISIS), PaperStream Capture, PaperStream ClickScan, Scanner Central Admin SOP, ERG, fi Series Online Update
  • Download software includes PaperStream Pro
  • Paperstream Capture Pro Features
  • High-level data extraction and indexing
  • Imports electronic images
  • Supports multi-station licensing
  • Releases images and metadata into your cloud or on-premise database
  • Image clean up during and after the scanning process via PaperStream IP

Product Documents

User Manual

Key Features

  • Maximize productivity with rapid, 70 ppm Fujitsu document scanner speeds.
  • Enjoy efficient, two-sided scanning with the automatic duplex scanning feature.
  • Process large batches using the 100-sheet ADF capacity for seamless workflows.
  • Capture intricate details with the high-resolution 600 dpi optical scanner.
  • Connect via USB or Ethernet for flexible integration with your existing setup.
  • Utilize PaperStream Capture Pro for advanced image processing and optimization.

What's in the box:

  • Fujitsu fi-8170 Color Duplex Document Scanner
  • Paperstream Capture Pro
  • Fujitsu 1 Year Limited Warranty
