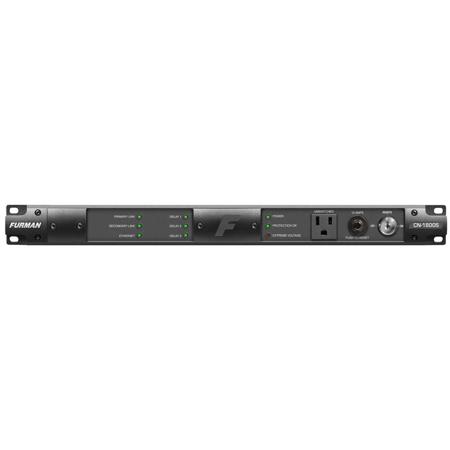

Furman Sound Contractor Series CN-1800S 1RU 5 Amp Bidirectional SmartSequencer
See all Furman Sound items

Furman Sound Contractor Series CN-1800S 1RU 15 Amp Bidirectional SmartSequencer with SMP, EVS, 9 Outlets, 10' AC Cord

SKU: FUCN1800S

This item is no longer available.

Recommended Alternatives

Furman Sound M4315-PRO: Picture 1 regular
Furman Sound M4315-PRO 15 Amp Power Management with Interactive Control
$844.95
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Furman Sound CN-1800S Specifications

  • AC Voltage Input Range

    90-139VAC, 50/60Hz

  • Maximum AC Current Rating

    15 amps (Thermal breaker)

  • AC Cord

    3/12AWG, 10', black, fixed, NEMA 5-15P plug

  • AC Receptacles

    Rear Panel Outlets: 2 Unswitched NEMA 5 15R's (1 duplex), 6 Sequenced NEMA 5-15R's (3 duplexes each controlled by separate relay)
    Front Panel: One NEMA 5-15R Convenience Outlet, Unswitched

  • Surge/Under-Overvoltage Protection

    AC Surge Protection: SMP
    Spike Protection Mode: Line to neutral, zero ground leakage
    Spike Clamping Voltage: 188VAC peak at 6,000 volts/3,000 amps
    Response Time: 1 nanosecond
    Maximum Surge Current: 6,500 Amps
    AC Undervoltage Protection: EVS, 77VAC+/-3VAC
    AC Overvoltage Protection: EVS, 145VAC+/-5VAC
    AC Overvoltage Reset Modes: Manual and Auto-reset (configurable)

  • AC Filtering

    LiFT
    Noise Attenuation: Linear, 10dB at 10KHz, 40dBat 100KHz, 50dBat 500KHz

  • Operating Temperature Range

    5 to 40 deg. C / 41 to 104 deg. F

  • Humidity Range

    <90% rH (Relative Humidity)

  • User Interface 1

    Key-switch: Front panel, 3-position key-switch (On, Off, Remote)
    Keys: Included, 1 pair
    Push-button Switch: Front panel, hidden by security cover
    Circuit Breaker: Front panel, push-button, 15A Thermal Breaker
    Front panel diagnostic indicators: Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage

  • User Interface 2

    Front Panel DIP Switches: Front panel. Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off BND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual
    Potentiometer: Front panel, hidden by security cover, fine tune delay adjust

  • Control/Status/Triggering (Rear Panel) 1

    Remote Terminal: +5-30VDC In, 12VDC (12mA) Out
    SmartSequencing: Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop - 1000' nominal)
    Remote Terminal: Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)
    Force Off/Delay 3 Terminal: Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)

  • Control/Status/Triggering (Rear Panel) 2

    RS-232 Compatible: Yes, DB-9 Connector
    IP Addressability: Optional, via BB-RS232 Ethernet/RS-232 Adapter (sold separately) for IP control via Telnet, HTTP, BlueBOLT
    Voltmeter: Available with RS-232/Ethernet option, +/- 2VAC accuracy
    Ammeter: Available with RS-232/Ethernet option, +/-1A accuracy

  • Power Consumption (No Load)

    10W

  • Safety Agency

    NRTL-C, RoHS Compliant

  • UPC Code

    654061028451

About Furman Sound CN-1800S

Designed for Commercial A/V Installers, the CN-1800S combines robust control capabilities via SmartSequencing Technology, advanced AC protection, AC noise filtration and optional compatibility with the BlueBOLT Remote Power and Energy Management Platform (BB-RS232 adapter required, sold separately). The new CN-1800S is one of the first products to feature Furman's SmartSequencing technology, which allows large and complex A/V systems to be safely powered on and off with a simple press of a button or turn of a key, even by nontechnical personnel.

SmartSequencing's bidirectional communications between installed units enables a primary unit to control and sequence multiple secondary units, ensuring multizone electronic systems are powered on and off safely and dependably from a single control point across an entire installation. Units can be connected via current loop at runs of more than 1,000 feet with backwards compatibility with Furman's legacy sequencers. In addition, the CN-1800S offers robust control options, equipped with RS-232 ports and command sets for integration with control systems.

An optional RS-232-to-Ethernet adaptor (sold separately) adds full IP-addressability to the unit, allowing it to be controlled, programmed and monitored from a smartphone, tablet, PC or any Web-enabled device via Telnet, direct HTTP connection or Panamax/Furman's BlueBOLT-hosted remote power and energy management platform.

Surge Protection
Series Multi-Stage Protection (SMP) Technology provides the highest level of surge & spike protection available.

Noise Filtration
Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity.

Voltage Protection
Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods.

SmartSequencing
SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.

Diagnostic Lights
Diagnostic lights provide valuable system information including power quality, "Protectection Ok" indicator and Extreme Voltage indicator.

15 Amp Output Current
15 amp maximum current capacity with incorporated 15 amp thermal circuit breaker.

Remote Access (RS-232)
RS-232 compatibility & command set provide integration with control systems, open source and control programming.

BlueBOLT Compatible
BlueBOLT provides remote access to reboot components, power equipment on/off and monitor power quality via the internet from anywhere in the world.

Nine Total Outlets
The CN-1800S contains eight rear panel NEMA 5-15R outlets and one front panel NEMA 5-15R outlet.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Furman Sound Contractor Series CN-1800S 1RU 15 Amp Bidirectional SmartSequencer
  • Furman Sound 15 Year Limited Warranty
