Furman Sound Contractor Series CN-20MP 20 Amp MiniPort
See all Furman Sound items

Furman Sound Contractor Series CN-20MP 20 Amp MiniPort, SmartSequencing, EVS, 10' AC Cord

SKU: FUCN20MP

This item is no longer available.

Recommended Alternatives

Furman Sound CN-15MP: Picture 1 regular
Furman Sound Contractor Series CN-15MP 15 Amp MiniPort
$329.95$309.95
Furman Sound P-2400: Picture 1 regular
Furman Sound Prestige Series P-2400 AR Voltage Regulator/Power Conditioner
$3,094.95$2,634.95
Furman Sound P-2400: Picture 1 regular
Furman Sound Prestige Series P-2400 IT Symmetrically Balanced Power Conditioner
$4,054.95$3,444.95
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Furman Sound CN-20MP Specifications

  • AC Voltage Input Range

    90-139VAC, 50/60Hz

  • Maximum AC Current Rating

    20 Amps (No Breaker)

  • AC Cord

    3/12AWG, 10 feet, black, fixed, NEMA 5-20P plug

  • AC Receptacles

    2 NEMA 5-20R's (1 duplex)

  • Surge/Under-Overvoltage Protection

    AC Undervoltage Protection: EVS, 77VAC+/-3VAC
    AC Overvoltage Protection: EVS, 140VAC+/-5VAC
    AC Overvoltage Reset Modes: Enabled and disabled (configurable via DIP Switch #9)

  • Operating Temperature Range

    5 to 40 deg. C / 41 to 104 deg. F

  • Humidity Range

    <90% rH (Relative Humidity)

  • User Interface

    Circuit Breaker: No Breaker
    Front panel diagnostic indicators (LED): Power, Extreme Voltage, Primary Link, Secondary Link

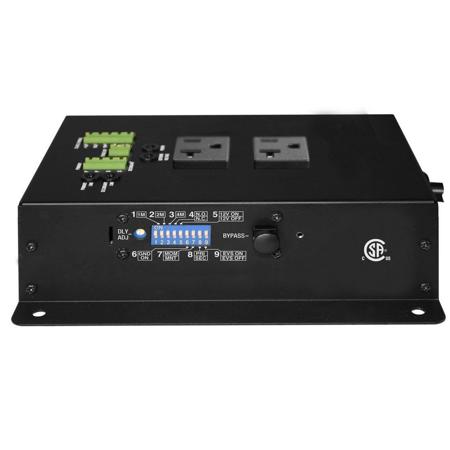

    Side Panel DIP Switch Features (with security cover): 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off GND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual
    Side Panel Potentiometer allows fine tune delay adjustments

  • Control/Status/Triggering (Rear Panel) 1

    Remote Terminal: +5-30VDC In, 12VDC (12mA) Out
    SmartSequencing: Phoenix-type 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop - 1000' nominal)
    Remote Terminal: Phoenix-type 5-Pin Connector With Screw Terminals; +12V, STAT, REM, GND, DLY_OUT (Class 1 Wiring)
    Force Off: Phoenix-type 2-Pin Connector With Screw Terminals, FORCE OFF (Class 1 Wiring)

  • Control/Status/Triggering (Rear Panel) 2

    RS-232 Compatible

  • Power Consumption (No Load)

    10W

  • Safety Agency

    CSA, RoHS Compliant

  • UPC Code

    654061028482

About Furman Sound CN-20MP

Furman's Contractor Series MiniPorts extend the benefits of SmartSequencing to electronics outside of the equipment rack, providing tremendous flexibility to any installation scenario. Units may be daisy-chained and fully controlled via a Furman SmartSequencer, legacy Furman sequencer, third-party sequencers, via the Internet (with BB-RS232 adaptor and SmartSequencer), and/or control and automation systems.

DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches. Sequencing of duplex initiated remotely by standard analog triggering (remote terminal) or data link (SmartSequencing from CN-1800S or CN-2400S). The CN-20MP can shut itself off automatically when triggered by a fire alarm.

SmartSequencing
SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.

Voltage Protection
Extreme Voltage Shutdown (EVS) safeguards from catastrophic under-voltage (under 80V sustained) or over-voltage (over 145V sustained) conditions. The EVS feature can be selectively enabled or disabled according to the preference of the user.

BlueBOLT Compatible
IP Control (Telnet or cloud-based BlueBOLT) via SmartSequencing (when connected to CN-1800S/CN-2400S with BB-RS232 Adaptor).

Diagnostic Lights
Diagnostic lights provide valuable system information including power quality.

20 Amp Output Current
20 amp maximum current capacity.

DIP Switch Customization
DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Furman Sound Contractor Series CN-20MP 20 Amp MiniPort
  • Furman Sound 15 Year Limited Warranty
