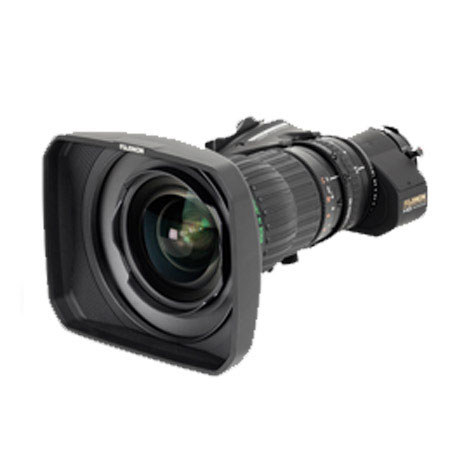

Fujinon HA14x4.5BEZD-T5D 4.5-63mm f/1.8-2.8 Super Wide Angle ENG/EFP Lens, 14x Zoom

The Fujinon HA14x4.5BEZD-T5D is a super wide angle ENG/EFP with 2.2x range extender. Digital servo zoom & focus for full servo studio control, robotics, jibs, tower cams, teleconferencing and other applications where remote control of zoom, focus and iris via RS-232 serial data or traditional analog control is desired. Optional zero backlash gearing and 16 bit encoders available for robotics and virtual applications. Remote control of the 2x extender is possible with the optional model ECU-2A remote extender module.

Digi Power
With broadcasting technology rapidly converting to digital, Fujinon has developed a new digital servo control system, Digi Power, to enhance the performance of its zoom lenses. State-of-the-art components including a 32-bit RISC processor in the lens, a CPU in each servo demand, optical encoders and high-speed serial communication devices, together with the newly developed digital control circuit, provide 13-bit accuracy in zoom and focus control as well as a variety of new functions. An RS232 connector in the lens provides a connection between the lens and a PC, or other control device, for external control. This function has made it possible to control the lens functions with the high degree of accuracy and reliability needed for virtual studio and other robotic applications and to raise the level for all production environments.

Digital Quick Zoom
Quick Zoom speed is improved to 0.7 seconds end to end. Quick Zoom provides for a rapid zoom movement to the telephoto position to check focus with the simple push of a button. Releasing the button returns the lens to the previously selected zoom position. Quick Zoom can now be performed remotely from the ERD-T22 and ERD-10A-D01.
