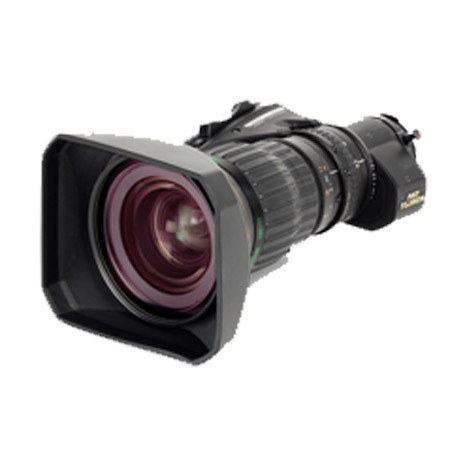

Fujinon HA16x6.3BEZD-T58 6.3-101mm f/1.8-2.9 Quickframe ENG Lens
See all Fujinon items

Fujinon HA16x6.3BEZD-T58 6.3-101mm f/1.8-2.9 Quickframe ENG Lens with Digital Servo for Focus & Zoom, 16x Zoom Ratio, 2x Extender

SKU: FUHA1663BT58
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Fujinon HA16X6.3BEZD-T58 Specifications

  • Camera Format

    2/3"

  • Focal Length

    1x: 6.3-101mm
    2x: 12.6-202mm

  • Zoom Range

    16x

  • Extender

    2x

  • Maximum Relative Aperture

    1: 1.8 (6.3 - 63mm)
    1: 2.9 (101mm)

  • Maximum Photometric Aperture T-No.

    1: 1.9 (6.3 - 63mm)
    1: 3.1 (101mm)

  • M.O.D. from the Image Plane

    0.69m (1.94')

  • M.O.D. from the Front of Lens

    0.4m (0.98')

  • Object dimensions at M.O.D. (16:9)

    1x: 6.3mm 712 x 400mm
    101mm 45 x 25mm
    2x: 12.6mm 356 x 200mm
    202mm 22 x 13mm

  • Angular field of view (16: 9)

    1x: 6.3mm 74deg.33' x 46deg.19'
    101mm 5deg.26' x 3deg.03'
    2x:12.6mm 41deg.40' x 24deg.90'
    202mm 2deg.43' x 1deg.32'

  • Macro

    Available

  • Filter thread

    M107 x 1

  • Dimensions (Diam. x L)

    95 x 238.5mm / 3.74 x 9.39"

  • Weight

    2.05kg / 4.5lbs (Lens hood excluded)

About Fujinon HA16X6.3BEZD-T58

The Fujinon HA16x6.3BEZD-T58 is a multi-use ENG Style with extender featuring a combination of wide angle and high zoom ratio. It offers digital servo zoom & focus for full servo studio control, robotics, jibs, tower cams, teleconferencing and other applications where remote control of zoom, focus and iris via RS-232 serial data or traditional analog control is desired. Optional zero backlash gearing and 16 bit encoders available for robotics and virtual applications. Remote control of the 2x extender is possible with the optional model ECU-2A remote extender module.

Fujinon HA16X6.3BEZD-T58 Features

  • Inner focus
  • Quick zoom
  • Zoom limit
