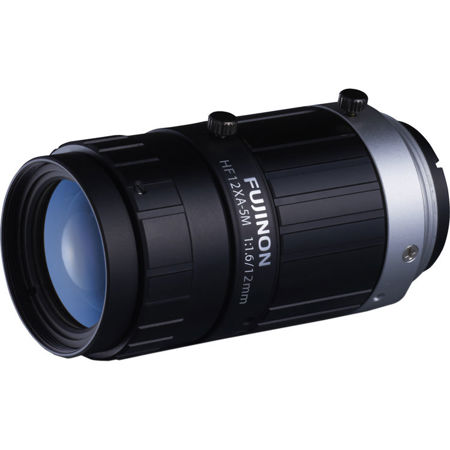

Fujinon HF12XA-5M 2/3" 12mm 5MP Machine Vision Lens

SKU: FUHF12XA5M MFR: HF12XA-5M
Earn VIP Reward Points

Key Features

  • Capture crisp images with this 12mm Fujinon lens, perfect for detailed surveillance.
  • Enhance your security system with a wide-angle lens, offering a broader view at 40.1 degrees.
  • Achieve optimal focus with manual adjustments, ranging from infinity to 100mm for clarity.
  • Durable construction ensures this machine vision lens withstands rigorous surveillance use.
  • Maximize image quality with a 5MP lens, providing clear footage for your security needs.
  • Compact and lightweight, this Fujinon lens integrates seamlessly into your camera setup.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$45.99

2 Year

$79.99

3 Year

$119.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Fujinon 12mm Specifications

  • Focal Length

    12mm

  • Aperture Range (F no.)

    F1.6-F16

  • Angle of view (H x V)

    40.1 Degree x 30.3 Degree

  • Focus Range

    Infinity-100mm

  • Operation Method

    Focus: Manual
    Iris: Manual

  • Filter Thread

    M25.5 x 0.5mm

  • Mount

    C Mount

  • Compatible Sensor Size (max.)

    2/3"

  • TV distortion (%)

    -1.3

  • External Diameter

    1.53 x 2.02" (29.5 x 51.5mm)

  • Weight (Approximate)

    2.78 oz (79g)

About Fujinon 12mm

Experience unparalleled precision and clarity with the FUJINON HF12XA-5M 2/3" 12mm 5MP Machine Vision Lens, a part of the esteemed HF-XA-5M series renowned for its "4D High Resolution" technology. This advanced feature ensures consistent, high-fidelity image quality across a range of working distances and aperture settings, effectively combating resolution degradation that can occur during adjustments.

Crafted for the demands of professional machine vision applications, this lens is optimized for use with industry-standard 2/3" sensors, boasting a pixel pitch of 3.45 micrometers, which is equivalent to 5 megapixels, at the preferred working distance of 50cm. The HF12XA-5M maintains its exceptional resolving power, with no less than a 4.4 micrometer pixel pitch (equivalent to 3 megapixels) across the entire sensor, from the center to the corners, ensuring sharp, detailed images in a variety of conditions.

The lens's "4D High Resolution" function is particularly beneficial when you need to maintain a wide aperture for faster shutter speeds without sacrificing image quality. This makes the FUJINON HF12XA-5M an ideal choice for high-speed inspections and applications where precision is paramount.

Designed with a compact form factor, this lens offers unparalleled installation flexibility. Its minimal footprint allows for seamless integration into machine vision systems, even when space is at a premium. The series includes six models with varying focal lengths, providing a range of options to meet specific imaging requirements.

The FUJINON HF12XA-5M stands out with its compact design, measuring just 29.5mm in external diameter, aligning with the dimensions of many compact machine vision cameras. This uniformity across the series ensures a streamlined appearance and function for your machine vision setup.

Installation convenience is at the forefront of the lens's design. Each model in the series, including the HF12XA-5M, features three screw holes on both the iris ring and the focus ring. This thoughtful addition allows users to select the most suitable hole for their specific installation needs, greatly enhancing the ease of setup and ensuring secure, reliable performance.

In summary, the FUJINON HF12XA-5M 2/3" 12mm 5MP Machine Vision Lens is a high-performance, versatile prime lens that delivers exceptional image quality, installation flexibility, and user convenience, making it an indispensable component for any sophisticated machine vision system.

Fujinon 12mm Features

  • Unique "4D High Resolution" performance to deliver edge-to-edge sharpness under a range of installation conditions
  • Compact design for installation versatility
  • Designed for installation convenience

Key Features

  • Capture crisp images with this 12mm Fujinon lens, perfect for detailed surveillance.
  • Enhance your security system with a wide-angle lens, offering a broader view at 40.1 degrees.
  • Achieve optimal focus with manual adjustments, ranging from infinity to 100mm for clarity.
  • Durable construction ensures this machine vision lens withstands rigorous surveillance use.
  • Maximize image quality with a 5MP lens, providing clear footage for your security needs.
  • Compact and lightweight, this Fujinon lens integrates seamlessly into your camera setup.

What's in the box:

  • Fujinon HF12XA-5M 2/3 " 12mm 5MP Machine Vision Lens
  • Fujinon 1 Year Warranty
