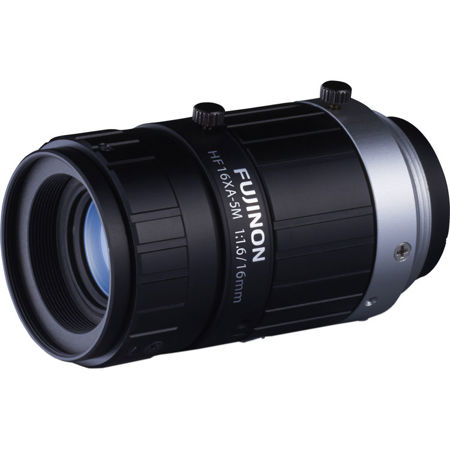

Fujinon HF16XA-5M 2/3" 16mm 5MP Machine Vision Lens

What sets the FUJINON HF-XA-5M series apart is its advanced "4D High Resolution" feature, designed to prevent resolution degradation when adjusting working distance or aperture value. This high-quality, durable machine vision lens series is designed with a compact form, making it ideal for various installation conditions on production lines.

The series boasts six models with different focal lengths, providing users the flexibility to select the perfect model tailored to their specific needs. These reliable lenses are compatible with the industry-standard 2/3" sensor with a 3.45 micro meter pixel pitch, equivalent to a 5-megapixel resolution, at the most commonly used working distance of 50cm.

The "4D High Resolution" function ensures consistent high-resolution performance, maintaining a resolving power of no less than 4.4 micro meter pixel pitch, equivalent to 3 megapixels, on a 2/3" sensor from the image center to all corners. This feature is particularly beneficial when setting the aperture wide open to achieve a faster shutter speed.

The compact design of the FUJINON HF6XA-5M, with a focal length of 6mm and an external diameter of just 39mm, makes it the world's smallest machine vision lens in its class. The other models in the series also feature a compact design, with an external diameter of 29.5mm, similar to the size of most compact machine vision cameras. This contributes to a more streamlined form factor for machine vision systems.

Designed with the user in mind, each lens in the series features three screw holes on both the iris ring (aperture) and the focus ring, offering users the flexibility to choose the best hole for their installation conditions. This thoughtful design feature enhances installation convenience, making the FUJINON HF-XA-5M series a versatile and advanced choice for machine vision and robotics applications.
