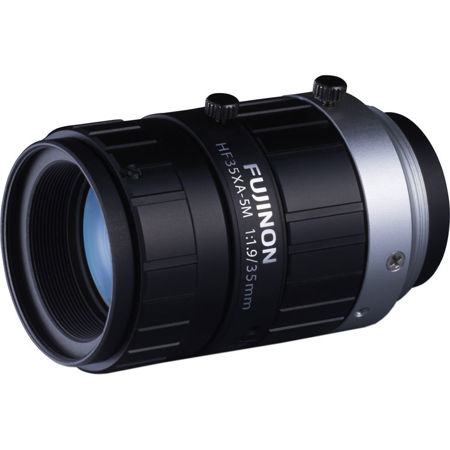

Fujinon HF35XA-5M 2/3" 35mm 5MP Machine Vision Lens

SKU: FUHF35XA5M

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Fujinon 35mm Specifications

  • Focal Length

    35mm

  • Aperture Range (F no.)

    F1.9-F16

  • Angle of view (H x V)

    14.2 Degree x 10.7 Degree

  • Focus Range

    Infinity-200mm

  • Operation Method

    Focus: Manual
    Iris: Manual

  • Filter Thread

    M25.5 x 0.5mm

  • Mount

    C Mount

  • Compatible Sensor Size (max.)

    2/3"

  • TV distortion (%)

    0.1

  • External Diameter

    1.53 x 1.63" (29.5 x 41.5mm)

  • Weight (Approximate)

    2.11 oz (60g)

About Fujinon 35mm

The FUJINON HF-XA-5M series features "4D High Resolution", which mitigates resolution degradation even when changing a working distance or aperture value. The lenses' compact design accommodates installation at a variety of conditions at production lines. The series is available in six models of various focal lengths, allowing users to choose the optimum model according to their usage.

The FUJINON HF-XA-5M series offers high-performance prime lenses, compatible with the industry-mainstream 2/3" sensor with a 3.45 micro meter pixel pitch (equivalent to 5 megapixels) at the working distance of 50cm, which is the most frequently-used distance among users. Even in other conditions, the lenses' "4D High Resolution function, mitigates resolution degradation when changing a working distance or aperture value.

It maintains their high resolving power of no less than 4.4 micro meter pixel pitch (equivalent to 3 megapixels) on a 2/3" sensor from the image center to all corners. This function perfectly matches when you want to set the aperture wide open to achieve a faster shutter speed. The lenses' compact form factor accommodates installation versatility, allowing users to, install a lens closely to an inspection object in an inspection apparatus with space constraints.

Features:

(1) Unique "4D High Resolution" performance to deliver edge-to-edge sharpness under a range of installation conditions
• Delivering high resolution of 3.45 micro meter pixel pitch (equivalent to 5 megapixels) on a 2/3" sensor at the working distance of 50cm, which is the most frequently-used distance among users.
• In other conditions achieving even edge-to-edge resolution of no less than 4.4 micro meter pixel pitch (equivalent to 3 megapixels) on a 2/3" sensor with "4D High Resolution" function, which mitigates resolution degradation even when changing a working distance or aperture value.

(2) Compact design for installation versatility
The FUJINON HF6XA-5M, with focal length of 6mm measures just 39mm in external diameter, the world's smallest size for machine vision lenses of this class. The other five models are also compactly designed with the external diameter of 29.5mm, which is about the same size as general compact machine vision cameras. The entire series contributes to achieving a compact form factor for machine vision systems.

(3) Designed for installation convenience
Three screw holes each are provided on the iris ring (aperture) and the focus ring. Users can choose the optimum hole according to their installation conditions, providing a high level of installation convenience.

Fujinon 35mm Features

  • Unique "4D High Resolution" performance to deliver edge-to-edge sharpness under a range of installation conditions
  • Compact design for installation versatility
  • Designed for installation convenience

Key Features

  • Capture crystal-clear images with this Fujinon 35mm lens, perfect for detailed surveillance.
  • Enhance your security system with a high-quality machine vision lens for precise monitoring.
  • Achieve optimal focus with manual controls, adjusting from infinity down to 200mm range.
  • This C-Mount lens offers broad compatibility, designed for up to 2/3" sensor sizes.
  • Ensure accurate surveillance footage with minimal TV distortion for reliable monitoring.
  • Compact & lightweight (2.11oz), this Fujinon lens integrates easily into existing setups.

What's in the box:

  • Fujinon HF35XA-5M 2/3 " 35mm 5MP Machine Vision Lens
  • Fujinon 1 Year Warranty
