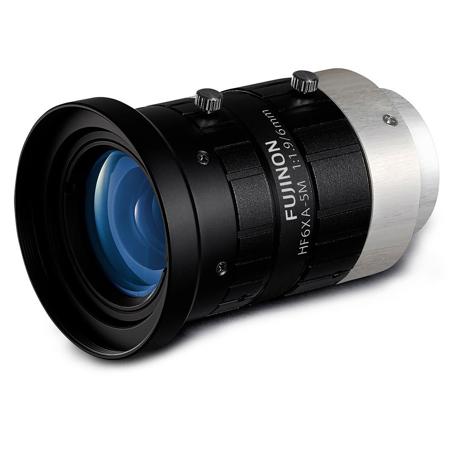

Fujinon HF6XA-5M 2/3" 6mm 5MP Machine Vision Lens

SKU: FUHF6XA5M MFR: HF6XA-5M
Earn VIP Reward Points

Key Features

  • Capture crystal-clear images with this 6mm Fujinon lens, perfect for detailed surveillance.
  • Achieve superior image quality with a 5MP lens, enhancing your security camera system.
  • Wide angle view (74.7° x 58.1°) ensures comprehensive coverage, minimizing blind spots.
  • Manual focus & iris controls offer precise adjustments for optimal surveillance clarity.
  • Compact & lightweight (3.52 oz) design allows for easy installation in tight spaces.
  • Durable C Mount lens construction ensures long-lasting performance for security needs.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$64.99

2 Year

$109.00

3 Year

$159.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Fujinon 6mm Specifications

  • Focal Length

    6mm

  • Aperture Range (F no.)

    F1.9-F16

  • Angle of view (H x V)

    74.7 Degree x 58.1 Degree

  • Focus Range

    Infinity-100mm

  • Operation Method

    Focus: Manual
    Iris: Manual

  • Filter Thread

    M37.5 x 0.5mm

  • Mount

    C Mount

  • Compatible Sensor Size (max.)

    2/3"

  • TV distortion (%)

    -2.9

  • External Diameter

    1.53 x 2.00" (39 x 51mm)

  • Weight (Approximate)

    3.52 oz (100g)

  • UPC Code

    16541305

About Fujinon 6mm

It's the Fujinon HF6XA-5M 2/3" 6mm 5MP Machine Vision Lens, a high-quality, durable, and reliable choice for machine vision and robotics applications. This advanced lens is part of the FUJINON HF-XA-5M series, renowned for its unique "4D High Resolution" feature that ensures consistent resolution quality, even when adjusting working distance or aperture value.

This versatile lens is designed to accommodate a variety of installation conditions on production lines, thanks to its compact design. With six models available in different focal lengths, users can select the optimal lens model based on their specific needs.

The Fujinon HF6XA-5M lens is compatible with the industry-standard 2/3" sensor, offering a 3.45 micro meter pixel pitch, equivalent to 5 megapixels, at the most commonly used working distance of 50cm. Its "4D High Resolution" function maintains a high resolving power of no less than 4.4 micro meter pixel pitch, equivalent to 3 megapixels, on a 2/3" sensor from the image center to all corners. This feature is particularly beneficial when setting the aperture wide open to achieve a faster shutter speed.

The compact form factor of this lens allows for installation versatility, even in inspection apparatus with space constraints. The Fujinon HF6XA-5M lens, with a focal length of 6mm, measures just 39mm in external diameter, making it the world's smallest machine vision lens in its class.

For added convenience, three screw holes are provided on both the iris ring (aperture) and the focus ring, allowing users to choose the best hole based on their installation conditions. This lens is not just a tool, but a testament to Fujinon's commitment to delivering high-performance, user-friendly solutions for machine vision and robotics applications.

Fujinon 6mm Features

  • Unique "4D High Resolution" performance to deliver edge-to-edge sharpness under a range of installation conditions
  • Compact design for installation versatility
  • Designed for installation convenience

Key Features

  • Capture crystal-clear images with this 6mm Fujinon lens, perfect for detailed surveillance.
  • Achieve superior image quality with a 5MP lens, enhancing your security camera system.
  • Wide angle view (74.7° x 58.1°) ensures comprehensive coverage, minimizing blind spots.
  • Manual focus & iris controls offer precise adjustments for optimal surveillance clarity.
  • Compact & lightweight (3.52 oz) design allows for easy installation in tight spaces.
  • Durable C Mount lens construction ensures long-lasting performance for security needs.

What's in the box:

  • Fujinon HF6XA-5M 2/3 " 6mm 5MP Machine Vision Lens
  • Fujinon 1 Year Warranty
