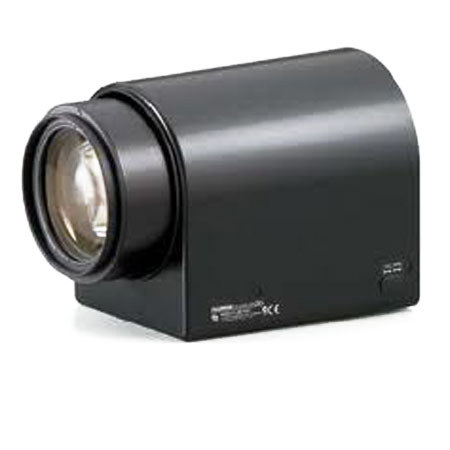

Fujinon 2/3" 11.5-253mm C-Mount Zoom Lens, F1.6-T2000 Iris Range
See all Fujinon items

Fujinon 2/3" 11.5-253mm C-Mount Motorized 22x Zoom Lens, F1.6-T2000 Iris Range

SKU: FUJ115BY41

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Fujinon 11.5-253mm Specifications

  • Mount

    C

  • Focal length

    11.5 mm - 253 mm (22x)

  • Focus

    Motor Drive

  • Iris Range

    F1.6 - T2000 (Equivalent to F2000)

  • Iris

    Auto (Video Type)

  • Zoom

    Motor Drive

  • Back Focal Distance (In Air)

    36.16 mm

  • Exit Pupil Position (From Image Plane)

    -103 mm

  • Angle of View

    2/3": 41deg. 52' x 32deg. 01'/2 x 1deg. 30'
    1/2": 31deg. 06' x 23deg. 34'/1deg. 27' x 1deg. 05'
    1/3":23deg. 34' x 17deg. 47'/1deg. 05' x 0deg. 49'

  • Object Dimensions

    2/3": 213x1660/101x75
    1/2": 1609x1207/73x55
    1/3": 1207x905/55x41

  • Back Focus

    36.16mm (in air)

  • Filter Thread

    M82 x 0.75

  • Weight

    5lbs / 2.27kg

0 Accessories for Fujinon 2/3" 11.5-253mm C-Mount Motorized 22x Zoom Lens, F1.6-T2000 Iris Range

About Fujinon 11.5-253mm

Engineered with a 3-motor drive system, the Fujifilm Fujinon H22x11.5B-Y41 high resolution C-mount lens offers a full range of motorized zoom, focus and iris operation. Quality construction, coupled with precision optics ensures corner to corner image sharpness through the entire focal spectrum with virtually no distortion, enabling the use of a single lens for a wide range of surveillance applications.

Fujinon 11.5-253mm Features

  • 3-Motor System: A 3-motor drive system provides precise, individual control over a broad range of zoom, focus and iris operation
  • Telephoto: Utilizes multi coated, precision optics to maintain corner-to-corner image quality over the entire focal spectrum while fully compensating for image distortion
  • Video Auto Iris: Iris operation is fully automated via an auto iris Video connection
  • Potentiometermeter: A built-in Potentiometer meter supports the preset-enabled specification
  • ND Filter: A built-in T2000 ND filter supports super sensitive cameras
  • Multiple Power Supply: Supports multiple power supplies for use with existing control systems

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 3-Motor System for precise, individual control
  • Telephoto w multi coated, precision optics
  • Video Auto Iris
  • Potentiometermeter
  • Built-in T2000 ND filter supports sensitive cameras
  • Multiple Power Supply

What's in the box:

  • Fujifilm Fujinon H22X11.5B-Y41 2/3 " 11.5-253mm C-Mount Motorized 22x Zoom Lens
  • Iris Control Cable
  • Connection Connector (14-Pin)
  • Fujifilm Warranty
