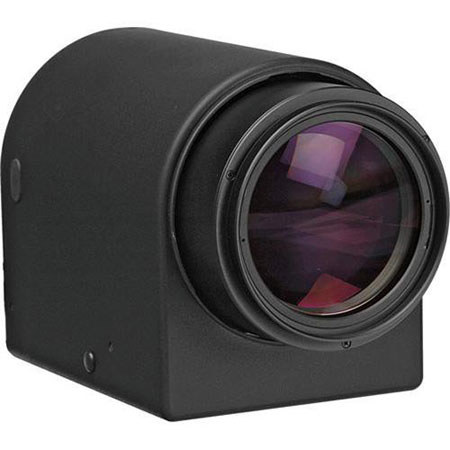

Fujinon Fujifilm Fujinon 1" 23-506mm C-Mount 22x Motorized Zoom Lens, Day/Night
See all Fujinon items

Fujinon 1" 23-506mm C-Mount 22x Motorized Zoom Lens, Auto Iris Video, Day/Night, Metal Mount, F3.1 - T3000 Iris Range

SKU: FUJ23R2DV41
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Fujinon 23-506mm Specifications

  • Mount

    C

  • Focal length

    23 mm - 506 mm (22x)

  • Focus

    Motor Drive

  • Iris Range

    F3.1 - T3000 (Equivalent to F3000)

  • Iris

    Auto (Video Type) or Remote (1)

  • Zoom

    Motor Drive

  • Back Focal Distance (In Air)

    39.54 mm

  • Exit Pupil Position (From Image Plane)

    -64 mm

  • Object Dimensions at M.O.D.

    1": 1611x1208 mm /73x55 mm
    2/3": 1108x831 mm
    1/2": 806x604 mm / 37x27 mm
    1/3": 604x453 mm / 27x21 mm

  • Angular Field of View

    1": 31deg.06' x 23deg.35'/ 1deg.27' x 1deg.05'
    2/3": 21deg.40' x 16deg.20' /1deg.00' x 0deg.45'
    1/2": 15deg.50' x 11deg.55' / 0deg.43' x 0deg.33'
    1/3": 11deg.55' x 8deg.57' / 0deg.32' x 0deg.24'

  • Focusing Range (From Front of the Lens)

    infinity - 3 m

  • Filter Thread

    M82 x 0.75 mm

  • Weight

    2.4 kg / 5.29 kg

0 Accessories for Fujinon 1" 23-506mm C-Mount 22x Motorized Zoom Lens, Auto Iris Video, Day/Night, Metal Mount, F3.1 - T3000 Iris Range

About Fujinon 23-506mm

The Fujifilm Fujinon 1" 23-506mm C-Mount 22x Motorized Zoom Lens incorporates a motorized system for precise, zoom, focus and iris operation and is ideal for surveillance applications requiring high quality long range viewing. Designed for 24-hour operation, this lens uses a Day/Night function for maximum light transmission in light levels ranging from visible to near infrared and is appropriate for use with Day/Night as well as conventional B/W or color CCTV cameras.

Fujinon 23-506mm Features

  • Motorized: A motorized drive system offers precise, zoom, focus and iris control
  • 22x: Equipped with a powerful 22x optical zoom, this lens is ideal for long range viewing applications
  • Day/Night: Designed for 24-hour operation with a Day/Night optical system enhancing image brightness in all lighting conditions and is appropriate for use with both infrared Day/Night as well as conventional CCTV cameras
  • Compact: Compact and lightweight design for easy integration with existing security systems
  • ND Filter: Built-in ND T3000 filter for super sensitive camera support
  • Auto Iris: Iris auto adjusts to meet changing lighting conditions and can operate from a remote location
  • Multi Power: Supports 6V, +/-6V, 12V, +/12V power inputs for compatibility with existing control systems
  • 1": Supports 1" photomultiplier tube cameras as well as 1/2" and 2/3" cameras

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Motorized drive system for precise control
  • Powerful 22x optical zoom
  • 24-hour Day/Night optical system
  • Compact design for integration w existing systems
  • Built-in ND T3000 filter for sensitive camera support
  • Iris auto adjusts to changing lighting

What's in the box:

  • Fujifilm Fujinon 1 23-506mm C-Mount 22x Motorized Zoom Lens
  • Iris Control Cable
  • Connection Connector (14-pin/ 8-pin)
  • Fujifilm Warranty
