Fujinon Fujifilm Fujinon 2.8-12mm CS Manual Varifocal Lens, F/1.4, 4.3x Zoom
See all Fujinon items

Fujinon 2.8-12mm CS-Mount Manual Varifocal Lens, F/1.4, 4.3x Zoom

SKU: FUJ3X28SA2

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Fujinon 2.8-12mm F/1.4 Specifications

  • Imager Size

    For 1/3" and 1/4" cameras

  • Mount Type

    CS

  • Focal Length

    2.8-12 mm (4.3x)

  • Aperture

    F1.4 - Close

  • Zoom

    Manual

  • Focus Operation

    Manual

  • Iris Operation

    Manual

  • Angle of View

    1/3" Wide: 100deg.02' x 74deg.03'
    1/3" Tele: 23deg.26' x 17deg.36'
    1/4" Wide: 74deg.03' x 55deg.06'
    1/4" Tele: 17deg.36' x 13deg.13'

  • Minimum Object Distance (M.O.D.)

    Infinity - 0.3m

  • Object Dimensions

    1/3" Wide: 753x476
    1/3" Tele: 131x98
    1/4" Wide: 476x329
    1/4" Tele: 98x73 (HxV at MOD in mm)

  • Back Focal Distance

    7.83 mm (in air)

  • Exit Pupil Position

    455 mm (from image plane)

  • Dimensions (Dia.xL)

    1.8x2.6" (46x66 mm)

  • Weight

    2.1 oz (80g)

About Fujinon 2.8-12mm F/1.4

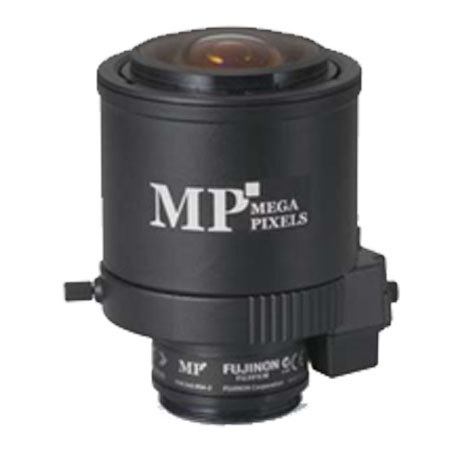

The Fujifilm Fujinon 3 MP Varifocal Lens (2.8-12mm, 4.3x Zoom) has a wide aperture of f/1.4 and offers detailed imagery even at low-intensity lighting. Designed for 24-7 security applications, the Day & Night lens offers a 4.3x zoom and a focal length that ranges from 2.8-12mm and allows for manual operation of the zoom, focus and iris.

Equipped with a glass that offers low dispersion and a high refractive index, the high-accuracy aspheric lens maximizes optical performance. A CS-type lens mount (metal) is integrated into the lens assembly and the lens is compatible with 1/3" and 1/4" type image sensors.

Fujinon 2.8-12mm F/1.4 Features

  • 3 MP lens with an iris range of f1.4 that offers optimum performance even at low-intensity lighting
  • Focal length ranges from 2.8-12 mm and includes a 4.3x zoom
  • Uses manual zoom, focus and iris operation
  • High-accuracy aspheric lens with a glass having a low dispersion and high-refractive index for optimum performance
  • Equipped with a CS-type metal mount
  • Compatible with 1/3" and 1/4" type image sensors
  • Viewing angle (1/4")- 74deg.03' x 55deg.06' (wide) and 17deg.36' x 13deg.13' (tele)
  • Minimum focus (1/4") - 476 x 329 (wide) and 98 x 73 (tele)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Uses manual zoom, focus and iris operation
  • Equipped with a CS-type metal mount
  • Compatible with 1/3 and 1/4 type image sensors
