Fujinon Fujifilm Fujinon 1/3" 6-72mm 12x Motorized Zoom Lens
See all Fujinon items

Fujinon 1/3" 6-72mm 12x Motorized Zoom Lens with DC Auto Iris and ND filter, CS-Mount, F1.5 - T400

SKU: FUJ6ASE2
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Fujinon 6-72mm Specifications

  • Mount

    CS

  • Focal length

    6 mm - 72 mm (12x)

  • Focus

    Motor Drive

  • Iris Range

    F1.5 - T400 (Equivalent to F400)

  • Iris

    Auto (DC Type) (1)

  • Zoom

    Motor Drive

  • Back Focal Distance (In Air)

    11.69 mm

  • Exit Pupil Position (From Image Plane)

    -6028 mm

  • Object Dimensions at M.O.D.

    1/3": 1003x753mm / 84x63mm
    1/4": 752x565mm / 63x47mm

  • Angular Field of View

    1/3": 43deg.36' x 33deg.24' / 3deg.49' x 2deg.52'
    33deg.24' x 25deg.22' / 2deg.52' x 2deg.09'

  • Focusing Range (From Front of the Lens)

    infinity - 1.3 m

  • Filter Thread

    M55 x 0.75 mm

  • Coil Resistance

    Drive Coil: 1800 Ohms
    Damping Coil: 720 Ohms

  • Current Consumption

    22 mA (Max.) at DC 4V

  • Weight

    330g / 11.64oz

About Fujinon 6-72mm

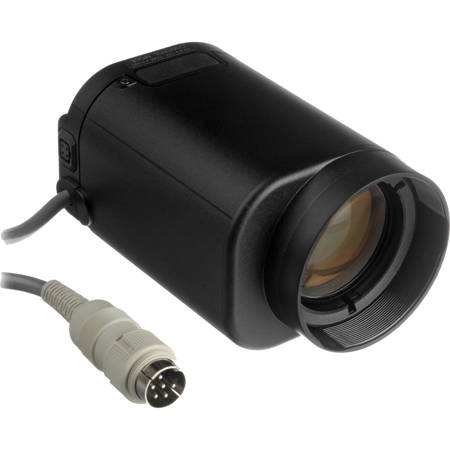

Fujifilm Fujinon Y12x6A-SE2 1/3" 6-72mm 12x Motorized Zoom Lens is a high quality zoom lens for industrial video cameras used in security and surveillance applications. This lens has a 12x varifocal zoom that provides both narrow and wide angle views in a single unit. It can be mounted on any CS mount camera with 1/3-inch or 1/4-inch imager systems. The built-in ND filter allows the lens to have greater utility in very bright light environments.

Fujinon 6-72mm Features

  • CS- Lens Mount: The Y12x6A-SE2 is a CS-mount lens that can be mounted on any 1/4 or 1/3 inch CCD camera system. The auto iris function of the lens accepts power from the camera through the iris control cable which is included
  • Variable Focal Lengths: This lens is applicable to any CS-mount camera with either 1/3-inch or 1/4-inch imagers. On 1/3-inch CCD (or CMOS chip) camera the Y12X6A-SE2 will capture a 44deg. wide angle (6 mm) and approximately 4deg. full zoom horizontal (72 mm) angle views
  • Built In Neutral Density Filter: This lens has a built-in ND filter that effectively extends the aperture down to f/400. With this configuration the camera can safely peer directly into very bright lights, flames, torches or even the sun

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • CS- Lens Mount
  • Variable Focal Lengths
  • Built In Neutral Density Filter

What's in the box:

  • Fujifilm Fujinon Y12X6A-SE2 1/3 6-72mm 12x Motorized Zoom Lens
  • Iris Control Cable
  • Conversion Cable (6-pin to 4-pin)
  • Connection Connector (4-pin & 6-pin)
  • Fujifilm Warranty
