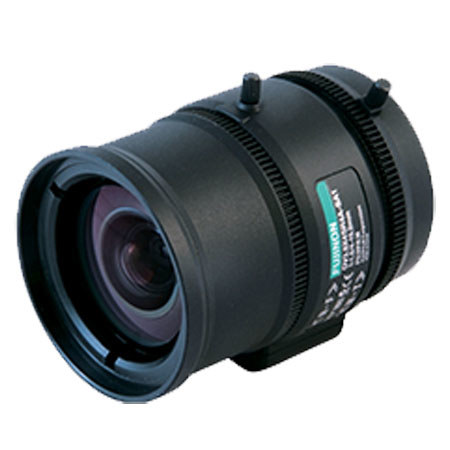

Fujinon 1/1.8" & 1/2" 4-15.2mm C-Mount Vari-focal Lens
See all Fujinon items

Fujinon 1/1.8" & 1/2" 4-15.2mm C-Mount Vari-focal Lens, 3MP, F1.5 - T360 Iris Range, Day & Night Version, 180mm Exit Pupil Position

SKU: FUJ8X4SR4A1
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Fujinon 4-15.2mm F/1.5 Specifications

  • Mount

    C

  • Focal length

    4 mm - 15.2 mm (3.8x)

  • Focus

    Manual

  • Iris Range

    F1.5 - T360

  • Iris

    Manual

  • Zoom

    Manual

  • Back Focal Distance (In Air)

    11.01 mm

  • Exit Pupil Position (From Image Plane)

    180 mm

  • Object Dimensions at M.O.D

    4: 3 Aspect Ratio:
    1/1.8": 801x502mm/153x114 mm
    1/2": 662x434mm / 138x103 mm
    1/3": 434x305 mm/103x77 mm
    1/4": 305x221mm/ 77x57 mm
    16: 9 Aspect Ratio:
    1/1.8": 957x384 mm/168x93 mm
    1/2": 770x338 mm/150x84 mm
    1/3": 488x243 mm/112x63 mm
    1/4": 338x178 mm/84x47 mm

  • Angular Field of View

    4: 3 Aspect Ratio:
    1/1.8": 103deg.27' x 77deg.03' / 27deg.23' x 20deg.34'
    1/2": 92deg.42' x 69deg.08' / 24deg.38' x 18deg.29'
    1/3": 69deg.08' x 51deg.40' / 18deg.29' x 13deg.53'
    1/4": 51deg.40' x 38deg.41'/13deg.53' x 10deg.25'
    16: 9 Aspect Ratio:
    1/1.8": 113deg.02' x 62deg.46'/29deg.48' x 16deg.49'
    1/2": 101deg.14' x 56deg.21'/26deg.49' x 15deg.07'
    1/3": 75deg.25' x 42deg.09'/20deg.08' x 11deg.21'
    1/4": 56deg.21' x 31deg.34'/15deg.07' x 8deg.31'

  • Focusing Range (From Front of the Lens)

    infinity - 0.3 m

  • Coil Resistance

    Drive Coil: 190 Ohms
    Damping Coil: 500 Ohms

  • Current Consumption

    23 mA (Max.) at DC 4V

  • Weight

    120 g / 4.23 oz

0 Accessories for Fujinon 1/1.8" & 1/2" 4-15.2mm C-Mount Vari-focal Lens, 3MP, F1.5 - T360 Iris Range, Day & Night Version, 180mm Exit Pupil Position

About Fujinon 4-15.2mm F/1.5

The Fujifilm Fujinon 1/1.8" & 1/2" 4-15.2mm C-Mount Vari-focal Lens features high image-quality monitoring with optical performance supporting 3 megapixels. Advanced design engineering and special optic glass adopted, best suited for color, Black & White and Day and Night cameras.f4-15.2mm, 3.8x zooming application compatible lens. Designed to maximize optical performance with high-accuracy aspheric lens, low-dispersion glass and high refractive-index glass. Built-in ND filter of T360, supporting high sensitivity cameras.
