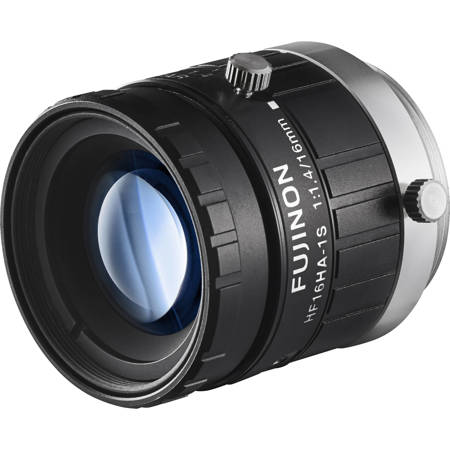

Fujinon HF16HA-1S 1.5MP 16mm C Mount Lens with Anti-Shock & Anti-Vibration for 2/3" Sensors

SKU: FUJHF16HA1B MFR: HF16HA-1S
$180.00
Earn VIP Reward Points

Key Features

  • Capture clear surveillance footage with this 16mm Fujinon C Mount Lens.
  • Enhance your security system's image quality with this 1.5MP lens.
  • Get superior surveillance with anti-shock & anti-vibration features.
  • Achieve optimal zoom capability for detailed monitoring at any distance.
  • Durable build ensures long-lasting performance for reliable security.
  • Affordable surveillance lens upgrade without sacrificing image clarity.
See More Product Details
Special Order?Estimated to Ship: 08/13/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$18.99

2 Year

$30.99

3 Year

$46.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Fujinon HF16HA-1S Specifications

  • Focal length

    16mm

  • Iris range (F. no)

    F1.4-F16

  • Applicable lens

    For 2/3" to 1/3" cameras

  • Applicable for pixel pitch

    6.2Mum

  • Object Dimensions at M.O.D.

    2/3":
    63 x 47mm
    1/2":
    46 x 34mm
    1/3":
    34 x 26mm

  • Angle of view

    2/3":
    30 deg. 45' x 23 deg. 18'
    1/2":
    22 deg. 37' x 17 deg. 04'
    1/3":
    17 deg. 04' x 12 deg. 50'

  • Minimum object distance (M.O.D.)

    0.1m

  • Working Distance

    Infinity to 100mm

  • Operation of focus

    Manual

  • Operation of iris

    Manual

  • Filter thread

    M25.5 x 0.5mm

  • Mount

    C-mount

  • TV distortion

    -0.0087

  • Dimensions

    Dia. 29.5 x 29.5mm (1.16 x 1.16")

  • Weight

    40g (1.41 oz) Approx.

  • UPC Code

    16593839

About Fujinon HF16HA-1S

Under the Fujinon HF-HA-1S series, discover a high-resolution, 1.5-megapixel C-mount lens designed specifically for 2/3" sensors. This lens boasts a 16mm focal length and an impressive 6.2m pixel pitch, ensuring sharp, clear images in a variety of settings.

The standout feature of this lens is the Fujinon's proprietary "Anti-shock & Vibration" technology. This unique feature provides superior vibration mitigation and shock absorption, making the lens an excellent choice for machine vision and robotics applications where stability is paramount.

Despite these robust features, the lens maintains a compact form factor, with an outer diameter of just 29.5mm. This compact design ensures compatibility with a wide range of cameras and imaging systems, enhancing its versatility.

The lens also features a low F-number of F1.4, which guarantees clear, bright images even in low-light conditions. This makes it a reliable choice for various settings and environments.

Incorporating an original mechanical design, the Fujinon HF-HA-1S lens offers exceptional vibration-resistance and impact-resistance. This durability, combined with its high-quality optics and advanced anti-shock technology, makes it a versatile, reliable, and affordable choice for professionals in the field of machine vision and robotics.

Fujinon HF16HA-1S Features

  • This lens is designed with quality glass and advanced anti-reflective coatings to produce detailed images in harsh environments. Fujinon developed this lens to work on cameras with up to 1.5 megapixel sensors
  • The HF16HA-1B is a completely manual C-mount lens designed for high quality images in potentially difficult applications. Often the manufacturing process can shake or vibrate machinery which can be an issue that needs to be managed when using video for quality control and production
  • The HF16HA-1B delivers a narrow angle of view so you'll see exactly what you need to see and nothing more. This lens produces a 17deg. horizontal angle of view, with a 12deg. vertical angle

Key Features

  • Capture clear surveillance footage with this 16mm Fujinon C Mount Lens.
  • Enhance your security system's image quality with this 1.5MP lens.
  • Get superior surveillance with anti-shock & anti-vibration features.
  • Achieve optimal zoom capability for detailed monitoring at any distance.
  • Durable build ensures long-lasting performance for reliable security.
  • Affordable surveillance lens upgrade without sacrificing image clarity.

What's in the box:

  • 16mm F1.4-F16
