Furman Sound Classic Series PL-PRODMC 20A Power Conditioner
See all Furman Sound items

Furman Sound Classic Series PL-PRODMC 20A Power Conditioner with Voltmeter/Ammeter

SKU: FUPLPRODMC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?STEVE M : Yes it was the same model but a slight upgrade to the one I was looking at but had an even better price on it. Plus I have had good experiences with Adorama in the past.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Furman Sound Classic Series PL-PRODMC 20A Power Conditioner Specifications

  • Maximum Output Current

    20 amps

  • Line Cord

    Captive 3/12 AWG, 10 ft. black cord with NEMA 20 plug

  • Pull-out Lights

    Two multi-LED, dimmable lamps

  • BNC Socket w/Switch

    Rear rack lamp, 12VAC 500MA maxx (lamp not included)

  • Operating Voltage

    90 to 139 VAC

  • Spike Protection Mode

    Line to neutral, zero ground leakage

  • Spike Clamping Voltage

    188 VAC peak @ 3,000 Amps

  • Response Time

    1 nanosecond

  • Maximum Surge Current

    6,500 Amps

  • Noise Attenuation

    10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz

  • Power Consumption

    12 watts

  • Safety Listing

    cTUVus

  • Dimensions (W x D x H)

    19 x 10.5 x 1.75" (48.3 x 26.7 x 4.4 cm)

  • Weight

    12 lbs. (5.4 kg)

  • UPC Code

    654061028000

About Furman Sound Classic Series PL-PRODMC 20A Power Conditioner

The Furman Sound Classic Series PL-PRODMC 20A Power Conditioner brings superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman's revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT) and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge suppressors.

Furman Sound Classic Series PL-PRODMC 20A Power Conditioner Features

  • Surge Protection: Furman's exclusive SMP technology provides the highest level of surge & spike protection available
  • Noise Filtration: LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity
  • Voltage Protection: Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions
  • Pull-out Lights: Dual smooth track retractable LED lights illuminate equipment in your rack
  • Diagnostic Lights: LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised
  • USB Charger: Front panel convenience charger allows you to charge most media devices or power a USB lamp
  • Voltmeter / Ammeter: Large digital voltmeter / ammeter, with discrete dimmer button, displays line voltage and true RMS current draw
  • Isolated Banks: Isolated outlet banks minimize inter-component interference and noise contamination

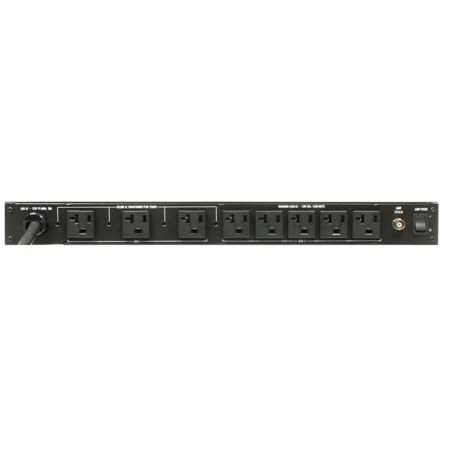

  • Wall Wart Spacing: Three widely spaced outlets accommodate bulky AC power transformers
  • 20 AMP Rating: 20 Amp rating featuring a high inrush magnetic circuit breaker for added protection
  • Nine Total Outlets: Nine total outlets (8 rear panel outlets and one front panel convenience outlet)
  • BNC Lamp Connector: Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination
