Fujinon XA4X7.5BMD-D3R 7.5-30mm f/2.8 QF Lens with Servo for Zoom & Focus, 4x Zoom Ratio, 16 Bit Encoder

SKU: FUXA4X75BD3R

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Fujinon XA4X7.5BMD-D3R Specifications

  • Format

    2.3" Sensors

  • Focal Length

    7.5 - 30mm

  • Zoom Ratio

    4x

  • Maximum Aperture

    f/2.8 (T3.1)

  • MOD From Front of Lens

    1.48' (0.45m)

  • Angular Field of View (16:9)

    7.5mm: 65deg.11' x 39deg.32'
    30mm: 18deg.10' x 10deg.16'

  • Filter Thread

    M52 (0.75 pitch)

  • Encoders

    16 Bit Encoder

  • Weight

    0.99lbs / 0.45kg

About Fujinon XA4X7.5BMD-D3R

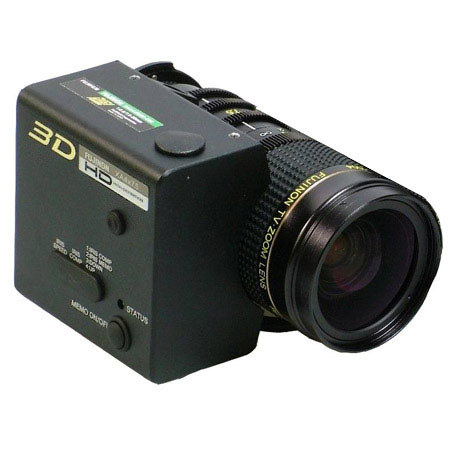

The Fujinon XA4x7.5BMD-D3R 7.5-30mm f/2.8 QF Lens features a 16 bit encoder and motor drive, which provides the precision focus and zoom synchronization that stereoscopic rigs demand. The Fujinon XA4x7.5BMD-D3R provides coverage for 2/3" sensors and renders a 35mm equivalent angle-of-view of approximately 29.5-118mm. This model is intended to be configured as the system's "right eye."

Fujinon XA4X7.5BMD-D3R Features

  • 7.5-30mm Focal length for 2/3" sensors
  • Fast f/2.8 (T3.1) maximum aperture
  • Built-in 16 bit encoder
  • Motor drive for full servo control
  • 35mm equivalent to 29.5-118mm
  • Stereoscopic "right eye"

Key Features

  • 7.5-30mm Focal length for 2/3 sensors
  • Fast f/2.8 (T3.1) maximum aperture
  • Built-in 16 bit encoder
  • Motor drive for full servo control
  • 35mm equivalent to 29.5-118mm
  • Stereoscopic right eye
