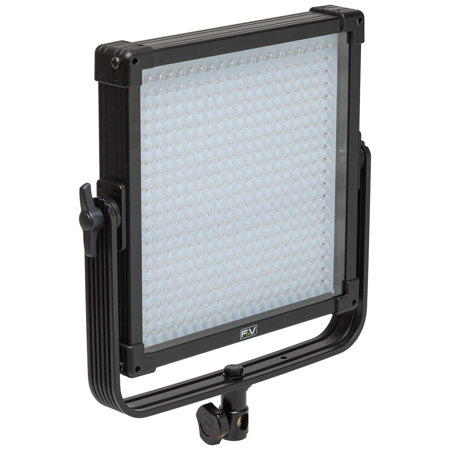

F & V K4000 SE 1x1 V-Mount Bi-Color LED Studio Panel Light

SKU: FVK4000SSE

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

F & V K4000 SE Specifications

  • Beam Angle

    50 deg.

  • White Light

    Bi-Color (3200 - 5600K) Continuously variable correlated color temperature

  • Color Temperature Tolerance

    +/-200K (nominal)

  • Color Rendition

    TLCI 95-99 (97 +/-2), CRI 93-97 (95 +/-2)

  • Dimming

    0-100% Continuous

  • Control

    On-Board Controller

  • Estimated LED Lifetime

    50,000 hours (15 years of average use)

  • Power Voltage Range

    10-18 V DC

  • Input Current Range

    Max. 2.62A at 10V/ 1.46A at 18V

  • Power Consumption

    25.65 W Nominal, 26.2 W Maximum

  • Battery Option

    1x V-mount Battery Plate Built in
    3-stud Gold Mount Plate

  • Thermal Design

    Silent Passive Cooling

  • Mounting

    16mm/28mm (0.63"/1.10") Combo Pin (Baby 5/8"/ Junior 1-1/8" combo pin)

  • Ambient Temperature Operation

    -20 to 45 deg. C (-4 to 113 deg. F)

  • Protection Class

    IP 20

  • Photometrics (lux)

    At 5600K:
    1m: 1534 lux
    2m: 384 lux
    3m: 171 lux

    At 3200K:
    1m: 1332 lux
    2m: 333 lux
    3m: 148 lux

  • Photometrics (fc)

    At 5600K:
    1m: 143 fc
    2m: 36 fc
    3m: 16 fc

    At 3200K:
    1m: 124 fc
    2m: 31 fc
    3m: 14 fc

  • Certifications

    CE (EMC, LVD, RoHS, REACH), ISO9001:2000

  • Weight

    2.3kg (5.07 lbs)

  • UPC Code

    6949773304127

About F & V K4000 SE

The K4000S SE Bi-Color Studio Panel light sports 200 daylight balanced LEDs and 200 tungsten balanced LEDs, allowing for seamless transition of white balance between 5600K to 3200K. The light offers 1534 Lux at 1 meter with full daylight and 1332 Lux at 1 meter with full tungsten. Carefully selected LEDs are put through multiple tests and evaluations to ensure perfect color balance and diode matching. This offers an absolute pure color consistency between LEDs and a TLCI of 97. The Milk-White Diffusion Filter packaged with our K4000S SE, is a translucent white diffusion filter that helps create a single light source. Not only does this offer an ultra-soft light but creates just a single shadow.

Unlike most 1'x1' panels with open face LED sources which have the tendency for each diode to create cross-angled shadows, the Milk-White Diffusion Filter eliminates this problem, giving you an ultra-soft bright light source. The light features new push-button accessory mounts which have allowed us to expand the accessory options to include grids, barn doors and filter holders. (All sold separately) Accessories simply snap onto the front of the light for secure mounting. To remove the items, push in the button on each corner and the accessory is released.

There are several modules (sold separately) available to control multiple lights. The SmartSync Control Circuit Module allows multiple K4000 SE lights to be linked in series with standard CAT5 Cables. The DMX 512 Module will allow the lights to be controlled via a DMX control board. The Wi-Fi module allows for wireless control of the lights through the optional remote or in the near future by iPhone app through the upcoming F&V Wi-Fi router. Perfect for professionals looking to gain complete control over their studio lighting rigs, the K4000 Daylight Panel offers exceptional light quality at an affordable price.

Vibrant Color Reproduction
With a TLCI of up to 99 (97+/-2) and a CRI of up to 97 (95+/-2). the SE fixtures raise the color reproduction to new heights, representing colors truthfully, neutral and vibrant.

Increased Brightness
An advanced design results in even more brightness than previous generations could achieve. Yet also the new Special Editions maintain a wide beam angle to not sacrifice softness for brightness.

New Attachment System
Incorporating the new F&V attachment system for light shaping accessories, the SE fixtures are compatible to the full range of tools like barndoors, honeycomb grids, diffusors, filter holders and softboxes.

What's in the box:

  • F & V 1x K4000 SE 1x1 V-Mount Bi-Color LED Studio Panel Light
  • Milk-White Diffusion Filter
  • V-Mount AC Power Adapter
  • Power Cable
  • F & V 1 Year Limited Warranty
