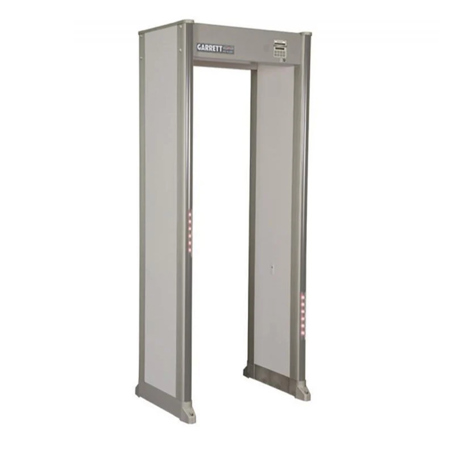

Garrett PD 6500i Series Walk-Through Metal Detector, 30" Interior Passageway

SKU: GA1168414

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Garrett PD 6500i Series Walk-Through Metal Detector, 30" Interior Passageway Specifications

  • Operating Temperatures

    -4deg.F (-20deg.C) to + 158deg.F (70deg.C); Humidity - To 95% noncondensing

  • Power

    Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 55 watts; no rewiring, switching or adjustments required. Power supply meets UL, CSA, TUV and VDE standards

  • Weatherproofing/Foreign Standards

    Meets IP 55, IEC Standard. "Degrees of Protection provided by Enclosures," IEC 529

  • Target Pinpointing Lights

    Thirty-three (33) distinct zones are displayed with two (2) independent columns of LEDs located on exit side of PD 6500i

  • Programs

    Eighteen (18) independent programs designed to meet all installation specific requirements including European Airports and TSA's Enhanced Metal Detector (EMD) requirements for all U.S. airports

  • Multi-Unit and Multi-Brand Compatibility

    2,300 selectable operating frequencies and multiple channels allow the PD 6500i to operate in close proximity to other PD 6500is as well as with non-Garrett walk-through

  • Interference Suppression

    Advanced analog and digital filtering "as well as adjustable operating frequencies "eliminate the potential effects from x-ray units, radios and other electrical interference sources

  • Traffic Counter

    Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage

  • Random Alarm Feature

    Provides ability to randomly alarm a selected percentage of non-alarming persons; adjustable from 0 to 50 percent

  • Alarms

    Audible tone and volume adjustable. Bright LED visual alarm

  • Pacing Lights

    International symbols located at entrance

  • Tamper-Proof

    All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics

  • Control Outputs

    Solid state switches (low voltage AC or DC) for operating external alarms and control devices

  • Construction

    Attractive scratch and mar-resistant laminate. Detection Heads and Support - Heavy duty aluminum

  • Passageway Interior Dimensions

    30" x 23" x 80"/76.2 x 58.42 x 203.2 cm (W x D x H)

  • Passageway Exterior Dimensions

    35" x 27" x 87" /88.9 x 68.58 x 220.98 cm(W x D x H)

  • UPC Code

    786156003569

About Garrett PD 6500i Series Walk-Through Metal Detector, 30" Interior Passageway

Under the banner of Garrett, a renowned name in the security industry, the PD 6500i Series 30" Walk-Through Metal Detector stands as a testament to high-tech, efficient, and accurate security solutions. This durable and portable device is engineered with superior pinpoint technology and unparalleled discrimination features, setting it apart as an industry leader.

Designed to facilitate maximum patron throughput without compromising on security, the PD 6500i is equipped with an exclusive multiple target pinpointing system. This advanced system features 33 distinct zones, ensuring comprehensive coverage of the left, center, and right sides of the body, from head to toe. This broad coverage allows for the precise detection of metal objects, enhancing the security of your premises.

To ensure smooth and efficient traffic flow, the PD 6500i incorporates entry pacing lights. These lights display easy-to-view symbols, guiding users through the detector and maintaining a steady flow of traffic.

The PD 6500i Walk-Through Metal Detector is not only easy to install for quick setup but also features both audible and visual LED lights. These indicators signal when a metal object has been detected, providing immediate feedback to security personnel.

In summary, the Garrett PD 6500i Series 30" Walk-Through Metal Detector is a reliable, high-tech solution for any security-conscious environment, offering comprehensive coverage, precise detection, and efficient operation.

Garrett PD 6500i Series Walk-Through Metal Detector, 30" Interior Passageway Features

  • Easy to assemble, using only 8 screws and 3 internal cable connections
  • 33 distinct zones for full target coverage on the left, center and right side of the body from head to toe
  • Audible alarm and visual LED lights signal when a target has been detected
  • LCD display, alarm lights, LED bar graphs and control touchpad's plus all wiring, connections and electronics are integrated into a single, lockable overhead compartment which eliminates exposure of wires and external control box
  • Entry pacing lights which allow smooth, efficient traffic flow with easy-to-view eye-level symbols on the entrance side of each panel
  • Dual detection with transmitter and receivers that scans from both sides for superior detection, uniformity and protection
  • Multi-dimensional coil design provides unmatched detection of potentially lethal metal items such as guns, knives and other flat and rod-shaped weapons regardless of location and orientation
  • Directional counter with four settings for patron counting (forward, reverse, subtraction reverse and bi-directional)
  • Advanced broadband detection technology that provides superior target analysis, ferrous and non-ferrous weapons detection, discrimination and higher patron throughput
  • Superior versatility designed for airports, courthouses, prisons, schools, facilities, special events, mass transit, loss prevention and many other applications
  • Can be mounted using the optional adhesive floor mounting kit, which can be used to protect valuable flooring surfaces while preventing unit movement

Key Features

  • High-tech Garrett PD 6500i Series 30" Walk-Through Metal Detector for enhanced security
  • Features superior pinpoint technology and unmatched discrimination features for precise detection
  • Equipped with 33 distinct zones for comprehensive target coverage from head to toe
  • Incorporates entry pacing lights for smooth and efficient traffic flow
  • Easy to install with quick setup, ideal for various security-conscious environments
  • Audible and visual LED indicators signal immediate detection of metal objects

What's in the box:

  • Installation Instructions
  • Garrett Warranty
