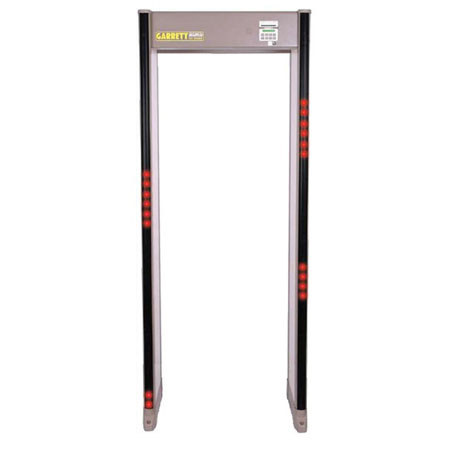

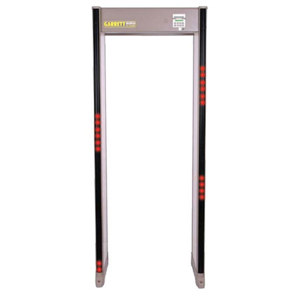

Garrett PD 6500i Series Walk-Through Metal Detector, 28.5" Interior Passageway

SKU: GA1168428

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Garrett PD 6500i Series Walk-Through Metal Detector, 28.5" Interior Passageway Specifications

  • Operating Temperatures

    -4deg.F (-20deg.C) to + 158deg.F (70deg.C); Humidity - To 95% noncondensing

  • Power

    Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 55 watts; no rewiring, switching or adjustments required. Power supply meets UL, CSA, TUV and VDE standards

  • Weatherproofing/Foreign Standards

    Meets IP 55, IEC Standard. "Degrees of Protection provided by Enclosures," IEC 529

  • Target Pinpointing Lights

    Thirty-three (33) distinct zones are displayed with two (2) independent columns of LEDs located on exit side of PD 6500i

  • Programs

    Eighteen (18) independent programs designed to meet all installation specific requirements including European Airports and TSA's Enhanced Metal Detector (EMD) requirements for all U.S. airports

  • Multi-Unit and Multi-Brand Compatibility

    2,300 selectable operating frequencies and multiple channels allow the PD 6500i to operate in close proximity to other PD 6500is as well as with non-Garrett walk-through

  • Interference Suppression

    Advanced analog and digital filtering "as well as adjustable operating frequencies "eliminate the potential effects from x-ray units, radios and other electrical interference sources

  • Traffic Counter

    Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage

  • Random Alarm Feature

    Provides ability to randomly alarm a selected percentage of non-alarming persons; adjustable from 0 to 50 percent

  • Alarms

    Audible tone and volume adjustable. Bright LED visual alarm

  • Pacing Lights

    International symbols located at entrance

  • Tamper-Proof

    All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics

  • Control Outputs

    Solid state switches (low voltage AC or DC) for operating external alarms and control devices

  • Construction

    Attractive scratch and mar-resistant laminate. Detection Heads and Support - Heavy duty aluminum

  • Passageway Interior Dimensions

    28.5" x 23" x 80"/72.39 x 58.42 x 203.2 cm (W x D x H)

  • Passageway Exterior Dimensions

    33" x 27" x 87" /83.82 x 68.58 x 220.98 cm (W x D x H)

About Garrett PD 6500i Series Walk-Through Metal Detector, 28.5" Interior Passageway

The Garrett PD 6500i Series 28.5" Walk-Through Metal Detector is the industry leader with superior pinpoint technology and unmatched discrimination features. Designed for maximum patron output without compromising security, the PD 6500i offers exclusive multiple target pinpointing with 33 distinct zones for full target coverage on the left, center and right side of the body from head to toe. Entry pacing lights allows smooth efficient traffic to flow through with easy-to-view symbols. The PD 6500i Walk-Through Metal Detector is easy to install for quick setup and has audible and visual LED lights that signal when a target has been detected.

Garrett PD 6500i Series Walk-Through Metal Detector, 28.5" Interior Passageway Features

  • Easy to assemble, using only 8 screws and 3 internal cable connections
  • 33 distinct zones for full target coverage on the left, center and right side of the body from head to toe
  • Audible alarm and visual LED lights signal when a target has been detected
  • LCD display, alarm lights, LED bar graphs and control touchpad's plus all wiring, connections and electronics are integrated into a single, lockable overhead compartment which eliminates exposure of wires and external control box
  • Entry pacing lights which allow smooth, efficient traffic flow with easy-to-view eye-level symbols on the entrance side of each panel
  • Dual detection with transmitter and receivers that scans from both sides for superior detection, uniformity and protection
  • Multi-dimensional coil design provides unmatched detection of potentially lethal metal items such as guns, knives and other flat and rod-shaped weapons regardless of location and orientation
  • Directional counter with four settings for patron counting (forward, reverse, subtraction reverse and bi-directional)
  • Advanced broadband detection technology that provides superior target analysis, ferrous and non-ferrous weapons detection, discrimination and higher patron throughput
  • Superior versatility designed for airports, courthouses, prisons, schools, facilities, special events, mass transit, loss prevention and many other applications
  • Can be mounted using the optional adhesive floor mounting kit, which can be used to protect valuable flooring surfaces while preventing unit movement

Key Features

  • Easy to assemble, using only 8 screws and 3 internal cable connections
  • Audible alarm and visual LED lights signal when a target has been detected

What's in the box:

  • Installation Instructions
  • Garrett Warranty
