What is the Mixed Mono Mode on the AS-1400R Bodypack Receiver?

The Mixed Mono Mode on the AS-1400R Bodypack Receiver allows performers to adjust the balance of left and right audio signals directly from the pack. This feature enables the creation of a personalized mix of vocals and instrumental tracks, or the choice between two distinct monitor mixes from the soundboard.

What are the notable features of the EB4 Ear Buds included with the Any Spot AS-1400 Wireless Personal Monitor System?

The EB4 Ear Buds included with the Any Spot AS-1400 Wireless Personal Monitor System are premium earbuds crafted with titanium drivers and aluminum alloy construction. They offer an extended bass response and are durable. These earbuds come with three pairs of silicone sleeves in small, medium, and large sizes for a comfortable fit. They also have a standard 3.5mm stereo jack, making them versatile for use with other systems or MP3 players.

What range of frequencies does the Any Spot AS-1400 Wireless Personal Monitor System operate within?

The Any Spot AS-1400 Wireless Personal Monitor System operates within the Frequency M range of 516 to 558MHz.

What are the connectivity options on the AS-1400T Transmitter?

The AS-1400T Transmitter is equipped with stereo XLR/1/4" inputs, allowing for seamless integration with a variety of audio sources. It also features a headphone output with volume control for real-time monitoring.

Who is the Any Spot AS-1400 Wireless Personal Monitor System suitable for?

The Any Spot AS-1400 Wireless Personal Monitor System is suitable for musicians, audio professionals, and houses of worship. It's an ideal choice for any application where reliable and high-quality wireless personal monitoring is essential.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Galaxy Audio AS-1400 System Specifications

System
  • Band

    UHF

  • Frequency Range

    CODE M: 516 MHz - 558 MHz

  • Frequencies

    275 Selectable Frequencies

  • Transmitter Output Level

    30 mW

  • Operating Range

    Under Typical Conditions 300' (92 m)

  • Audio Frequency Response

    +/-3dB 40Hz - 16kHz

  • Total Harmonic Distortion

    < 0.4% at 1kHz

  • Signal to Noise

    >105dB

  • Maximum Deviation Range

    +/-68kHz

  • Dynamic Range

    >90dB A-weighted

  • Operating Temperature Range

    14 to 122 deg. F (-10 to 50 deg. C)

  • Band Width

    42 MHz

Transmitter

Jump to...
  • Main Frame Size

    EIA STANDARD 1/2 U

  • Modulation Mode

    FM Stereo Modulation

  • RF Output

    30 mW

  • Max Audio Input Level

    +6dBV

  • Gain Adjustment Range

    33dB

  • Audio Input

    Line Level X 2, XLR/ 1/4" Combo Jack

  • XLR Input

    Balanced
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: No Audio -

  • Audio Output

    1/4" Headphone Out

  • Power Requirements

    12-18 V DC at 300 mA supplied by external power supply

Receiver

Jump to...
  • Audio Output Level

    100 mW

  • Sensitivity

    6dBMuV, S/N>60dB

  • Stereo Separation

    45dB (at 1kHz)

  • Output Connector

    1/8"(3.5mm) Stereo Earphone Connector

  • Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Battery Life

    About 7 hours (alkaline)

Ear Buds

Jump to...
  • Driver

    Single Titanium

  • Frequency Response

    20Hz to 20kHz +/-3dB

  • Impedance

    16 Ohms

  • Sensitivity

    102dB at 1kHz 126mV

  • Max Input Power

    5mW

  • Transducer Type

    Dynamic

  • Plug

    3.5mm TRS

  • Cord Length

    51" (129.54cm)

General

Jump to...
  • Dimensions (HxWxD)

    Transmitter: 1.7 x 8.2 x 7.1" (4.32 x 20.83 x 18.03cm)
    Receiver: 4.33 x 2.56 x 0.87" (11.00 x 6.50 x 2.21cm)

  • Weight

    Transmitter: 37.4 oz (1060.27g)
    Receiver: 5.12 oz (145.15g) (without batteries)

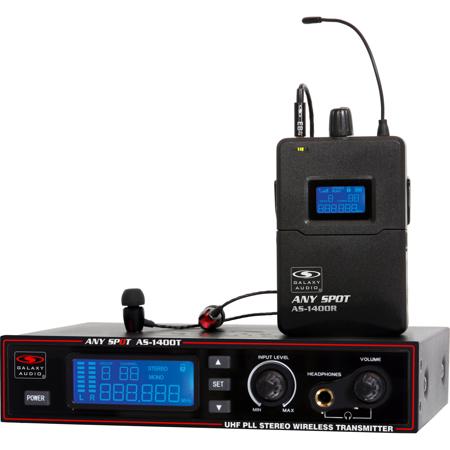

About Galaxy Audio AS-1400 System

The new AS-1400 is the latest addition to Galaxy Audio's highly acclaimed line of Wireless Personal Monitors, offering high end features and performance at a very affordable price. The transmitter features stereo XLR/1/4" inputs, headphone output with volume control, input level control and LCD display for channel and input level. The Receiver features Mixed Mono Mode for your own personal mix, volume and an LCD display with channel, battery level and RF level. Galaxy Audio's new comfort EB4 premium earbuds feature titanium drivers, extended bass response, aluminum alloy construction and now come standard with all WPM models. The AS-1400 is perfect for the working musician, House of Worship or any application requiring an affordable, reliable WPM system.

The Mixed Mono feature allows performers to adjust the balance of the Left and Right audio signals sent from the transmitter right on the body pack. With Mixed Mono: The performers can have their vocals in Input 1 and the band mix in Input 2 and adjust the volume of each independently to create their own personal mix or You can send two different monitor mixes from the board so each performer can decide which mix they want to hear on their belt pack.

- EB4 Ear Buds -
The EB4 are the standard Ear Buds for the Galaxy Audio Wireless Personal Monitors. The EB4 includes three pairs of Silicon sleeves (small, medium and large) for fit and comfortable use. The EB4 Ear Buds have a standard 3.5mm stereo jack, allowing them to be used with any brand of Wireless Personal Monitor or MP3 Player.

Galaxy Audio AS-1400 System Features

  • AS-1400 System:
  • Featuring Mixed Mono Mode
  • 275 Selectable Channels
  • UHF Phase Locked Loop
  • Backlit LCD (Displays Channel Number and Freq.)
  • Stereo or Mono Transmission

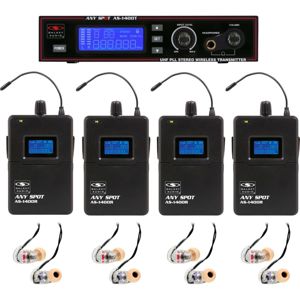

  • Multiple Receivers can be used with 1 Transmitter
  • 300' Range
  • AS-1400T Transmitter:
  • 275 Selectable UHF Frequencies
  • Send a Stereo or Mono Mix to Any Number of Receivers on Stage
  • Trouble Free Wireless Connectivity
  • XLR to 1/4" Connection From Any Source Device
  • Easy to Read LCD Screen with metering
  • Input Level Control
  • 1/4" Headphone Output with Volume Control for Easy Monitoring
  • AS-1400R Receiver:
  • Mixed Mono Mode for Your Own Personal Mix
  • High Contrast LCD Screen with Three Bar Battery Indicator
  • Easy to Set Group and Channel Selection
  • Operates on 2 AA Batteries (up to 7 hours Alkaline)
  • Lightweight titanium driver EB4 Ear buds Included
  • EB4 Ear Buds:
  • Stereo Personal Monitoring Earbuds
  • Single Titanium Drivers
  • High Fidelity with Extended Bass
  • Light and Comfortable
  • Aluminum Alloy Construction
  • Durable Cable

Product Documents

User Manual

What's in the box:

  • Galaxy Audio AS-1400T Transmitter
  • AS-1400R Bodypack Receiver (2AA Batteries Not Included)
  • EB4 Ear Buds (with S/M/L Silicon Sleeves)
  • Single/Dual Rack Kit
  • Antenna
  • Power Supply (for Transmitter)
  • Galaxy Audio 3 Year Limited Warranty (1 Year on Ear Buds)
