Galaxy Audio AS-1406-4 Wireless Personal Monitor System
See all Galaxy Audio items

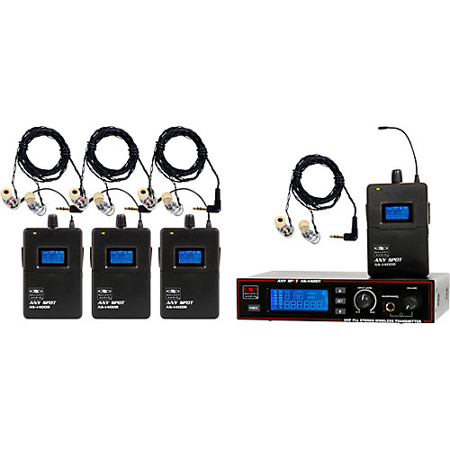

Galaxy Audio AS-1406-4 Wireless Personal Monitor System (275 Selectable UHF Frequency), Includes AS-1400T Transmitter, 4x AS-1400R Receiver, 4x EB6 Ear Buds, Rack Ear Kit, Antenna

SKU: GAAS14064
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Galaxy Audio AS-1400-2M: Picture 1 regular
Galaxy Audio AS-1400-2M In-Ear Twin Pack Monitor System, EB4, M: 516 to 558MHz
$989.99$659.99
Galaxy Audio AS-1400-4 System: Picture 1 regular
Galaxy Audio AS-1400-4 Band Pack System, 4x EB4 Ear Buds, M: 516 to 558MHz
$1,649.99$1,099.99
Galaxy Audio AS-1406-2M: Picture 1 regular
Galaxy Audio AS-1406-2M In-Ear Twin Pack Monitor System, EB6, M: 516 to 558MHz
$1,199.99$799.99
Galaxy Audio AS-1410-2M: Picture 1 regular
Galaxy Audio AS-1410-2M In-Ear Twin Pack Monitor System, EB10, M: 516 to 558MHz
$1,879.99$1,249.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the Mixed Mono Mode feature in the AS-1406-4 Wireless Personal Monitor System?

The Mixed Mono Mode feature allows each musician to create a personalized mix. This ensures that every performance is tailored to individual preferences, offering a unique and personalized audio experience.

What is the range of the AS-1406-4 Wireless Personal Monitor System?

The AS-1406-4 Wireless Personal Monitor System offers an impressive range of up to 300 feet. This allows for expansive stage movement and dynamic performances.

What type of earbuds are included with the AS-1406-4 Wireless Personal Monitor System?

The system includes Galaxy Audio's EB6 earbuds. These earbuds are renowned for their exceptional sound quality, delivering a full frequency range with natural mids, full highs, and rich bass.

How many selectable frequencies does the AS-1406-4 Wireless Personal Monitor System offer?

The AS-1406-4 Wireless Personal Monitor System offers 275 selectable UHF frequencies. This feature provides unparalleled flexibility, minimizing the chances of interference and ensuring crystal-clear audio.

What is the benefit of the UHF Phase Locked Loop in the AS-1406-4 Wireless Personal Monitor System?

The UHF Phase Locked Loop is an advanced technology that guarantees stable signal transmission. This is essential for consistent performance quality and clear, uninterrupted audio.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Galaxy Audio AS-1406 Specifications

  • Band

    UHF

  • Frequencies

    275 Selectable Frequencies

  • Transmitter Output Level

    30 mW

  • Operating Range

    Under Typical Conditions 300' (92 m)

  • Audio Frequency Response

    +/-3dB 40Hz - 16kHz

  • Total Harmonic Distortion

    < 0.4% at 1kHz

  • Signal to Noise

    >105dB

  • Maximum Deviation Range

    +/-68kHz

  • Dynamic Range

    >90dB A-weighted

  • Operating Temperature

    Range 14 to 122 deg. F (-10 to 50 deg. C)

  • Band Width

    42 MHz

  • Transmitter: Main Frame Size

    EIA STANDARD 1/2 U

  • Transmitter: Modulation Mode

    FM Stereo Modulation

  • Transmitter: RF Output

    30 mW

  • Transmitter: Max Audio Input Level

    +6dBV

  • Transmitter: Gain Adjustment Range

    33dB

  • Transmitter: Audio Input

    Line Level X 2, XLR/ 1/4" Combo Jack

  • Transmitter: XLR Input

    Balanced
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: Audio -

  • Transmitter: Audio Output

    1/4" Headphone Out

  • Transmitter: Power Requirements

    12-18 V DC at 300 mA supplied by external power supply

  • Receiver: Audio Output Level

    100 mW

  • Receiver: Sensitivity

    6dBV, S/N>60dB

  • Receiver: Stereo Separation

    45dB (at 1kHz)

  • Receiver: Output Connector

    1/8"(3.5 mm) Stereo Earphone Connector

  • Receiver: Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Receiver: Battery Life

    About 7 hours (alkaline)

  • Dimensions (HxWxD)

    Transmitter: 1.7 x 8.2 x 7.1" (43.18 x 208.28 x 180.34mm)
    Receiver: 4.33 x 2.56 x 0.87" (109.98 x 65.02 x 22.10mm)

  • Weight

    Transmitter: 37.4 oz (1060.27g)
    Receiver: 5.12 oz (145.15g) (without batteries)

  • UPC Code

    691281009099

About Galaxy Audio AS-1406

Band Pack System The 1400 Band Pack Systems makes it easy for any band to Get Personal. The system Includes four receivers and one transmitter. It is designed to get the whole band wireless in one package. Additional transmitters may be purchased at a later date to add mixes.

• Featuring Mixed Mono Mode
• 4 Receivers and 1 Transmitter
• 275 Selectable Channels
• UHF Phase Locked Loop
• Blacklit LCD (Displays Channel Number and Freq.)
• Stereo or Mono Transmission
• Multiple Receivers can be used with 1 Transmitter
• 300' Range

The new AS-1400 is the latest addition to Galaxy Audio's highly acclaimed line of Wireless Personal Monitors, offering high end features and performance at a very affordable price. The transmitter features stereo XLR/1/4" inputs, headphone output with volume control, input level control and LCD display for channel and input level.

The Receiver features Mixed Mono Mode for your own personal mix, volume and an LCD display with channel, battery level and RF level. Galaxy Audio's new comfort EB6 premium earbuds feature titanium drivers, extended bass response, aluminum alloy construction and now come standard with all WPM models. The AS-1400 is perfect for the working musician, House of Worship or any application requiring an affordable, reliable WPM system.

EB6 Earbuds
The EB6 features a single driver delivering full frequency performance. The EB6 has a chord over 4 feet long and the earbuds weigh 6g (less than 0.25 oz; excluding cable). The EB6 includes a durable plastic carrying case with three pairs of Silicon Sleeves (small, medium and large).

• Wideband Dyna Driver earbuds reproduce the full frequency range with natural mids, full highs and rich bass.
• They allow musicians to monitor their mix with full detail.
• Three different sized pairs of silicon sleeves are provided for best fit and sound isolation.
• Ergonomic mechanical structure ensures long time, low fatigue use.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

What's in the box:

  • Galaxy Audio AS-1400T Transmitter
  • 4x AS-1400R Receiver
  • Power Supply
  • 4x Standard EB6 Ear Buds
  • Antenna
  • Rack Ear Kit
  • Quick Start Guide
  • Galaxy Audio 3 Year Limited Warranty
