Galaxy Audio AS-1800-2B3 Specifications

System
  • Band

    UHF

  • Frequency Range

    B3: 554 to 570MHz

  • Frequencies Supported

    32 Channels / 640 Selectable Frequencies

  • Transmitter Output

    Level: 30mW or 100mW

  • Operating Range

    300' / 91.4 m

  • Audio Frequency Response

    +/-1 dB 45Hz to 18 kHz

  • Total Harmonic Distortion

    < 0.7% at 1kHz

  • Signal to Noise

    >105 dB

  • Maximum Deviation Range

    +/-68 kHz

  • Dynamic Range

    >90 dB A-Weighted

  • Operating Temperature

    14 to 122 deg. F (-10 to 50 deg. C) (Battery Characteristics May Limit this Range)

AS-1800T Transmitter

Jump to...
  • Rack Unit Space

    EIA Standard 1/2 RU

  • Modulation Mode

    FM Stereo Modulation

  • RF Output

    30mW or 100mW

  • Maximum Audio Input Level

    +22 dBV

  • Gain Adjustment Range

    6 dB

  • Audio Input

    2x XLR / 1/4" Combo Jack (Line Level)

  • XLR Inputs

    Impedance Balanced
    Pin 1: Ground (Cable Shield)
    Pin 2: Audio +
    Pin 3: No Audio

  • Audio Output

    2x 1/4" (6.3mm) Unbalanced Jack

  • Power Requirement

    12 to 18 VDC at 300 mA Supplied by External Power Supply

AS-1800R Receiver

Jump to...
  • Audio Output Level

    100mW

  • Sensitivity

    6 dBmu V, S/N>60 dB at 25 Deviation (Mono)

  • Stereo Separation

    45 dB (at 1 kHz)

  • Output Connector

    1/8" / 3.5 mm Stereo Earphone Mini-Jack Connector

  • Power Requirement

    2 x AA Size Alkaline or Rechargeable Batteries

  • Battery Life

    About 7 Hours (Alkaline)

EB4 Earbuds

Jump to...
  • Driver

    Single titanium

  • Frequency Response

    20Hz to 20 kHz, +/- 3 dB

  • Impedance

    16 Ohms

  • Sensitivity

    102 dB at 1kHz, 126 mV

  • Maximum Input Power

    5mW

  • Transducer Type

    Dynamic

  • Plug

    3.5mm TRS

  • Cord Length

    4.25' (1.3m)

General

Jump to...
  • Dimensions (HxWxD)

    AS-1800T Transmitter: 1.7 x 8.2 x 8.1" (4.3 x 20.8 x 20.6cm)
    AS-1800R Receiver: 4.25 x 2.60 x 0.87" (10.80 x 6.60 x 2.21cm)

  • Weight

    AS-1800T Transmitter: 2.3 lbs (1.0kg)
    AS-1800R Receiver: 0.35 lbs (0.16kg)

  • UPC Code

    691281010682

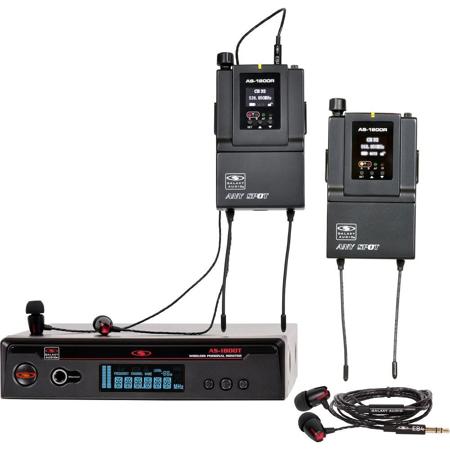

About Galaxy Audio AS-1800-2B3

The Galaxy Audio AS-1800 is designed with features for the professional. The body pack receiver is set up for a king. With 150mW's of output to the ear buds, the AS-1800R is sure to be plenty loud for any environment. The receiver has a squelch adjustment, stereo/mono switch, LCD display, button lock and a Magnesium Alloy Construction. Galaxy Audio's comfort EB4 premium ear buds feature titanium drivers, extended bass response, aluminum alloy construction and now come standard with all WPM models.

The Twin Pack Systems makes it easy for any duo or band to Get Personal. The Twin Pack system includes two receivers and one transmitter. They are designed to get the duo or whole band wireless in one package. The Galaxy Audio AS-1800-2 will allow a duo or band to send one stereo mix to 2 or 4 individuals.

EB4 Ear Buds
The Galaxy Audio EB4 are the standard earphones for Wireless Personal Monitors. The EB4 includes three pairs of Silicon sleeves (small, medium and large) for fit and comfortable use. The EB4 Ear Buds have a standard 3.5mm stereo jack, allowing them to be used with any brand of Wireless Personal Monitor or MP3 Player.

• Stereo Personal Monitoring Earbuds
• Single Titanium Drivers
• High Fidelity with Extended Bass
• Light and Comfortable
• Aluminum Alloy Construction
• Durable Cable

Galaxy Audio AS-1800-2B3 Features

  • AS-1800T Transmitter:
  • Easy to Read LCD
  • 2-1/4" Line Outputs (unbalanced)
  • Volume Control
  • Two XLR/1/4" Combo Inputs
  • Naming Function
  • 30/100mW Selectable Transmitter Output
  • Monitor Output
  • Detachable BNC Antenna
  • AS-1800R Receiver:
  • True Diversity
  • Magnesium Alloy Construction
  • 45 Hz -18 kHz
  • Mixed Mono Mode
  • Frequency Display
  • Backlit LCD
  • Volume Control
  • Battery Level Indicator
  • 150mW Earphone Output
  • Button Lock
  • Squelch Adjustment
  • Volume Knob
  • Auto Mute
  • Stereo/Mono Switch

What's in the box:

  • 2x Galaxy Audio EB4 Ear Buds with Three Pairs of Silicon Sleeves (S/M/L)
  • AS-1800T Transmitter
  • 2x AS-1800R Receiver
  • Single/Dual Rack Kit
  • Antenna
  • 2x 1/4 " to 1/4 " Cables
  • Nylon Case
  • Power Supply
  • Galaxy Audio 3 Year Limited Warranty (1 Year on Earbuds)
