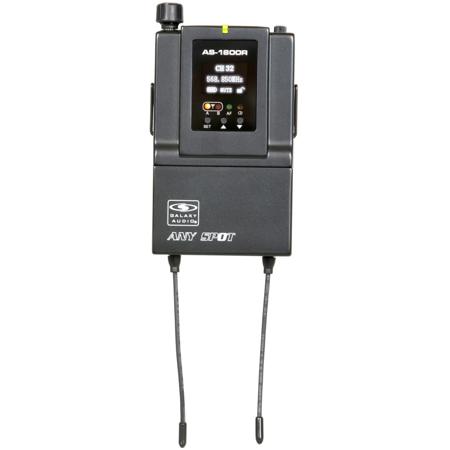

Galaxy Audio AS-1800R Wireless Bodypack Receiver, B2/554-570MHz
See all Galaxy Audio items

Galaxy Audio AS-1800R Wireless Bodypack Receiver, B2/554-570MHz, 32 Channels, 300' Operating Range, 16MHz Band Width

SKU: GAAS1800RB2
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Galaxy Audio AS-1800R Specifications

  • AS-1800R: Channels

    32 Channels / 640 Selectable Frequencies

  • AS-1800R: Frequency Stability

    +/-0.0005%, Phase Lock Loop frequency control

  • AS-1800R: Carrier Frequency Range

    UHF Code B3 554-570 MHz

  • AS-1800R: Modulation Mode

    FM stereo modulation

  • AS-1800R: Operating Range

    300' (100M) typical (in open space)

  • AS-1800R: Oscillation

    PLL synthesized

  • AS-1800R: Sensitivity

    6dB½V, S/N>60dB at 25 deviation (mono)

  • AS-1800R: Band Width

    16MHz

  • AS-1800R: Max. Deviation Range

    +/-68KHz

  • AS-1800R: S/N

    >105dB

  • AS-1800R: T.H.D.

    <0.7% at 1KHz

  • AS-1800R: Frequency response

    45Hz~18KHz+/-1dB

  • AS-1800R: Stereo Separation

    >45dB (at 1KHz)

  • AS-1800R: Output Connector

    1/8" (3.5mm) stereo earphone connector

  • AS-1800R: Output Power

    150mW at 1KHz (THD1%)

  • AS-1800R: Battery

    AA x 2

  • AS-1800R: Current Consumption

    185mA typical

  • AS-1800R: Battery Current / Life

    About 7 hours

  • Dimensions (H x W x D)

    4.25 x 2.60 x 0.87" / 10.80 x 6.60 x 2.21cm

  • Weight

    0.35lbs / 0.16kg

About Galaxy Audio AS-1800R

The Galaxy Audio AS-1800R Wireless Bodypack Receiver (B2/538-554MHz) is built for the toughest conditions. It is constructed from Magnesium alloy, features diversity antennas, 150mW headphone output and Mixed Mono Mode. The LCD display shows channel number, frequency and battery status.

The Mixed Mono Mode allows performers to adjust the balance of the Left and Right audio signals sent from the transmitter directly on the body pack. The performers can have their vocals in Input 1 and the band mix in Input 2 and adjust the volume of each independently to create their own personal mix or you can send two different monitor mixes from the board so each performer can decide which mix they want to hear on their belt pack.

Galaxy Audio AS-1800R Features

  • AS-1800R: True Diversity
  • AS-1800R: Magnesium Alloy Construction
  • AS-1800R: Mixed Mono Mode
  • AS-1800R: Frequency Display
  • AS-1800R: Backlit LCD
  • AS-1800R: Volume Control
  • AS-1800R: Battery Level indicator
  • AS-1800R: Button Lock
  • AS-1800R: Squelch adjustment
  • AS-1800R: Volume Knob
  • AS-1800R: Auto Mute
  • AS-1800R: Stereo/Mono Switch

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • AS-1800R: True Diversity
  • Magnesium Alloy Construction
  • AS-1800R: Mixed Mono Mode
  • AS-1800R: Frequency Display
  • AS-1800R: Backlit LCD
  • AS-1800R: Volume Control

What's in the box:

  • Galaxy Audio AS-1800R Wireless Bodypack Receiver
  • Galaxy Audio 3 Year Limited Warranty
