Galaxy Audio AS-1810-2B2 Specifications

System
  • Band

    UHF

  • Frequency Range

    B2: 538 to 554MHz

  • Frequencies Supported

    32 Channels / 640 Selectable Frequencies

  • Transmitter Output

    Level: 30mW or 100mW

  • Operating Range

    300' / 91.4 m

  • Audio Frequency Response

    +/-1 dB 45Hz to 18 kHz

  • Total Harmonic Distortion

    < 0.7% at 1kHz

  • Signal to Noise

    >105 dB

  • Maximum Deviation Range

    +/-68 kHz

  • Dynamic Range

    >90 dB A-Weighted

  • Operating Temperature

    14 to 122 deg. F (-10 to 50 deg. C) (Battery Characteristics May Limit this Range)

AS-1800T Transmitter

Jump to...
  • Rack Unit Space

    EIA Standard 1/2 RU

  • Modulation Mode

    FM Stereo Modulation

  • RF Output

    30mW or 100mW

  • Maximum Audio Input Level

    +22 dBV

  • Gain Adjustment Range

    6 dB

  • Audio Input

    2x XLR / 1/4" Combo Jack (Line Level)

  • XLR Inputs

    Impedance Balanced
    Pin 1: Ground (Cable Shield)
    Pin 2: Audio +
    Pin 3: No Audio

  • Audio Output

    2x 1/4" (6.3mm) Unbalanced Jack

  • Power Requirement

    12 to 18 VDC at 300 mA Supplied by External Power Supply

AS-1800R Receiver

Jump to...
  • Audio Output Level

    100mW

  • Sensitivity

    6 dBmu V, S/N>60 dB at 25 Deviation (Mono)

  • Stereo Separation

    45 dB (at 1 kHz)

  • Output Connector

    1/8" / 3.5 mm Stereo Earphone Mini-Jack Connector

  • Power Requirement

    2 x AA Size Alkaline or Rechargeable Batteries

  • Battery Life

    About 7 Hours (Alkaline)

EB10 Earbuds

Jump to...
  • Drivers

    2x Balanced Drivers per Earpiece with Passive Crossover

  • Frequency Range

    20Hz - 18kHz

  • Impedance

    22 Ohms

  • Distortion

    < 0.3%

  • Sensitivity

    120dB

  • Maximum Input Power

    150mW

  • Connectors

    Gold-Plated 3.5mm Stereo Mini Plug

  • Cable Length

    55" (140cm)

General

Jump to...
  • Dimensions (HxWxD)

    AS-1800T Transmitter: 1.7 x 8.2 x 8.1" (4.3 x 20.8 x 20.6cm)
    AS-1800R Receiver: 4.25 x 2.60 x 0.87" (10.80 x 6.60 x 2.21cm)

  • Weight

    AS-1800T Transmitter: 2.3 lbs (1.0kg)
    AS-1800R Receiver: 0.35 lbs (0.16kg)
    EB10 Earbuds: 0.25 oz (7g) (without Cable)

  • UPC Code

    691281010729

About Galaxy Audio AS-1810-2B2

The Galaxy Audio AS-1800 is designed with features for the professional. The body pack receiver is set up for a king. With 150mW's of output to the ear buds, the AS-1800R is sure to be plenty loud for any environment. The receiver has a squelch adjustment, stereo/mono switch, LCD display, button lock and a Magnesium Alloy Construction. The Twin Pack Systems makes it easy for any duo or band to Get Personal. The Twin Pack system includes two receivers and one transmitter. They are designed to get the duo wireless in one package. The Galaxy Audio AS-1800-2 will allow a duo to send one stereo mix to 2 Individuals.

EB10 Ear Buds
PROFESSIONAL DUAL DRIVER EAR BUDS: Upgrading your ear buds can be a great improvement to your wireless monitor system or media player. The Galaxy Audio EB10 is a dual driver system. It has two built-in transducers and a passive crossover in each ear bud. They provide Hi-Dynamics, Hi-Definition and Low-Noise to yield accurate audio reproduction. The EB10 has a standard 3.5mm stereo jack, allowing it to be used with any brand of Wireless Personal Monitor or Digital Media Player.

• Professional Dual Driver Ear Buds
• Allows musicians to monitor their mix with full detail
• Design assures excellent sound isolation and maximum comfort during periods of extended wear
• Three different sized pairs of silicon sleeves are provided for best fit and sound isolation
• Nylon Soft Case Included

The EB10 incorporates dual performance drivers and built-in crossover. The EB10's lightweight ergonomic design assures excellent sound isolation and maximum comfort during periods of extended wear. The EB10 comes with a Silver Plated cable with a Gold Plated connector. The EB10 has a MAX Power Input of 150mW and a Sensitivity of 120dB/mW. The EB10 has a cable over 4 feet long and the ear buds weigh 7g (0.25 oz; excluding cable). The EB10 includes zippered carrying case with a cleaning rod and three pairs of Silicon Sleeves (small, medium and large).

Galaxy Audio AS-1810-2B2 Features

  • AS-1800T Transmitter:
  • Easy to Read LCD
  • 2-1/4" Line Outputs (unbalanced)
  • Volume Control
  • Two XLR/1/4" Combo Inputs
  • Naming Function
  • 30/100mW Selectable Transmitter Output
  • Monitor Output
  • Detachable BNC Antenna
  • AS-1800R Receiver:
  • True Diversity
  • Magnesium Alloy Construction
  • 45 Hz -18 kHz
  • Mixed Mono Mode
  • Frequency Display
  • Backlit LCD
  • Volume Control
  • Battery Level Indicator
  • 150mW Earphone Output
  • Button Lock
  • Squelch Adjustment
  • Volume Knob
  • Auto Mute
  • Stereo/Mono Switch

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with these in-ear monitors, perfect for live stage performances.
  • Enjoy a comfortable, secure fit with the included multiple eartip sizes for extended wear.
  • Achieve superior noise isolation, blocking distractions for focused monitoring during gigs.
  • Rely on the durable construction of these in-ear monitors designed to withstand rigorous use.
  • Seamless wireless connectivity ensures freedom of movement on stage with a reliable signal.
  • Twin pack monitor system offers incredible value without compromising on sound quality.

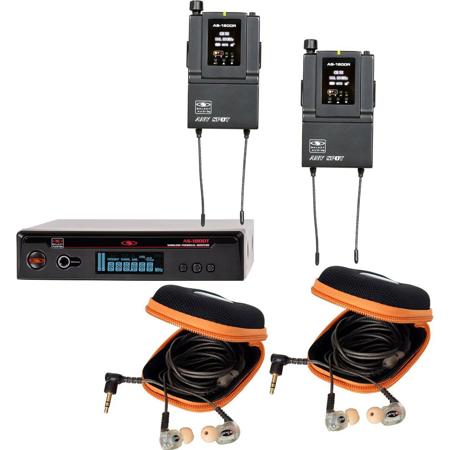

What's in the box:

  • 2x Galaxy Audio EB10 Ear Buds with Three Pairs of Silicon Sleeves (S/M/L)
  • AS-1800T Transmitter
  • 2x AS-1800R Receiver
  • Single/Dual Rack Kit
  • Antenna
  • 2x 1/4 " to 1/4 " Cables
  • Nylon Case
  • Power Supply
  • Galaxy Audio 3 Year Limited Warranty (1 Year on Earbuds)
