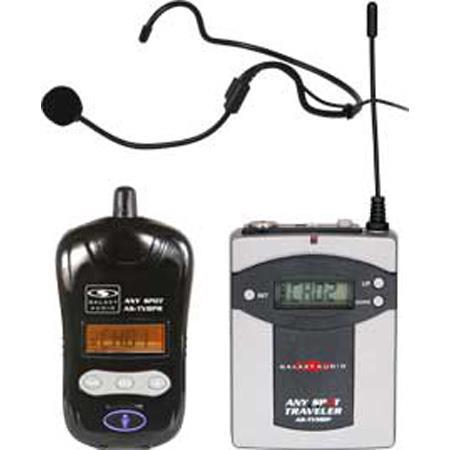

Galaxy Audio Headset Camera Kit, Includes AS-TVBPR Receiver, AS-TVMBP Bodypack Transmitter, HS-U3BK Headset, 1/8" Stereo Record Out Cable

UHF 640 to 664 MHZ

Pre-programmed 96 switchable frequencies

Plastic

PLL synthesized

PLL Single channel

Sinad > 20 dB at Ear.out:500 mV, RF=-105 dBm, f=1 kHz, Mod=14 kHz

300 mV 2RF=-60 dBm, f=1 kHz, Mod=14 kHz

1.4V at VR max., RF=-60 dBm, f=1 kHz, Mod=14 kHz.

<1% at Ear.out:500mV, RF=-60 dBm, f=1 kHz, Mod=14 kHz

>60 dB at with AS-TVBPR, f=1 kHz, MIC IN = -30 dBv

Aux: 70 Hz to 12 kHz at with AS-TVBPR Aux
Ear.: 100 Hz to 12 kHz at with AS-TVBPR Mic

38 kHz

Hi: > 50 M, Low: >30 M

3.5 mm TRS

8Ohms / 1 W

Li-ion 3.7 V 1200 mAh.

up to 18 hours

3 to 4 hours

Channel, Frequency, Battery

Headset or Lavalier

10mW

Less than 250 nW

LCD indicator displays channel or frequency, battery life

SET, UP, DOWN keys

Mute switch, Hi/Mid/Low switch

Mic in, Aux in

1.2 V (Ni-MH 1300 mAh) 2AA type rechargeable battery
1.5V 2AA Alkaline disposable

11 hours typical

14 hours typical

Aluminum

AS-TVBPR Receiver (D x W x H): 36 x 52.3 x 99mm / 1.42 x 2.06 x 3.90"
AS-TVMBP Transmitter: ( D x W x H ): 1.04 x 2.52 x 3.48" / 26.42 x 64.01 x 88.39mm

AS-TVBPR Receiver: 100g / 3.53oz
AS-TVMBP Transmitter: 4.48oz / 127.01g

691281002717
