34% Off

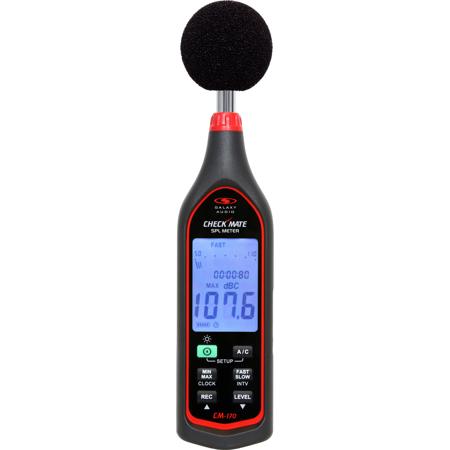

Galaxy Audio CM-170 Type II Sound Pressure Level Meter

SKU: GACM170 MFR: CM170
Earn VIP Reward Points

Key Features

  • Achieve accurate sound checks with this Class 2 Galaxy Audio sound level meter.
  • Ensure optimal audio with a wide 20Hz-8kHz frequency range for precise readings.
  • Use A/C weighting filters to tailor the sound meter to your specific needs.
  • Log up to 64,000 records for thorough data analysis with this reliable meter.
  • Get precise measurements with a dynamic range of 60dB for various sound levels.
  • Calibrate your sound system using this meter, adhering to IEC 61672-1 standards.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Galaxy Audio CM-170 Specifications

  • Microphone

    1/2" Electret Condenser Microphone

  • Accuracy

    +/-1.4 dB (under reference conditions, 94 dB at 1 kHz)

  • Display

    Liquid Crystal Display

  • Digital Display

    4 Digits
    Resolution: 0.1 dB
    Display Update: 0.5 sec.

  • Analog Display

    30 Segment Bar Graph
    Resolution 2 dB
    Display Update: 50 mS

  • Measuring Level Range

    30 - 130dB

  • Level Ranges

    Lo: 30 - 90 dB
    Med: 50 - 110 dB
    Hi: 70 - 130 dB
    Auto: 30 - 130 dB

  • Auxiliary Outputs

    AC Signal Output, 1 Vrms at FS (Full Scale) (FS: Means the upper limit of each level range.)

  • DC Output

    10mV/dB

  • Frequency Weighting

    A/C

  • Time Weighting

    Fast, Slow

  • Dynamic Range

    60dB

  • Frequency Range

    20Hz - 8kHz

  • Alarm Function

    "OVER" is when input is more than upper limit of range. "UNDER" is when input is less than lower limit of range.

  • Data Logging Capacity

    64,000 Records

  • Power Supply

    4x AAA, NEDA 24A, IEC LR03 Batteries

  • Battery Life

    Approximately 24 hrs (alkaline battery)

  • Power Consumption

    Approx. 0.2W

  • External Power Supply

    5 VDC (micro USB plug)

  • Standard

    IEC 61672-1 Class 2, ANSI S1.4 Type 2

  • Operation Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Operation Humidity

    10 to 90% RH

  • Storage Temperature

    10 to 60 deg. C (50 to 140 deg. F)

  • Storage Humidity

    10 to 75% RH

  • Dimensions (L x W x H)

    10.4 x 2.5 x 1.1" (264.16 x 63.50 x 27.94mm)

  • Weight

    0.54lbs (0.24kg)

  • UPC Code

    691281006449

About Galaxy Audio CM-170

When it comes to accurately measuring sound pressure levels in various environments, the CM-170 Type II Sound Pressure Level Meter by Galaxy Audio is a top-tier choice. This high-quality, durable SPL meter is designed to meet the standards of IEC 61672-1 Type II, making it a reliable tool for professionals working in loud environments such as audio recording studios, concert venues, or even racetracks.

The CM-170 is part of Galaxy Audio's renowned CHECK MATE series, first introduced in 2003, which has since become a trusted name among musicians, sound contractors, DJs, and even law enforcement agencies. This portable SPL meter is not only easy-to-use but also offers a large, easy-to-read display, ensuring precise readings of sound pressure levels in decibels (dB) - the standard unit for measuring the relative loudness of sound.

What sets the CM-170 apart from its predecessor, the CM-160, is its advanced features. It comes equipped with a Data Logging with Clock feature, Fast/Slow Time Weighting, and Electronic Calibration, providing more accurate and detailed measurements.

The CM-170 SPL Meter is also designed for convenience. It comes complete with a carry case for easy transportation, a windscreen for optimal performance, and a USB cable for seamless data transfer. Additionally, it includes software for computer use, making it a comprehensive solution for all your sound pressure level measurement needs.

In a world where sound quality matters, the CM-170 Type II Sound Pressure Level Meter by Galaxy Audio is an indispensable tool for ensuring the best audio experience.

Galaxy Audio CM-170 Features

  • Frequency Range 20Hz-8kHz
  • Frequency Weighting A/C
  • Fast/Slow Time Weighting
  • Data Logging with Clock
  • USB Mini Interface
  • Includes Software and USB Cable for Charging
  • IEC 61672-1 Type II
  • Range 30 - 130 dB
  • Accuracy +/- 1.4 dB
  • Electronic Calibration

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Achieve accurate sound checks with this Class 2 Galaxy Audio sound level meter.
  • Ensure optimal audio with a wide 20Hz-8kHz frequency range for precise readings.
  • Use A/C weighting filters to tailor the sound meter to your specific needs.
  • Log up to 64,000 records for thorough data analysis with this reliable meter.
  • Get precise measurements with a dynamic range of 60dB for various sound levels.
  • Calibrate your sound system using this meter, adhering to IEC 61672-1 standards.

What's in the box:

  • Galaxy Audio CM-170 Type II Sound Pressure Level Meter
  • Windscreen
  • Software CD
  • USB/Micro USB Cable
  • Carry Case
  • Quick Start Guide
  • Galaxy Audio 3 Year Limited Warranty
