Galaxy Audio CTS Series Guitar System, Includes CTSR Receiver and MBP85 Bodypack Transmitter with Guitar Cable, Code D 584-607 MHz

SKU: GACTSR85GTRD MFR: CTSR/85GTRD
Earn VIP Reward Points

Key Features

  • Experience freedom with this wireless instrument microphone system, perfect for guitarists on stage.
  • Enjoy crystal-clear sound quality with a wide 60 Hz - 16 kHz audio frequency response for your guitar.
  • Achieve a reliable wireless range up to 300 feet, minimizing dropouts during your performance.
  • The durable metal chassis receiver is rack-mountable, offering easy integration into your setup.
  • Customize your sound with adjustable gain settings on the bodypack transmitter for optimal levels.
  • Get up to 12 hours of battery life with standard AA batteries, ensuring long-lasting performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Galaxy Audio CTS System Specifications

System
  • Available Frequencies

    920

  • Frequency Ranges

    CODE D: 584 - 607 MHz

  • Transmitter Output

    5 mW, 10 mW, 20 mW

  • Band

    UHF

  • Operating Range

    Under Typical Conditions 300' (92 m), actual range depends on RF signal absorption, reflection and interference

  • Audio Frequency Response

    (+/-3 dB) 60 Hz - 16 Hz

  • Total Harmonic Distortion

    (+/-30 kHz deviation, 1 kHz tone): <1%

  • Dynamic Range

    >90 dB A-weighted

  • Operating Temperature Range

    14 to 122 deg. F (-10 to 50 deg. C), battery characteristics may limit this range

Receiver

Jump to...
  • Audio Output Level

    +/-30kHz deviation 1kHz tone:
    XLR Connector (into 600 Ohms load) 6 dBV
    1/4" Connector (into 3 k Ohms load) 0 dBV

  • Output Connection

    1 Male XLR Balanced, 1/4" Unbalanced

  • Output Impedance

    XLR Connector 200 Ohms
    1/4" Connector 1 k Ohms

  • XLR Output

    Impedance Balanced
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: No Audio -

  • Sensitivity

    -102 dBm

  • Image Rejection

    >90 dB

  • Casing

    Metal Chassis EIA STANDARD 1/2 U

  • Power Requirements

    12 V DC at 500 mA, supplied by external power supply

Transmitter

Jump to...
  • Max Audio Input Level

    -6 dBV (-3 gain)

  • Gain Adjust

    -3 dB, 0 dB, +3 dB, +6 dB, +9 dB

  • RF Output

    5 mW, 10 mW, 20 mW

  • Input Impedance

    470 k Ohms

  • Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Battery Life

    About 12 hours (alkaline)

General

Jump to...
  • Dimensions (HxWxD)

    Receiver: 1.7 x 8.3 x 6.3" (4.32 x 21.08 x 16.00cm)
    Transmitter (HxWxD): 3.85 x 2.51 x 0.90" (9.78 x 6.38 x 2.29cm)

  • Weight

    Receiver: 31.7 oz (898.68g)
    Transmitter: 3.17 oz (89.87g)

  • UPC Code

    691281002700

About Galaxy Audio CTS System

Take your musical performance to the next level with the CTS Series Guitar System. This professional-grade system includes a CTSR Receiver and an MBP85 Bodypack Transmitter with a Guitar Cable, operating within the Code D 584-607 MHz frequency range.

This wireless guitar system boasts 920 selectable UHF frequencies, providing you with a wide range of options to find the perfect sound. The IR Sync and Auto Scan features ensure seamless connectivity and optimal signal strength, while the BNC detachable diversity antennas enhance the system's range and reliability.

The CTS Series offers 16 frequency groups, each with 14 channels. Two of these groups can be user-defined, allowing for a personalized and tailored sound experience. The system's LCD display provides real-time information on frequency, battery life, mute status, gain, and RF signal strength, keeping you in control of your performance at all times.

The included Galaxy's new HH85 handheld transmitter is built for the road, featuring a durable magnesium alloy metal chassis. It offers a range of up to 300 feet, ensuring you can move freely on stage without compromising sound quality.

The CTSR Receiver is equipped with AF/RF indicators and offers both XLR and 1/4" outputs for versatile connectivity. The MBP85 Bodypack Transmitter, designed specifically for the CTS Wireless Microphone System, features a power/mute button and an LCD display. It operates on 2 AA batteries, providing up to 12 hours of use with alkaline batteries.

Selectable power options (5, 10, 20 mW) and gain settings (-3, 0, 3, 6, 9) allow you to customize your sound to suit your style and venue. With the CTS Series Guitar System, you'll enjoy reliable, high-quality sound, whether you're playing in a small venue or on a large stage.

Galaxy Audio CTS System Features

  • Professional-grade wireless guitar system with CTSR Receiver and MBP85 Bodypack Transmitter
  • Features 920 selectable UHF frequencies and operates within Code D 584-607 MHz range
  • Equipped with IR Sync, Auto Scan, and BNC detachable diversity antennas for optimal performance
  • 16 frequency groups with 14 channels each, 2 of which can be user-defined for personalized sound
  • Durable HH85 handheld transmitter with LCD display and a range of up to 300 feet
  • MBP85 Bodypack Transmitter operates on 2 AA batteries, offering up to 12 hours of use with alkaline batteries

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience freedom with this wireless instrument microphone system, perfect for guitarists on stage.
  • Enjoy crystal-clear sound quality with a wide 60 Hz - 16 kHz audio frequency response for your guitar.
  • Achieve a reliable wireless range up to 300 feet, minimizing dropouts during your performance.
  • The durable metal chassis receiver is rack-mountable, offering easy integration into your setup.
  • Customize your sound with adjustable gain settings on the bodypack transmitter for optimal levels.
  • Get up to 12 hours of battery life with standard AA batteries, ensuring long-lasting performance.

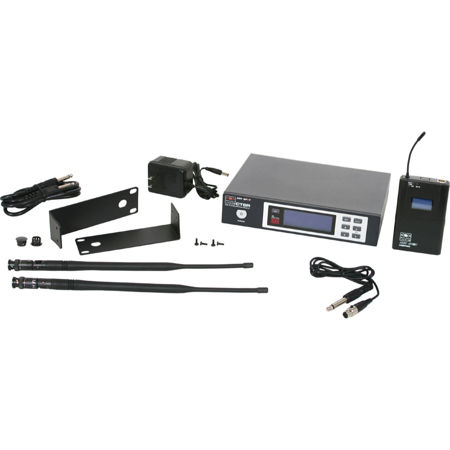

What's in the box:

  • Galaxy Audio CTS Series CTSR Receiver
  • MBP85 Bodypack Transmitter (2AA Batteries Not Included)
  • AS-GTR Guitar Cable
  • Single/Dual Rack Kit
  • Detachable BNC Antennas
  • Power Supply (for Receiver)
  • Galaxy Audio 3 Year Limited Warranty
