33% Off

Galaxy Audio CTS Series Guitar System, Includes CTSR Receiver and MBP85 Bodypack Transmitter with Guitar Cable, Code J 514-537 MHz

SKU: GACTSR85GTRJ MFR: CTSR/85GTRJ
Earn VIP Reward Points

Key Features

  • Experience freedom with this wireless instrument microphone system for guitarists.
  • Achieve excellent sound quality with a wide 60 Hz - 16 kHz frequency response.
  • Enjoy a reliable wireless range up to 300 feet, perfect for stage performances.
  • Easily adjust gain with settings from -3 dB to +9 dB on the bodypack transmitter.
  • Durable metal chassis receiver ensures longevity, ideal for touring musicians.
  • Operate for up to 12 hours on 2 AA batteries, minimizing interruptions during gigs.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Galaxy Audio CTS System Specifications

System
  • Available Frequencies

    920

  • Frequency Ranges

    CODE D: 584 - 607 MHz

  • Transmitter Output

    5 mW, 10 mW, 20 mW

  • Band

    UHF

  • Operating Range

    Under Typical Conditions 300' (92 m), actual range depends on RF signal absorption, reflection and interference

  • Audio Frequency Response

    (+/-3 dB) 60 Hz - 16 Hz

  • Total Harmonic Distortion

    (+/-30 kHz deviation, 1 kHz tone): <1%

  • Dynamic Range

    >90 dB A-weighted

  • Operating Temperature Range

    14 to 122 deg. F (-10 to 50 deg. C), battery characteristics may limit this range

Receiver

Jump to...
  • Audio Output Level

    +/-30kHz deviation 1kHz tone:
    XLR Connector (into 600 Ohms load) 6 dBV
    1/4" Connector (into 3 k Ohms load) 0 dBV

  • Output Connection

    1 Male XLR Balanced, 1/4" Unbalanced

  • Output Impedance

    XLR Connector 200 Ohms
    1/4" Connector 1 k Ohms

  • XLR Output

    Impedance Balanced
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: No Audio -

  • Sensitivity

    -102 dBm

  • Image Rejection

    >90 dB

  • Casing

    Metal Chassis EIA STANDARD 1/2 U

  • Power Requirements

    12 V DC at 500 mA, supplied by external power supply

Transmitter

Jump to...
  • Max Audio Input Level

    -6 dBV (-3 gain)

  • Gain Adjust

    -3 dB, 0 dB, +3 dB, +6 dB, +9 dB

  • RF Output

    5 mW, 10 mW, 20 mW

  • Input Impedance

    470 k Ohms

  • Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Battery Life

    About 12 hours (alkaline)

General

Jump to...
  • Dimensions (HxWxD)

    Receiver: 1.7 x 8.3 x 6.3" (4.32 x 21.08 x 16.00cm)
    Transmitter (HxWxD): 3.85 x 2.51 x 0.90" (9.78 x 6.38 x 2.29cm)

  • Weight

    Receiver: 31.7 oz (898.68g)
    Transmitter: 3.17 oz (89.87g)

  • UPC Code

    691281007552

About Galaxy Audio CTS System

Because every professional musician deserves top-notch, reliable equipment, the CTS Series Guitar System is designed to deliver high-quality, wireless sound transmission. This system includes a CTSR Receiver and an MBP85 Bodypack Transmitter, complete with a guitar cable, operating within the Code J 514-537 MHz frequency range.

The CTS Series stands out with its 920 selectable UHF frequencies, ensuring optimal signal clarity and minimal interference. The system's IR Sync and Auto Scan features simplify the setup process, while the BNC detachable diversity antennas enhance signal reception. The system's LCD display provides real-time information, including frequency, battery life, mute status, gain, and RF signal strength.

This guitar system is not only technologically advanced but also robust, thanks to the Galaxy's new HH85 handheld transmitter's magnesium alloy metal chassis. This tour-grade system is built for road-worthy durability, making it a reliable companion for any professional musician on the go.

The CTS Series boasts a 300' range, true diversity, and single/dual rack mount options. The CTSR Receiver features an intuitive transmitter status display, AF/RF indicators, and versatile XLR / 1/4" outputs. The detachable BNC antennas and metal chassis further enhance its durability and performance.

The MBP85 Transmitter Body Pack, designed for the CTS Wireless Microphone System, features a power/mute button and an LCD display. It offers selectable power options (5, 10, 20 mW) and selectable gain (-3, 0, 3, 6, 9), allowing you to customize your sound. The transmitter operates on 2 AA batteries, offering up to 12 hours of use with alkaline batteries.

In summary, the CTS Series Guitar System is a comprehensive, high-performance solution for professional musicians seeking reliable, high-quality sound transmission.

Galaxy Audio CTS System Features

  • High-performance CTS Series Guitar System, including CTSR Receiver and MBP85 Bodypack Transmitter
  • Features 920 selectable UHF frequencies for optimal sound clarity
  • Robust design with Galaxy's new HH85 handheld transmitter and a magnesium alloy metal chassis
  • Offers a wide 300' range, true diversity, and single/dual rack mount options
  • MBP85 Transmitter Body Pack with customizable power and gain options
  • Long-lasting operation with up to 12 hours of use on 2 AA alkaline batteries

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience freedom with this wireless instrument microphone system for guitarists.
  • Achieve excellent sound quality with a wide 60 Hz - 16 kHz frequency response.
  • Enjoy a reliable wireless range up to 300 feet, perfect for stage performances.
  • Easily adjust gain with settings from -3 dB to +9 dB on the bodypack transmitter.
  • Durable metal chassis receiver ensures longevity, ideal for touring musicians.
  • Operate for up to 12 hours on 2 AA batteries, minimizing interruptions during gigs.

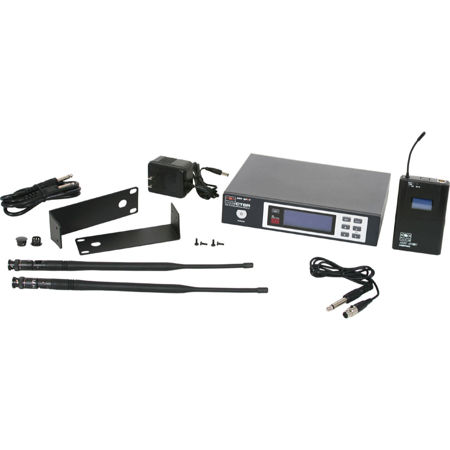

What's in the box:

  • Galaxy Audio CTS Series CTSR Receiver
  • MBP85 Bodypack Transmitter (2AA Batteries Not Included)
  • AS-GTR Guitar Cable
  • Single/Dual Rack Kit
  • Detachable BNC Antennas
  • Power Supply (for Receiver)
  • Galaxy Audio 3 Year Limited Warranty
