33% Off

Galaxy Audio CTS Series Wireless Headset Microphone System, Includes CTSR Receiver, MBP85 Bodypack Transmitter and HS-U3BK Uni-Directional Headset Microphone, 920 Selectable UHF Frequencies, Code J 514-537 MHz

SKU: GACTSR85HSJ MFR: CTSR/85HSJ
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless headset microphone system, perfect for presenters.
  • Enjoy freedom of movement with a reliable wireless microphone, ideal for active performances.
  • This headset features 920 selectable UHF frequencies, ensuring a clear signal for any venue.
  • The uni-directional microphone minimizes background noise, providing focused sound quality.
  • Achieve a professional sound with a wide 60 Hz - 16 kHz frequency response for clear vocals.
  • With a 300' operating range, this wireless microphone offers flexibility on stage or in studios.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Galaxy Audio CTS System Specifications

System
  • Available Frequencies

    920

  • Frequency Ranges

    CODE J: 514-537 MHz

  • Transmitter Output

    5 mW, 10 mW, 20 mW

  • Band

    UHF

  • Operating Range

    Under Typical Conditions 300' (92 m), actual range depends on RF signal absorption, reflection and interference

  • Audio Frequency Response

    (+/-3 dB) 60 Hz - 16 Hz

  • Total Harmonic Distortion

    (+/-30 kHz deviation, 1 kHz tone): <1%

  • Dynamic Range

    >90 dB A-weighted

  • Operating Temperature Range

    14 to 122 deg. F (-10 to 50 deg. C), battery characteristics may limit this range

Receiver

Jump to...
  • Audio Output Level

    +/-30kHz deviation 1kHz tone:
    XLR Connector (into 600 Ohms load) 6 dBV
    1/4" Connector (into 3 k Ohms load) 0 dBV

  • Output Connection

    1 Male XLR Balanced, 1/4" Unbalanced

  • Output Impedance

    XLR Connector 200 Ohms
    1/4" Connector 1 k Ohms

  • XLR Output

    Impedance Balanced
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: No Audio -

  • Sensitivity

    -102 dBm

  • Image Rejection

    >90 dB

  • Casing

    Metal Chassis EIA STANDARD 1/2 U

  • Power Requirements

    12 V DC at 500 mA, supplied by external power supply

Transmitter

Jump to...
  • Max Audio Input Level

    -6 dBV (-3 gain)

  • Gain Adjust

    -3 dB, 0 dB, +3 dB, +6 dB, +9 dB

  • RF Output

    5 mW, 10 mW, 20 mW

  • Input Impedance

    470 k Ohms

  • Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Battery Life

    About 12 hours (alkaline)

Headset Microphone

Jump to...
  • Sensitivity

    -65 +/- 4dB (0dB=1V/UBR 1KHz)

  • Frequency Response

    50 Hz - 18kHz

  • Output Impedance

    2KOhms Max. (RL-2.2KOhms)

  • Directionality

    Uni-directional

  • Working Voltage Range

    1 to 10V

  • Standard Working Voltage

    3V

  • Current Consumption

    250UA (Max.)

  • Maximum Input Sound Pressure

    110dB SPL

  • S/N Ratio

    >38dB

General

Jump to...
  • Dimensions (HxWxD)

    CTSR Receiver: 1.7 x 8.3 x 6.3" (4.32 x 21.08 x 16.00cm)
    MBP85 Transmitter: 3.85 x 2.51 x 0.90" (9.78 x 6.38 x 2.29cm)

  • Weight

    CTSR Receiver: 31.7 oz (898.68g)
    MBP85 Transmitter: 3.17 oz (89.87g)

  • UPC Code

    691281007569

About Galaxy Audio CTS System

The CTS Series wireless systems feature 920 selectable UHF frequencies, IR Sync, Auto Scan, BNC detachable diversity antennas, LCD display and much, much more. CTS series also features 16 frequency groups with 14 channels per group; 2 groups can be user defined. Featuring Galaxy's new HH85 handheld transmitter with LCD display (frequency, battery life, mute, gain, RF signal strength) and magnesium alloy metal chassis for road worthy durability, CTS is a tour grade system offering reliability and performance for the professional musician.

• 300' Range
• Auto Scan
• True Diversity
• 920 Selectable UHF Frequencies
• Single/Dual Rack Mount Included

CTSR Receiver
• Transmitter Status Display
• IR Sync Receiver to Transmitter
• AF/RF Indicators
• XLR / 1/4" Outputs
• Detachable BNC Antennas
• Metal Chassis

MBP85 Transmitter
Body Pack Transmitter for the CTS Wireless Microphone System.

• Power/Mute Button
• LCD Display (Frequency, Battery Life, Mute, Gain, RF Power)
• IR Sync Transmitter to Receiver
• Selectable Power 5, 10, 20 mW
• Selectable Gain -3, 0, 3, 6, 9
• Operates on 2 AA Batteries (up to 12 hours Alkaline)

HS-U3BK Uni-Directional Headset
This uni-directional headset comes standard with the ECM, PSE, TRC, DHT, DHX, CTS & Traveler Headset Systems. It's comfortable wrap around design goes over both ears and helps ensure that this mic will stay in place. The HS-U3BK can be wired to work with transmitters made by Galaxy Audio, Shure, Sennheiser, AKG and Audio Technica, as well as most other brands of wireless microphone systems.

• Uni directional headset microphone
• Hooks over both ears

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless headset microphone system, perfect for presenters.
  • Enjoy freedom of movement with a reliable wireless microphone, ideal for active performances.
  • This headset features 920 selectable UHF frequencies, ensuring a clear signal for any venue.
  • The uni-directional microphone minimizes background noise, providing focused sound quality.
  • Achieve a professional sound with a wide 60 Hz - 16 kHz frequency response for clear vocals.
  • With a 300' operating range, this wireless microphone offers flexibility on stage or in studios.

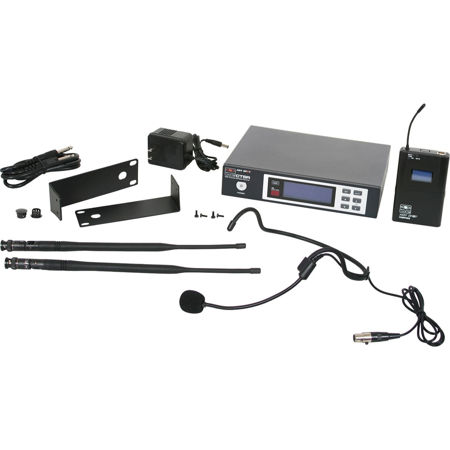

What's in the box:

  • Galaxy Audio CTSR Receiver
  • MBP85 Bodypack Transmitter (2AA Batteries Not Included)
  • HS-U3BK Uni-Directional Headset Microphone
  • Detachable BNC Antennas
  • Single/Dual Rack Mount Kit
  • Power Adapter (for Receiver)
  • 1/4 " Audio Cable
  • Galaxy Audio 3 Year Limited Warranty (1 Year on Microphone)
