34% Off

Galaxy Audio CTS Series Wireless Lavalier Microphone System, Includes CTSR Receiver, MBP85 Bodypack Transmitter and LV-U3BK Uni-Directional Lavalier Microphone, 920 Selectable UHF Frequencies, Code J 514-537 MHz

SKU: GACTSR85LVJ MFR: CTSR/85LVJ
Earn VIP Reward Points

Key Features

  • Achieve crystal-clear audio with this wireless lavalier microphone system, ideal for presentations.
  • Enjoy freedom with a 300' operating range; this lavalier wireless microphone is perfect for stages.
  • The included rack mount kit makes integrating this wireless microphone system into your setup easy.
  • Experience reliable performance with 920 selectable UHF frequencies on this wireless microphone.
  • Capture every nuance; the uni-directional lavalier microphone delivers exceptional sound quality.
  • Get up to 12 hours of battery life with this wireless lavalier microphone, great for long events.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Galaxy Audio CTS System Specifications

System
  • Available Frequencies

    920

  • Frequency Ranges

    CODE J 514 - 537 MHz

  • Transmitter Output

    5 mW, 10 mW, 20 mW

  • Band

    UHF

  • Operating Range

    Under Typical Conditions 300' (92 m), actual range depends on RF signal absorption, reflection and interference

  • Audio Frequency Response

    (+/-3 dB) 60 Hz - 16 Hz

  • Total Harmonic Distortion

    (+/-30 kHz deviation, 1 kHz tone): <1%

  • Dynamic Range

    >90 dB A-weighted

  • Operating Temperature Range

    14 to 122 deg. F (-10 to 50 deg. C), battery characteristics may limit this range

Receiver

Jump to...
  • Audio Output Level

    +/-30kHz deviation 1kHz tone:
    XLR Connector (into 600 Ohms load) 6 dBV
    1/4" Connector (into 3 k Ohms load) 0 dBV

  • Output Connection

    1 Male XLR Balanced, 1/4" Unbalanced

  • Output Impedance

    XLR Connector 200 Ohms
    1/4" Connector 1 k Ohms

  • XLR Output

    Impedance Balanced
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: No Audio -

  • Sensitivity

    -102 dBm

  • Image Rejection

    >90 dB

  • Casing

    Metal Chassis EIA STANDARD 1/2 U

  • Power Requirements

    12 V DC at 500 mA, supplied by external power supply

Transmitter

Jump to...
  • Max Audio Input Level

    -6 dBV (-3 gain)

  • Gain Adjust

    -3 dB, 0 dB, +3 dB, +6 dB, +9 dB

  • RF Output

    5 mW, 10 mW, 20 mW

  • Input Impedance

    470 k Ohms

  • Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Battery Life

    About 12 hours (alkaline)

Microphone

Jump to...
  • Sensitivity

    -65 +/- 4dB (0dB=1V/UBR 1kHz)

  • Frequency Response

    50Hz - 19kHz

  • Output Impedance

    2KOhms Max. (RL-2.2KOhms)

  • Directionality

    Uni-directional

  • Working Voltage Range

    1 to 10V

  • Standard Working Voltage

    3V

  • Current Consumption

    250UA (Max.)

  • Maximum Input Sound Pressure

    110dB SPL

  • S/N Ratio

    >44dB

General

Jump to...
  • Dimensions (HxWxD)

    CTSR Receiver: 1.7 x 8.3 x 6.3" (4.32 x 21.08 x 16.00cm)
    MBP85 Transmitter: 3.85 x 2.51 x 0.90" (9.78 x 6.38 x 2.29cm)

  • Weight

    CTSR Receiver: 31.7 oz (898.68g)
    MBP85 Transmitter: 3.17 oz (89.87g)

  • UPC Code

    691281007583

About Galaxy Audio CTS System

Enhance your audio performance with the CTS Series Wireless Lavalier Microphone System. This professional-grade system, designed by the reputable Galaxy Audio, is an advanced solution for high-quality, reliable wireless audio transmission.

The system includes the CTSR Receiver, the MBP85 Bodypack Transmitter, and the LV-U3BK Uni-Directional Lavalier Microphone. It boasts 920 selectable UHF frequencies, offering a wide range of options for different applications and environments. The system operates within the 514-537 MHz frequency range, ensuring clear and interference-free audio transmission.

The CTS Series system is equipped with IR Sync and Auto Scan features, making it easy to set up and use. The BNC detachable diversity antennas ensure a strong signal, while the LCD display provides essential information such as frequency, battery life, mute status, gain, and RF signal strength.

The system also features Galaxy's new HH85 handheld transmitter, housed in a durable magnesium alloy metal chassis for road-worthy durability. The transmitter has a power/mute button and an LCD display for easy operation. It operates on 2 AA batteries, offering up to 12 hours of use with alkaline batteries.

The included MBP85 Bodypack Transmitter is designed for the CTS Wireless Microphone System. It offers selectable power and gain options, allowing you to customize your audio output.

The LV-U3BK Uni-Directional Lavalier Microphone, included in the package, is compatible with transmitters made by Galaxy Audio, Shure, Sennheiser, AKG, and Audio Technica, as well as most other brands of wireless microphone systems. This makes the CTS Series system a versatile choice for any live performance or broadcast setting.

With a range of up to 300 feet, true diversity, and XLR / 1/4" outputs, the CTS Series Wireless Lavalier Microphone System is a reliable, high-quality choice for professionals seeking advanced audio equipment.

Galaxy Audio CTS System Features

  • Professional-grade wireless lavalier microphone system by Galaxy Audio
  • Includes CTSR Receiver, MBP85 Bodypack Transmitter, & LV-U3BK Uni-Directional Lavalier Microphone
  • Offers 920 selectable UHF frequencies within 514-537 MHz range for clear audio transmission
  • Equipped with IR Sync, Auto Scan, and BNC detachable diversity antennas for easy setup and strong signal
  • Features durable HH85 handheld transmitter with LCD display and magnesium alloy metal chassis
  • Compatible with transmitters from Galaxy Audio, Shure, Sennheiser, AKG, and Audio Technica, among others

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Achieve crystal-clear audio with this wireless lavalier microphone system, ideal for presentations.
  • Enjoy freedom with a 300' operating range; this lavalier wireless microphone is perfect for stages.
  • The included rack mount kit makes integrating this wireless microphone system into your setup easy.
  • Experience reliable performance with 920 selectable UHF frequencies on this wireless microphone.
  • Capture every nuance; the uni-directional lavalier microphone delivers exceptional sound quality.
  • Get up to 12 hours of battery life with this wireless lavalier microphone, great for long events.

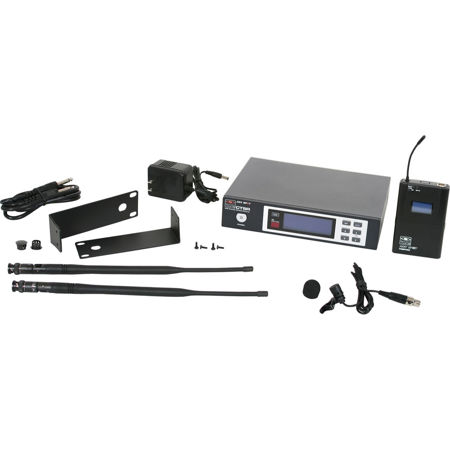

What's in the box:

  • Galaxy Audio CTSR Receiver
  • MBP85 Bodypack Transmitter (2AA Batteries Not Included)
  • LV-U3BK Lavalier Microphone
  • Detachable BNC Antennas
  • Single/Dual Rack Mount Kit
  • Power Adapter (for Receiver)
  • 1/4 " Audio Cable
  • Galaxy Audio 3 Year Limited Warranty (1 Year on Microphone)
