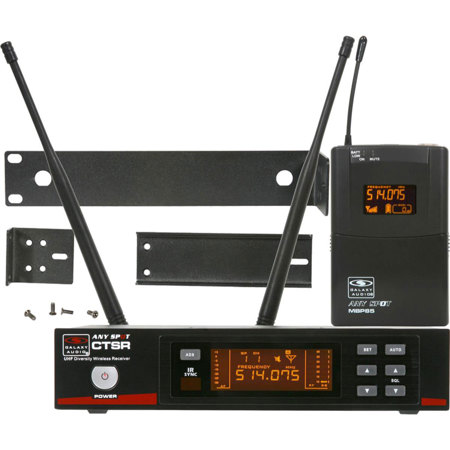

Galaxy Audio CTSR Receiver, MBP85 Transmitter, HS-U3BK Mic System, CODE L
See all Galaxy Audio items

Galaxy Audio Any Spot CTS Series Wireless Microphone Guitar System, Includes CTSR Receiver, MBP85 Bodypack Transmitter and HS-U3BK Uni-Directional Headset Microphone, 920 Selectable UHF Frequencies, CODE L: 655-679MHz

SKU: GACTSR85X
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the Auto Scan feature on the Any Spot CTS Series Wireless Microphone Guitar System?

The Auto Scan feature is designed to automatically search for and identify an available frequency. This simplifies the setup process and ensures optimal performance of the wireless system.

What is the advantage of the IR Sync feature in this wireless system?

The IR Sync feature allows for easy synchronization of the bodypack or handheld transmitter to the receiver. This ensures a seamless, accurate setup and reduces the potential for technical issues during use.

Can the HS-U3BK Uni-Directional Headset Microphone be used with other brands of wireless microphone systems?

Yes, the HS-U3BK Uni-Directional Headset Microphone can be wired to work with transmitters from Galaxy Audio, Shure, Sennheiser, AKG, and Audio Technica, as well as most other brands of wireless microphone systems.

What does the single/dual rack mount kit included in the package offer?

The single/dual rack mount kit provides flexible installation options. You can mount one unit in one rack space or mount two receivers side by side in one rack space, making it a convenient solution for various professional settings.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Galaxy Audio CTS System Specifications

System

System

Jump to...

  • Available Frequencies

    920

  • Frequency Range

    CODE L: 655 - 679 MHz

  • Transmitter Output

    5 mW, 10 mW, 20 mW

  • Band

    UHF

  • Operating Range

    Under Typical Conditions 300' (92 m), actual range depends on RF signal absorption, reflection and interference

  • Audio Frequency Response

    (+/-3 dB) 60 Hz - 16 Hz

  • Total Harmonic Distortion

    (+/-30 kHz deviation, 1 kHz tone): <1%

  • Dynamic Range

    >90 dB A-weighted

  • Operating Temperature Range

    14 to 122 deg. F (-10 to 50 deg. C), battery characteristics may limit this range

Receiver

Jump to...

  • Audio Output Level

    +/-30kHz deviation 1kHz tone:
    XLR Connector (into 600 Ohms load) 6 dBV
    1/4" Connector (into 3 k Ohms load) 0 dBV

  • Output Connection

    1 Male XLR Balanced, 1/4" Unbalanced

  • Output Impedance

    XLR Connector 200 Ohms
    1/4" Connector 1 k Ohms

  • XLR Output

    Impedance Balanced
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: No Audio -

  • Sensitivity

    -102 dBm

  • Image Rejection

    >90 dB

  • Casing

    Metal Chassis EIA STANDARD 1/2 U

  • Power Requirements

    12 V DC at 500 mA, supplied by external power supply

Transmitter

Jump to...

  • Max Audio Input Level

    -6 dBV (-3 gain)

  • Gain Adjust

    -3 dB, 0 dB, +3 dB, +6 dB, +9 dB

  • RF Output

    5 mW, 10 mW, 20 mW

  • Input Impedance

    470 k Ohms

  • Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Battery Life

    About 12 hours (alkaline)

Headset Microphone

Jump to...

  • Sensitivity

    -65 +/- 4dB (0dB=1V/UBR 1KHz)

  • Frequency Response

    50 Hz - 18kHz

  • Output Impedance

    2KOhms Max. (RL-2.2KOhms)

  • Directionality

    Uni-directional

  • Working Voltage Range

    1 to 10V

  • Standard Working Voltage

    3V

  • Current Consumption

    250UA (Max.)

  • Maximum Input Sound Pressure

    110dB SPL

  • S/N Ratio

    >38dB

General

Jump to...

  • Dimensions (HxWxD)

    CTSR Receiver: 1.7 x 8.3 x 6.3" (4.32 x 21.08 x 16.00cm)
    MBP85 Transmitter: 3.85 x 2.51 x 0.90" (9.78 x 6.38 x 2.29cm)

  • Weight

    CTSR Receiver: 31.7 oz (898.68g)
    MBP85 Transmitter: 3.17 oz (89.87g)

About Galaxy Audio CTS System

It's time to elevate your live performances with the Any Spot CTS Series Wireless Microphone Guitar System. Expertly engineered for a diverse range of performing arts, this high-quality system is equally at home in a worship facility or a touring company's wireless rack system, demonstrating its versatility and adaptability.

The CTS system is equipped with 920 selectable UHF frequencies, ensuring optimal compatibility with various wireless systems and devices. The built-in Auto Scan feature simplifies the process of finding an open frequency, making it a breeze to set up and start performing. If you prefer, you can also choose from 14 predetermined channels in each of 18 groups, providing a wealth of open channels at your disposal.

The innovative IR Sync feature allows you to effortlessly sync the included MBP85 bodypack transmitter or any handheld device to the CTSR receiver, ensuring accurate and seamless setup. The receiver's display provides real-time information on the transmitter's battery life, and a Lock Function prevents any unwanted changes to the transmitter settings.

The MBP85 bodypack transmitter offers variable gain adjustment and three transmitter RF power adjustments (5mW, 10mW, and 20mW), giving you complete control over your audio output. The system also includes a single/dual rack mount kit, allowing for flexible installation options.

The package is completed with the HS-U3BK Uni-Directional Headset Microphone. This comfortable, wrap-around design fits securely over both ears, ensuring the microphone stays in place throughout your performance. The HS-U3BK can be wired to work with transmitters made by Galaxy Audio, Shure, Sennheiser, AKG, and Audio Technica, as well as most other brands of wireless microphone systems.

With the Any Spot CTS Series Wireless Microphone Guitar System, you're investing in a durable, professional, and advanced audio solution that delivers clear, reliable transmission in even the most challenging environments.

Galaxy Audio CTS System Features

  • CTS System:
  • 300' Range
  • Auto Scan
  • True Diversity
  • 920 Selectable UHF Frequencies
  • Single/Dual Rack Mount Included
  • CTSR Receiver:
  • Transmitter Status Display
  • IR Sync Receiver to Transmitter
  • AF/RF Indicators
  • XLR / 1/4" Outputs
  • Detachable BNC Antennas
  • Metal Chassis
  • MBP85 Transmitter:
  • Power/Mute Button
  • LCD Display (Frequency, Battery Life, Mute, Gain, RF Power)
  • IR Sync Transmitter to Receiver
  • Selectable Power 5, 10, 20 mW
  • Selectable Gain -3, 0, 3, 6, 9
  • Operates on 2 AA Batteries (up to 12 hours Alkaline)
  • HS-U3BK Microphone:
  • Uni directional headset microphone
  • Hooks over both ears

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • 920 selectable UHF frequencies for versatile and reliable wireless performance
  • Auto Scan and IR Sync for quick, effortless setup and frequency synchronization
  • MBP85 bodypack transmitter with variable gain and RF power adjustments
  • Uni-directional HS-U3BK headset microphone with secure over-ear design
  • Compatible with leading brands like Shure, Sennheiser, and Audio Technica
  • Includes single/dual rack mount kit for professional, organized installations

What's in the box:

  • Galaxy Audio CTSR Receiver
  • MBP85 Bodypack Transmitter (2AA Batteries Not Included)
  • HS-U3BK Uni-Directional Headset Microphone
  • Detachable BNC Antennas
  • Single/Dual Rack Mount Kit
  • Power Adapter (for Receiver)
  • 1/4 " Audio Cable
  • Galaxy Audio 3 Year Limited Warranty (1 Year on Microphone)
