Galaxy Audio DHXR4 Specifications

  • Frequency Range

    CODE N 518 - 542 MHz

  • Audio Output Level

    XLR Connector (into 600 Ohms load) -12 dBV
    1/4" Connector (into 3 k Ohms load) -18 dBV (+/-30 kHz deviation, 1 kHz tone)

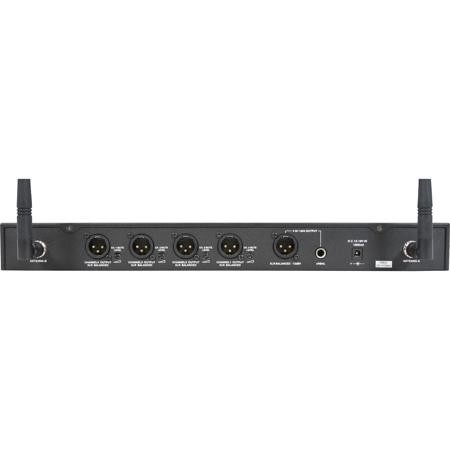

  • Output Connections

    Four Male XLR Balanced
    1 Mixed XLR Balanced
    1 Mix 1/4" Unbalanced

  • Output Impedance

    XLR connector 200 Ohms
    1/4" connector 1 kOhms

  • XLR Output

    Impedance balanced:
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: No Audio -

  • Sensitivity

    -93 dBm for 30 dB

  • Image Rejection

    >90 dB

  • Casing

    Metal Chassis EIA STANDARD 1 U

  • Power Requirements

    12-18 V DC at 1000 mA, supplied by external power supply

  • Dimensions (HxWxD)

    1.7 x 16.1 x 11" (4.32 x 40.89 x 27.94cm)

  • Weight

    117 oz (3316.89g)

  • UPC Code

    691281005992

About Galaxy Audio DHXR4

The DHXR4 offers the same great features as the DHTRQUAD system, with 4 receivers in a single rack space chassis. The DHXR4 offers 4 independent receivers, each with Auto Scan, IR Sync and 120 selectable channels. The receivers have also been improved with Tone-key squelch for improved rejection of outside interference. The DHXR4 has a built in antenna combiner and power distributor. The DHXR4 has 4 independent XLR outputs (one for each channel) as well as mixed output, allowing the user to submix the microphones on the DHXR4 and come out of one XLR or 1/4" output. The DHXR4 can be used with any 65 or 77 Series Handheld or Body Pack transmitter.

• 300' Range
• Auto Scan
• 120 Selectable UHF Frequencies
• Diversity Antennas
• Rack Mount Kit Included

DHXR4 Four Receiver Rack Mount System
• LCD Display
• IR Sync Receiver to Transmitter
• Frequency with Channel and Group Selector
• AF/RF Indicators
• Tone-key Squelch
• Squelch Adjustment
• XLR/1/4" Output
• Detachable BNC Antennas
• Metal Chassis

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience superior audio clarity with this wireless receiver's low latency performance.
  • Enjoy flexible connectivity with XLR & 1/4" output options on this wireless system.
  • This 4-channel wireless receiver operates between 518 - 542 MHz for reliable transmission.
  • Rack mount design makes setup easy for professional audio and live sound applications.
  • Get crystal-clear sound with >90 dB image rejection, minimizing unwanted interference.
  • Achieve balanced audio with impedance balanced XLR outputs, ensuring optimal signal quality.

What's in the box:

  • Galaxy Audio DHXR4 Receiver
  • 1/4 " to 1/4 " Audio Cable
  • Power Supply
  • 2x Antennas
  • 2x Extension Kit
  • 2x Rack Ears
  • Quick Start Guide
  • 2x Antenna Plugs
  • 6x Screws
  • Galaxy Audio 3 Year Limited Warranty
