Galaxy Audio DHX Wireless Mic System, Receiver and Bodypack Tx, D: 584-607MHz
See all Galaxy Audio items

Galaxy Audio Any Spot DHX Wireless Microphone System, Includes DHXR Receiver and MBP77 Bodypack Transmitter, Frequency D: 584 - 607MHz

SKU: GADHXR77D
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular

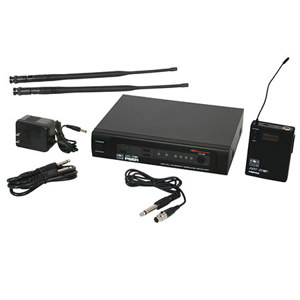

Galaxy Audio CTS Guitar System, CTSR Receiver & MBP85 Transmitter, 584-607 MHz
$709.99
$469.99
undefined undefined: Picture 1 regular
Galaxy Audio CTSR Receiver, MBP85 Transmitter and HS-U3BK Mic, Code D 584-607MHz
$709.99
$469.99
undefined undefined: Picture 1 regular
Galaxy Audio CTSR Receiver, MBP85 Transmitter and HS-U3BK Mic, Code J 514-537MHz
$709.99
$469.99
undefined undefined: Picture 1 regular
Galaxy Audio CTSR Receiver, MBP85 Transmitter & LV-U3BK Mic, Code D 584-607 MHz
$709.99
$469.99
undefined undefined: Picture 1 regular
Galaxy Audio CTSR Receiver, MBP85 Transmitter & LV-U3BK Mic, Code J 514-537 MHz
$709.99
$469.99
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Galaxy Audio DHXR/77D Specifications

DHX System

DHX System

Jump to...

  • Frequency Range

    CODE D 584 - 607 MHz

  • Transmitter Output Level

    20 mW

  • Band

    UHF

  • Operating Range

    Under Typical Conditions 300' (92m), actual range depends on RF signal absorption, reflection and interference

  • Audio Frequency Response

    (+/-3 dB) 60 Hz - 16 kHz

  • Total Harmonic Distortion

    (+/-30 kHz deviation, 1 kHz tone): <1%

  • Dynamic Range

    >90 dB A-weighted

  • Operating Temperature Range

    14 to 122 deg. F (-10 to 50 deg. C), battery characteristics may limit this range

Receiver

Jump to...

  • Audio Output Level

    XLR Connector (into 600 Ohms load) -12 dBV
    1/4" Connector (into 3 k Ohms load) -18 dBV (+/-30 kHz deviation, 1 kHz tone)

  • Output Connections

    1 Male XLR Balanced
    1 1/4" Unbalanced

  • Output Impedance

    XLR connector 200 Ohms
    1/4" connector 1 kOhms

  • XLR Output

    Impedance balanced:
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: No Audio -

  • Sensitivity

    -93 dBm for 30 dB

  • Image Rejection

    >90 dB

  • Casing

    Metal Chassis EIA STANDARD 1/2 U

  • Power Requirements

    12-18 V DC at 1000 mA, supplied by external power supply

Bodypack Transmitter

Jump to...

  • Max Audio Input Level

    0 dBV maximum at mic gain position
    +10 dBV maximum at 0 dB gain position
    +20 dBV maximum at -10 dB gain

  • Gain Adjust

    Mic / 0 dB / -10 dB

  • RF Output

    20 mW

  • Input Impedance

    470 kOhms

  • Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Battery Life

    About 6 hours (alkaline)

General

Jump to...

  • Dimensions (HxWxD)

    Receiver: 1.7 x 8.3 x 6.3" (4.32 x 21.08 x 16cm)
    Bodypack Transmitter: 3.5 x 2.6 x 1" (8.89 x 6.60 x 2.54cm)

  • Weight

    Receiver: 31.7 oz (898.68g)
    Bodypack Transmitter without Batteries: 3.0 oz (85.05g)

Other

Jump to...

  • UPC Code

    691281006944

About Galaxy Audio DHXR/77D

The DHX packs the tools for the pro. The DHX has Auto Scan, where it will search for an available frequency to use and then IR Sync the frequency to a transmitter. The large LCD display shows channel number, frequency, lock mode and volume output. The DHX receiver has an easy to read RF and AF indicator. The UHF diversity antennas ensure quality operation. The DHX works great with any 77 or 65 Series transmitter.

• 300' Range
• Auto Scan
• 120 Selectable UHF Frequencies
• Diversity Antennas
• Single/Dual Rack Kit Included

DHXR Receiver
• LCD Display
• IR Sync Receiver to Transmitter
• Frequency with Channel and Group Selector
• AF/RF Indicators
• Tone-key Squelch
• Squelch Adjustment
• XLR/1/4" Output
• Detachable BNC Antennas
• Metal Chassis

MBP77 Bodypack Transmitter
• LCD Display
• 3 Bar Battery Life Indicator
• Channel Selector
• On / Off / Mute Button
• IR Sync Transmitter to Receiver
• Mic/0/-10dB
• 10 mW
• Manually Set Frequency
• Works with WMC-CGR Charger Station
• Operated on 2 AA Batteries (up to 6 hours Alkaline)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

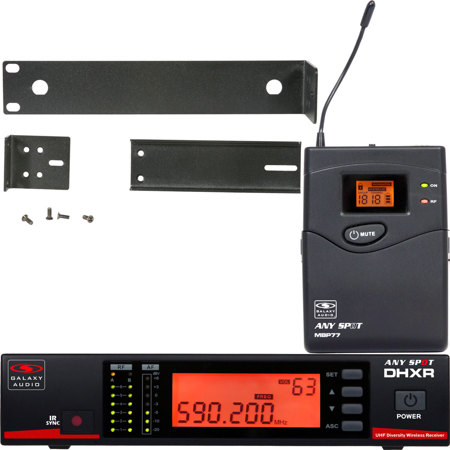

What's in the box:

  • Galaxy Audio DHXR Receiver
  • MBP77 Bodypack Transmitter (2AA Batteries Not Included)
  • Single/Dual Rack Kit
  • 1/4 " to 1/4 " Audio Cable
  • Power Supply
  • 2x Antennas
  • 6x Rack Ear Screws
  • 2x Coupler Screws
  • 2x Antenna Plugs
  • Quick Start Guide
  • Galaxy Audio 3 Year Limited Warranty
