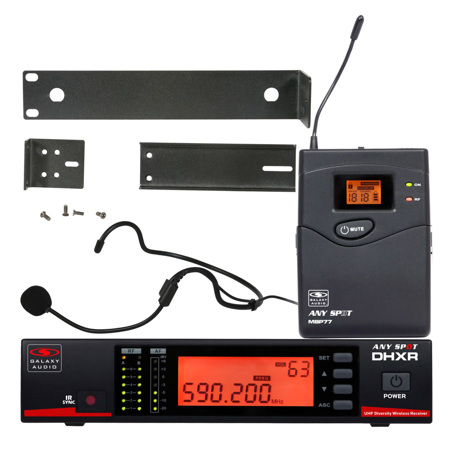

Galaxy Audio DHX Headset Mic System, DHXR Receiver, Transmitter & Headset Mic Specifications

System
  • Available Frequencies

    120

  • Transmitter Output Level

    20 mW

  • Band

    UHF

  • Operating Range

    Under Typical Conditions 300' (92m), actual range depends on RF signal absorption, reflection and interference

  • Audio Frequency Response

    (+/-3 dB) 60 Hz - 16 kHz

  • Total Harmonic Distortion

    (+/-30 kHz deviation, 1 kHz tone): <1%

  • Dynamic Range

    >90 dB A-weighted

  • Operating Temperature Range

    14 to 122 deg. F (-10 to 50 deg. C) battery characteristics may limit this range

Receiver

Jump to...
  • Audio Output Level

    +/-30 kHz deviation, 1 kHz tone:
    XLR Connector (into 600 Ohms load) -12 dBV
    1/4" Connector (into 3 k Ohms load) -18 dBV

  • Output Connections

    1x Male XLR Balanced
    1x 1/4" Unbalanced

  • Output Impedance

    XLR connector 200 Ohms
    1/4" connector 1 k Ohms

  • XLR Output

    Impedance balanced
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: No Audio -

  • Sensitivity

    -93 dBm for 30 dB

  • Image Rejection

    >90 dB

  • Casing

    Metal Chassis EIA STANDARD 1/2 U

  • Power Requirements

    12-18 V DC at 1000 mA, supplied by external power supply

Transmitter

Jump to...
  • Max Audio Input Level

    0 dBV maximum at mic gain position
    +10 dBV maximum at 0 dB gain position.
    +20 dBV maximum at -10 dB gain

  • Gain Adjust

    Mic / 0 dB / -10 dB

  • RF Output

    20 mW

  • Input Impedance

    470k Ohms

  • Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Battery Life

    About 6 hours (alkaline)

Microphone

Jump to...
  • Sensitivity

    -65 +/- 4dB (0dB=1V/UBR 1KHz)

  • Frequency Response

    50 Hz - 18kHz

  • Output Impedance

    2K Ohms Max. (RL-2.2K Ohms)

  • Directionality

    Uni-directional

  • Working Voltage Range

    1 - 10V

  • Standard Working Voltage

    3V

  • Current Consumption

    250UA (Max.)

  • Maximum Input Sound Pressure

    110dB SPL

  • S/N Ratio

    >38dB

General

Jump to...
  • Dimensions (HxWxD)

    Receiver: 1.7 x 8.3 x 6.3" (4.32 x 21.08 x 16.00cm)
    Transmitter: 3.5 x 2.6 x 1" (8.89 x 6.60 x 2.54cm)

  • Weight

    Receiver: 31.7 oz (898.68g)
    Transmitter: 3.0 oz (85.05g) (without batteries)

About Galaxy Audio DHX Headset Mic System, DHXR Receiver, Transmitter & Headset Mic

The DHX packs the tools for the pro. The DHX has Auto Scan, where it will search for an available frequency to use and then IR Sync the frequency to a transmitter. The large LCD display shows channel number, frequency, lock mode and volume output. The DHX receiver has an easy to read RF and AF indicator. The UHF diversity antennas ensure quality operation. The DHX works great with any 77 or 65 Series transmitter.

• 300' Range
• Auto Scan
• 120 Selectable UHF Frequencies
• Diversity Antennas
• Single/Dual Rack Kit Included

- DHXR Receiver -
• LCD Display
• IR Sync Receiver to Transmitter
• Frequency with Channel and Group Selector
• AF/RF Indicators
• Tone-key Squelch
• Squelch Adjustment
• XLR/1/4" Output
• Detachable BNC Antennas
• Metal Chassis

- MBP77 Transmitter -
• LCD Display
• 3 Bar Battery Life Indicator
• Channel Selector
• On / Off / Mute Button
• IR Sync Transmitter to Receiver
• Mic/0/-10dB
• 10 mW
• Manually Set Frequency
• Works with WMC-CGR Charger Station
• Operated on 2 AA Batteries (up to 6 hours Alkaline)

- HS-U3BK Microphone -
This uni-directional headset comes standard with the ECM, PSE, TRC, DHT, DHX, CTS & Traveler Headset Systems. It's comfortable wrap around design goes over both ears and helps ensure that this mic will stay in place. The HS-U3BK can be wired to work with transmitters made by Galaxy Audio, Shure, Sennheiser, AKG and Audio Technica, as well as most other brands of wireless microphone systems. It Hooks over both ears.

Product Documents

User Manual

What's in the box:

  • Galaxy Audio DHXR Receiver
  • MBP77 Body Pack Transmitter
  • HS-U3BK Headset Microphone
  • Single/Dual Rack Kit
  • Detachable BNC Antennas
  • Power Supply (for Receiver)
  • Galaxy Audio 3 Year Limited Warranty for Transmitter and Receiver
  • Galaxy Audio 3 Year Limited Warranty (1 Year on Headset Mic)
