Galaxy Audio DHX Wireless Mic System,DHXR Receiver&HH65SC Transmitter,584-607MHz
See all Galaxy Audio items

Galaxy Audio DHX Wireless Handheld Microphone System, Includes DHXR Receiver and HH65SC Condenser Transmitter, D Frequency 584-607 MHz

SKU: GADHXRHH65SC
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Galaxy Audio CTS System: Picture 1 regular
Galaxy Audio CTS Guitar System, CTSR Receiver & MBP85 Transmitter, 584-607 MHz
$709.99$469.99
Galaxy Audio CTS System: Picture 1 regular
Galaxy Audio CTSR Receiver, MBP85 Transmitter and HS-U3BK Mic, Code D 584-607MHz
$709.99$469.99
Galaxy Audio CTS System: Picture 1 regular
Galaxy Audio CTSR Receiver, MBP85 Transmitter & LV-U3BK Mic, Code D 584-607 MHz
$709.99$469.99
Galaxy Audio CTS System: Picture 1 regular
Galaxy Audio CTS Handheld System, CTSR Receiver & HH85 Transmitter, 584-607 MHz
$709.99$469.99
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Galaxy Audio DHX Wireless Mic System,DHXR Receiver&HH65SC Transmitter,584-607MHz Specifications

System

System

Jump to...

  • Available Frequencies

    120

  • Frequency Range

    CODE D 584 - 607 MHz

  • Transmitter Output Level

    20 mW

  • Band

    UHF

  • Operating Range

    Under Typical Conditions 300' (92m), actual range depends on RF signal absorption, reflection and interference

  • Audio Frequency Response

    (+/-3 dB) 60 Hz - 16 kHz

  • Total Harmonic Distortion

    (+/-30 kHz deviation, 1 kHz tone): <1%

  • Dynamic Range

    >90 dB A-weighted

  • Operating Temperature Range

    14 to 122 deg. F (-10 to 50 deg. C) battery characteristics may limit this range

Receiver

Jump to...

  • Audio O/P(+/-30kHz deviation, 1kHz tone)

    XLR Connector (into 600 Ohms load) -12 dBV
    1/4" Connector (into 3 k Ohms load) -18 dBV

  • Output Connections

    1x Male XLR Balanced
    1x 1/4" Unbalanced

  • Output Impedance

    XLR connector 200 Ohms
    1/4" connector 1 k Ohms

  • XLR Output

    Impedance balanced
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: No Audio -

  • Sensitivity

    -93 dBm for 30 dB

  • Image Rejection

    >90 dB

  • Casing

    Metal Chassis EIA STANDARD 1/2 U

  • Power Requirements

    12-18 V DC at 1000 mA, supplied by external power supply

Transmitter

Jump to...

  • Max Audio Input Level

    0 dBV

  • Gain Adjust

    Trim Pot

  • RF Output

    20 mW

  • Frequency Response

    60 Hz- 15 kHz

  • Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Battery Life

    About 6 hours (alkaline)

General

Jump to...

  • Dimensions

    Receiver (HxWxD): 1.7 x 8.3 x 6.3" (4.32 x 21.08 x 16.00cm)
    Transmitter (LxDia.): 9.6 x 2" (243.84 x 50.80mm)

  • Weight

    Receiver: 31.7 oz (898.68g)
    Transmitter: 10.6 oz (300.50g)

About Galaxy Audio DHX Wireless Mic System,DHXR Receiver&HH65SC Transmitter,584-607MHz

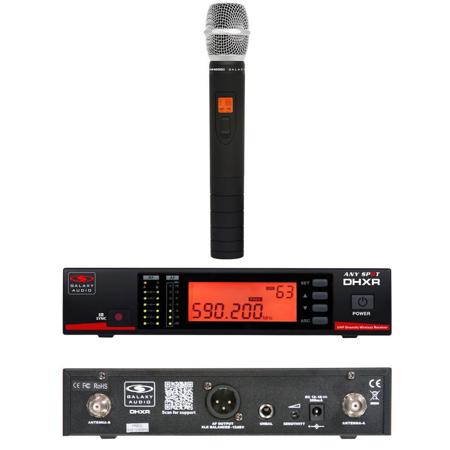

The DHX packs the tools for the pro. The DHX has Auto Scan, where it will search for an available frequency to use and then IR Sync the frequency to a transmitter. The large LCD display shows channel number, frequency, lock mode and volume output. The DHX receiver has an easy to read RF and AF indicator. The UHF diversity antennas ensure quality operation. The DHX works great with any 77 or 65 Series transmitter.

• 300' Range
• Auto Scan
• 120 Selectable UHF Frequencies
• Diversity Antennas
• Single/Dual Rack Kit Included

- DHXR Receiver -
• LCD Display
• IR Sync Receiver to Transmitter
• Frequency with Channel and Group Selector
• AF/RF Indicators
• Tone-key Squelch
• Squelch Adjustment
• XLR/1/4" Output
• Detachable BNC Antennas
• Metal Chassis

- HH65SC Condenser Handheld Microphone Transmitter -
Super Cardioid Condenser Handheld Microphone Transmitter for the DHX/DHXR4 Wireless Microphone System.

• LCD Display (4 Bar Battery Life Indicator, Group and Channel Indicator)
• IR Sync Transmitter to Receiver
• 10 mW
• Gain Adjustment
• Works with WMC-CGR Charger Station
• Operated on 2 AA Batteries (up to 6 hours Alkaline)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

What's in the box:

  • Galaxy Audio DHXR Receiver
  • HH65SC Condenser Handheld Microphone Transmitter
  • Single/Dual Rack Kit
  • Detachable BNC Antennas
  • Power Supply (for Receiver)
  • Galaxy Audio 3 Year Limited Warranty (1 Year on Mic)
