120
20 mW
UHF
Under Typical Conditions 300' (92m), actual range depends on RF signal absorption, reflection and interference
(+/-3 dB) 60 Hz - 16 kHz
(+/-30 kHz deviation, 1 kHz tone): <1%
>90 dB A-weighted
14 to 122 deg. F (-10 to 50 deg. C) battery characteristics may limit this range
XLR Connector (into 600 Ohms load) -12 dBV
1/4" Connector (into 3 k Ohms load) -18 dBV
1x Male XLR Balanced
1x 1/4" Unbalanced
XLR connector 200 Ohms
1/4" connector 1 k Ohms
Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio +
Pin 3: No Audio -
-93 dBm for 30 dB
>90 dB
Metal Chassis EIA STANDARD 1/2 U
12-18 V DC at 1000 mA, supplied by external power supply
0 dBV
Trim Pot
20 mW
60 Hz- 15 kHz
2 "AA" size alkaline or rechargeable batteries
About 6 hours (alkaline)
Receiver (HxWxD): 1.7 x 8.3 x 6.3" (4.32 x 21.08 x 16.00cm)
Transmitter (LxDia.): 9.6 x 2" (243.84 x 50.80mm)
Receiver: 31.7 oz (898.68g)
Transmitter: 10.6 oz (300.50g)
691281007019

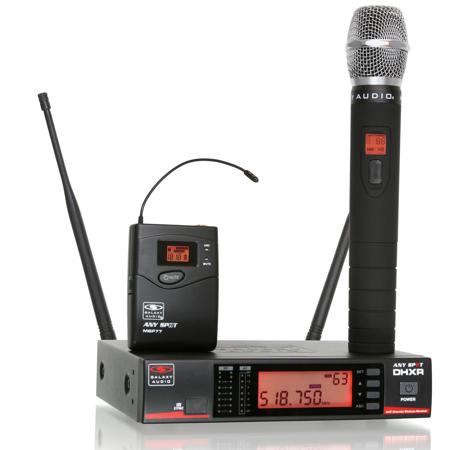

Before you step onto the stage, ensure your performance is backed by the professional-grade DHX Wireless Handheld Microphone System. This comprehensive audio solution from Galaxy Audio, a renowned brand in the professional audio equipment industry, includes the robust DHXR Receiver and the powerful HH65SC Condenser Transmitter.
Designed for durability and portability, this versatile system is perfect for live performances, whether you're singing, speaking, or playing a musical instrument. The wireless functionality allows you to move freely on stage, unhindered by wires, while the frequency range of 584-607 MHz ensures clear and reliable transmission.
The DHX system boasts an Auto Scan feature, which automatically searches for an available frequency and syncs it to the transmitter using IR Sync. The large, easy-to-read LCD display provides vital information such as channel number, frequency, lock mode, and volume output.
The DHXR Receiver, housed in a sturdy metal chassis, features detachable BNC antennas and an AF/RF indicator for easy monitoring of signal strength. It also offers a squelch adjustment and tone-key squelch for enhanced audio control. The receiver can be connected to your sound system via XLR/1/4" output and is rack-mountable, making it an ideal choice for professional settings like concerts, theater productions, and live events.
The HH65SC Condenser Handheld Microphone Transmitter, designed for the DHX/DHXR4 Wireless Microphone System, is a super cardioid condenser handheld microphone transmitter. It features an LCD display that shows a 4-bar battery life indicator, group, and channel indicator. The transmitter operates on 2 AA batteries, offering up to 6 hours of performance time with alkaline batteries. It also works with the WMC-CGR Charger Station and has a gain adjustment feature for optimal audio output.
With 120 selectable UHF frequencies and diversity antennas, the DHX Wireless Handheld Microphone System ensures quality operation over a range of up to 300'. The system is compatible with any 77 or 65 Series transmitter, and a single/dual rack kit is included for added convenience.
In summary, the DHX Wireless Handheld Microphone System is a high-quality, professional audio solution that offers reliability, versatility, and superior performance.
