120
20 mW
UHF
Under Typical Conditions 300' (92m), actual range depends on RF signal absorption, reflection and interference
(+/-3 dB) 60 Hz - 16 kHz
(+/-30 kHz deviation, 1 kHz tone): <1%
>90 dB A-weighted
14 to 122 deg. F (-10 to 50 deg. C) battery characteristics may limit this range
XLR Connector (into 600 Ohms load) -12 dBV
1/4" Connector (into 3 k Ohms load) -18 dBV
1x Male XLR Balanced
1x 1/4" Unbalanced
XLR connector 200 Ohms
1/4" connector 1 k Ohms
Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio +
Pin 3: No Audio -
-93 dBm for 30 dB
>90 dB
Metal Chassis EIA STANDARD 1/2 U
12-18 V DC at 1000 mA, supplied by external power supply
0 dBV
Trim Pot
20 mW
60 Hz- 15 kHz
2 "AA" size alkaline or rechargeable batteries
About 6 hours (alkaline)
Receiver (HxWxD): 1.7 x 8.3 x 6.3" (4.32 x 21.08 x 16.00cm)
Transmitter (LxDia.): 9.6 x 2" (243.84 x 50.80mm)
Receiver: 31.7 oz (898.68g)
Transmitter: 10.6 oz (300.50g)
691281007033

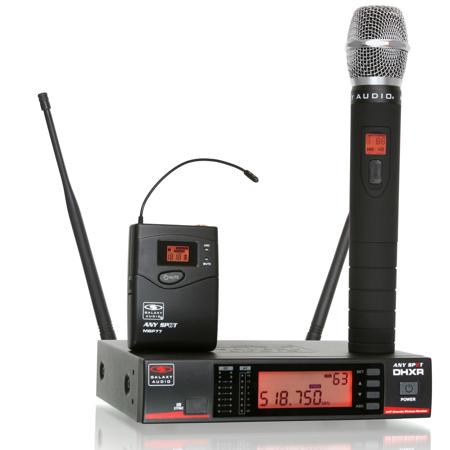

Overwhelm your audience with crystal clear sound quality using the advanced DHX Wireless Handheld Microphone System. This professional-grade system, designed by the reputable Galaxy Audio, is a reliable choice for live performances, ensuring a stable and high-quality audio experience.
The DHX system is equipped with an Auto Scan feature, which automatically searches for an available frequency and then IR Syncs the frequency to the transmitter, ensuring seamless operation. The large LCD display on the DHX receiver provides a wealth of information at a glance, including channel number, frequency, lock mode, and volume output.
The receiver also boasts an easy-to-read RF and AF indicator, providing real-time feedback on radio frequency and audio frequency levels. The system's UHF diversity antennas ensure quality operation, reducing the risk of signal dropouts and enhancing sound clarity.
The DHX system is compatible with any 77 or 65 Series transmitter and offers a wide operating range of up to 300 feet, making it an ideal choice for large venues. With 120 selectable UHF frequencies, you can easily find a clear channel, even in crowded RF environments.
The DHX receiver, housed in a durable metal chassis, features a single/dual rack kit, XLR/1/4" output, detachable BNC antennas, and a squelch adjustment feature. The Tone-key Squelch function helps eliminate unwanted noise when the transmitter is off, ensuring a clean, clear sound.
The system includes the HH65SC Condenser Handheld Microphone Transmitter, a super cardioid condenser microphone designed for the DHX/DHXR4 Wireless Microphone System. The transmitter features an LCD display showing a 4-bar battery life indicator, group, and channel indicator. It also has an IR Sync feature for syncing with the receiver, a gain adjustment feature, and operates on 2 AA batteries for up to 6 hours.
Whether you're a singer, speaker, or audio professional, the DHX Wireless Handheld Microphone System delivers the reliable, high-quality sound performance you need.
