Questions & Answers

FAQ

Can the ECMR/52 ECM Wireless Microphone System be used with different types of microphones?

Yes, the ECMR/52 system is designed to be compatible with various microphone types, including handheld, body pack with headset or lav, instrument cables, and Galaxy Audio's guitar bud or wireless headset.

What is the purpose of the Diversity Antennas on the ECMR Receiver?

The Diversity Antennas mounted on the front of the ECMR Receiver are designed to enhance signal reception and reduce the likelihood of audio dropouts, ensuring a more reliable performance.

How do I sync the transmitter with the ECMR Receiver?

The ECMR/52 system includes an IR Sync feature that allows for quick and easy synchronization between the transmitter and the receiver, simply by aligning them and selecting the desired channel.

What power source is required for the transmitters of the ECMR/52 system?

Both the HH52 and MBP52 transmitters are powered by 2AA batteries, providing a convenient and readily available power source for your performances.

Is the ECMR/52 ECM Wireless Microphone System suitable for outdoor events?

Yes, the system is designed to be durable and versatile, making it suitable for both indoor and outdoor events where a quality wireless microphone system is needed.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Galaxy Audio ECMR/52 Specifications

  • System: Frequency Range

    CODE D/584 - 607MHz

  • System: Transmitter Output Level

    10dBm

  • System: Band

    UHF

  • System: Operating Range

    Under Typical Conditions 150' (50m)

  • System: Note

    Actual range depends on RF signal absorption, reflection, and interference

  • System: Audio Frequency Response

    +/-3dB 70Hz - 16kHz

  • System: Total Harmonic Distortion

    +/-30kHz deviation 1kHz tone <1%

  • System: Dynamic Range

    >90dB A-weighted

  • System: Operating Temperature

    Range 14 deg.F to 122 deg.F (-10 C deg. to +50 C deg.)

  • Receiver: Audio Output Level

    (+/-30kHz deviation, 1kHz tone) XLR connector (into 600 Ohms load) -12dBV 1/4" connector (into 3kOhms load) -18dBV

  • Receiver: Output Impedance

    XLR connector 200Ohms 1/4" connector 1kOhms

  • Receiver: XLR output

    Impedance balanced

  • Receiver: Pin1

    Ground (cable shield)

  • Receiver: Pin2

    Audio

  • Receiver: Pin3

    No Audio

  • Receiver: Sensitivity

    -93dBm for 30dB

  • Receiver: Image Rejection

    >90dB

  • Receiver: Power Requirements

    13.5 V dc at 300mA, supplied by external power supply.

  • Transmitter: Max Audio Input Level

    0 dBV to +10 dBV

  • Transmitter: Gain Adjustment Range

    20dB

  • Transmitter: Input Impedance

    5KOhms

  • Transmitter: Power Requirements

    2 AA Batteries alkaline or NiMH rechargeable batteries

  • Transmitter: Battery Life

    About 8 hours

  • Dimensions

    Receiver: 1.75 x 9.25 x 4.75" / 4.45 x 23.50 x 12.07cm
    Transmitter: 3.3 x 2.6 x 1" / 8.38 x 6.60 x 2.54cm

  • Weight

    Transmitter (without Batteries): 3.0oz / 85.05g
    Receiver: 0.85lbs / 0.39kg

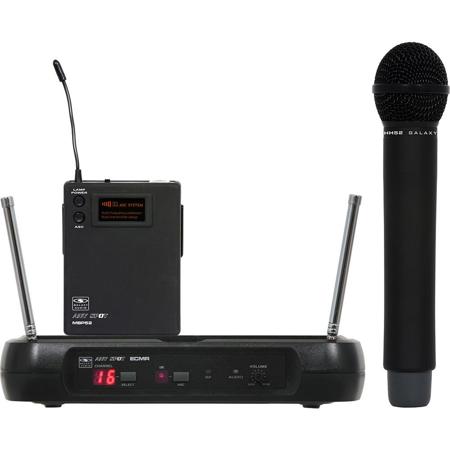

About Galaxy Audio ECMR/52

It's time to elevate your audio experience with the ECMR/52 ECM Wireless Microphone System, a durable and high-quality solution from the trusted brand, Galaxy Audio. This professional-grade wireless microphone system is designed to deliver reliable and crystal-clear sound, making it an ideal choice for live performances, theater productions, concerts, and any event where superior audio transmission is crucial.

The ECMR/52 system operates on the CODE D/584-607MHz frequency range, ensuring compatibility with a broad range of wireless microphone systems. It features 16 selectable channels, offering you the flexibility to find the perfect frequency for your specific environment. The system also includes IR Sync, which simplifies the process of syncing your transmitter and receiver for seamless operation.

One of the standout features of this system is the ECMR Receiver, housed in a rugged plastic casing for enhanced durability. It boasts Diversity Antennas mounted to the front, ensuring optimal signal reception and minimizing the risk of dropouts. This versatile receiver can be used as a rack mount or table top, providing you with multiple placement options to suit your needs.

The package also includes the MBP52 Bodypack Transmitter, a compact and lightweight device that allows for free movement during performances. It features a 0/-10/Mic selector switch, enabling you to adjust the input level based on your requirements. The MBP52, along with the HH52 transmitter, is powered by 2AA batteries, ensuring long-lasting performance.

Whether you're using a handheld microphone, a body pack with a headset or lav, an instrument cable, or Galaxy Audio's popular guitar bud or wireless headset the HS-UBKT, the ECMR/52 ECM Wireless Microphone System is designed to sync effortlessly, providing you with a versatile and reliable audio solution.

Galaxy Audio ECMR/52 Features

  • Receiver: 16 Selectable Channels
  • Receiver: Output Volume Control
  • Receiver: AF Level Indicator
  • Receiver: IR Sync
  • Receiver: Squelch Adjustment
  • Receiver: XLR or 1/4" Outputs
  • Receiver: Rugged Plastic Casing
  • Transmitter: IR Sync
  • Transmitter: Mic/0/-10 dB
  • Transmitter: 3 Position Switch
  • Transmitter: Low Battery Indicator

Product Documents

User Manual

Key Features

  • CODE D/584-607MHz operation for broad compatibility with diverse wireless systems
  • Versatile receiver design allows for both rack mount and tabletop setups to suit performance needs
  • MBP52 Bodypack Transmitter with 0/-10/Mic selector switch for adjustable input levels
  • IR Sync feature for easy syncing of transmitter and receiver, ensuring seamless audio performance

What's in the box:

  • Galaxy Audio ECMR Receiver
  • MBP52 Bodypack Transmitter
  • Galaxy Audio 3 Year Limited Warranty
