Galaxy Audio ECMR-52HS Wireless Headset Mic System
See all Galaxy Audio items

Galaxy Audio ECMR-52HS Wireless Headset Mic System

SKU: GAECMR52HS
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Galaxy Audio CTS System: Picture 1 regular
Galaxy Audio CTS Guitar System, CTSR Receiver & MBP85 Transmitter, 584-607 MHz
$709.99$469.99
Galaxy Audio CTS System: Picture 1 regular
Galaxy Audio CTSR Receiver, MBP85 Transmitter and HS-U3BK Mic, Code D 584-607MHz
$709.99$469.99
Galaxy Audio CTS System: Picture 1 regular
Galaxy Audio CTSR Receiver, MBP85 Transmitter and HS-U3BK Mic, Code J 514-537MHz
$709.99$469.99
Galaxy Audio CTS System: Picture 1 regular
Galaxy Audio CTSR Receiver, MBP85 Transmitter & LV-U3BK Mic, Code D 584-607 MHz
$709.99$469.99
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Galaxy Audio ECMR-52HS Specifications

  • Frequency Range

    655-679MHz

  • Transmitter Output Level

    10dBm

  • Band

    UHF

  • Operating Range

    Under Typical Conditions 150' (50m)

  • Audio Frequency Response

    +/-3dB 70Hz-16KHz

  • Total Harmonic Distortion

    +/-30KHz deviation 1KHz tone <1%

  • Dynamic Range

    >90dB A-weighted

  • Output Impedance

    XLR connector 200Ohms 1/2" connector 1KOhms

  • Operating Temperature

    Range 14deg.F to 122deg.F (-10 Cdeg. to +50 Cdeg.)

  • ECMR: No Of Channels

    16 Channels

  • ECMR: XLR output

    Impedance balanced

  • ECMR: Sensitivity

    -93dBm for 30dB

  • ECMR: Image Rejection

    >90dB

  • ECMR: Power Requirements

    13.5 V dc at 300mA, supplied by external power supply

  • ECMR: Dimensions (H x W x D)

    1.75 x 9.25 x 4.75" (44.45 x 235 x 121mm)

  • ECMR: Weight

    0.85 lbs (0.39kg)

  • MBP52: ECMR: Audio Output Level

    (+/-30KHz deviation, 1KHz tone) XLR connector (into 600 Ohms load) -12dBV 1/2" connector (into 3KOhms load) -18dBV

  • MBP52: Max Audio Input Level

    0 dBV to +10 dBV

  • MBP52: Gain Adjustment Range

    20dB

  • MBP52: Input Impedance

    5KOhms

  • MBP52: Battery

    2 AA Batteries alkaline or rechargeable batteries

  • MBP52: Battery Life

    About 8 hours

  • MBP52: Dimensions (H x W x D)

    3.3 x 2.6 x 1" (85 x 65 x 24mm)

  • MBP52: Weight

    3.0 oz (85g) (without batteries)

  • UPC Code

    691281805318

0 Accessories for Galaxy Audio ECMR-52HS Wireless Headset Mic System

About Galaxy Audio ECMR-52HS

The Galaxy Audio ECMR-52HS Wireless Headset Mic System has 16 selectable channels, IR Sync, Diversity Antennas mounted to the front of the rugged plastic casing. The ECM is available with a handheld, body pack with headset or lav, instrument cable, or with the popular guitar bud.

The ECMR can be used and will sync with either the HH52 or MBP52 transmitters. The HH52 has a gain control and an on/off switch. Both transmitters are powered by 2AA batteries. The MBP52 body pack transmitter has a 0/-10/Mic selector switch.

Galaxy Audio ECMR-52HS Features

  • 16 Selectable Channels
  • Output Volume Control
  • AF Level Indicator
  • Squelch Adjustment
  • XLR / 1/4" Outputs
  • Rugged Plastic Casing

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 16 Selectable Channels
  • Output Volume Control
  • AF Level Indicator
  • Squelch Adjustment
  • XLR / 1/4" Outputs
  • Rugged Plastic Casing

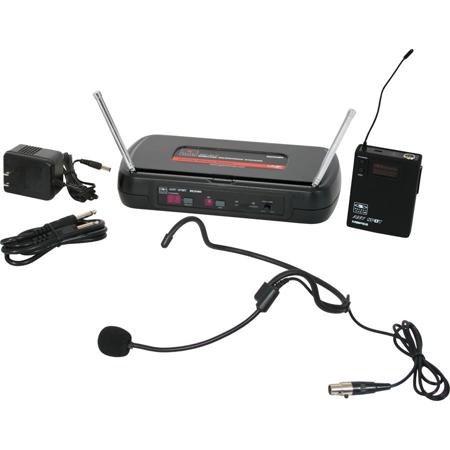

What's in the box:

  • Galaxy 1 x ECMR Receiver
  • 1 x MBP52 Transmitter
  • 1 x Uni-Directional Headset Mic
  • Galaxy warranty
