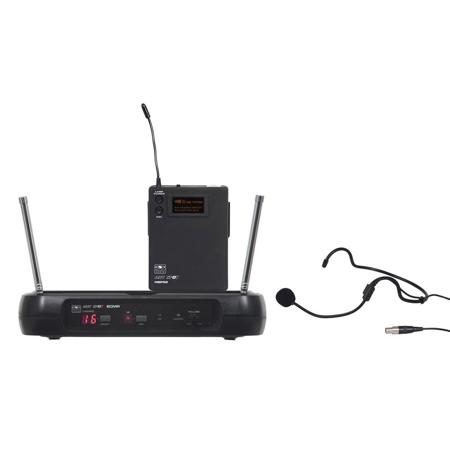

Galaxy Audio ECMR/52HS 16-Channel Wireless Headset System, D/584-607MHz, Includes ECMR Receiver, MBP52 Bodypack Transmitter, HS-U3BK Headset Microphone

SKU: GAECMR52HSD MFR: ECMR/52HSD
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this 16-channel wireless headset microphone system.
  • Enjoy freedom of movement with a 200ft range, perfect for dynamic presentations.
  • The HS-U3BK headset microphone delivers exceptional sound quality from 50Hz to 18kHz.
  • Achieve reliable performance with up to 8 hours of battery life on the bodypack transmitter.
  • Easily connect to your sound system with XLR and 1/4" connectors on the ECMR receiver.
  • This durable wireless microphone system operates flawlessly from 14°F to 122°F.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Galaxy Audio ECMR/52HS Specifications

  • ECM System: Available Channels

    16

  • ECM System: Frequency Range

    D / 584-607MHz

  • ECM System: Transmitter Output Level

    10mW

  • ECM System: Band

    UHF

  • ECM System: Operating Range

    200' (61m) Under Typical Conditions

  • ECM System: Audio Frequency Response

    +/-3dB 60Hz-16kHz

  • ECM System: Total Harmonic Distortion

    +/-30kHz deviation 1kHz tone <1%

  • ECM System: Dynamic Range

    > 90dB A-weighted

  • ECM System: Operating Temperature

    Range 14 deg. F to 122 deg. F (-10 deg. C to +50 deg. C)

  • ECMR: Audio Output Level

    (+/-30 kHz deviation, 1kHz tone)
    XLR connector (into 600 Ohms load) -12dBV
    1/4" connector (into 3kOhms load) -18dBV

  • ECMR: Output Impedance

    XLR connector 200 Ohms
    1/4" connector 1kOhms

  • ECMR: XLR output

    Impedance balanced
    Pin1: Ground (cable shield)
    Pin2: Audio
    Pin3: No Audio

  • ECMR: Image Rejection

    > 90dB

  • ECMR: Power Requirements

    13.5 V DC at 300mA, supplied by external power supply

  • MBP52: Max Audio Input Level

    0 dBV to + 20dBV

  • MBP52: Gain Adjustment Range

    Mic /0/-10dB

  • MBP52: Input Impedance

    5kOhms

  • MBP52: Power Requirements

    2 AA Batteries alkaline or NiMH rechargeable batteries

  • MBP52: Battery Life

    About 8 Hours

  • HS-U3BK: Sensitivity

    -65 +/- 4dB (0dB=1V/UBR 1kHz)

  • HS-U3BK: Frequency Response

    50Hz - 18kHz

  • HS-U3BK: Output impedance

    2kOhms Max. (RL-2.2kOhms)

  • HS-U3BK: Directionality

    Uni-directional

  • HS-U3BK: Working Voltage Range

    1 - 10V

  • HS-U3BK: Standard Working Voltage

    3V

  • HS-U3BK: Current Consumption

    250UA (Max.)

  • HS-U3BK: Maximum Input Sound Pressure

    110dB SPL

  • HS-U3BK: S/N Ratio

    > 38dB

  • Dimensions (H x W x D)

    ECMR: 1.75 x 9.25 x 4.75" / 4.44 x 23.49 x 12.06cm
    MBP52: 3.3 x 2.6 x 1" / 8.38 x 6.60 x 2.54cm

  • Weight

    ECMR: 0.85lbs / 0.38kg
    MBP52: 3oz / 85.04g (without batteries)

  • UPC Code

    691281805431

About Galaxy Audio ECMR/52HS

Enhance your audio experience with the Galaxy Audio ECMR/52HS 16-Channel Wireless Headset System. Operating in the D/584-607MHz frequency range, this professional-grade system includes the ECMR Receiver, MBP52 Bodypack Transmitter, and a HS-U3BK Headset Microphone, providing you with all the necessary components for a seamless audio setup.

The ECMR Wireless Receiver, a cornerstone of this system, offers an economical solution to high-quality wireless audio transmission. With 16 selectable channels and IR Sync, it provides flexibility and ease of use, ensuring your audio is transmitted clearly and without interference. The receiver also features Diversity Antennas, strategically mounted to the front of its rugged plastic casing for optimal signal reception.

The MBP52 Bodypack Transmitter, included in this system, is powered by 2AA batteries, offering long-lasting performance. It features a 0/-10/Mic selector switch, allowing you to adjust the audio levels to suit your specific needs. This transmitter is designed to sync effortlessly with the ECMR receiver, ensuring a smooth and reliable connection.

Completing this wireless headset system is the HS-U3BK Headset Microphone. Its comfortable wrap-around design goes over both ears, providing a secure fit that stays in place even during active presentations or performances. This stylish black headset microphone captures clear, high-quality audio, making it an ideal choice for professional presentations, events, or performances.

In summary, the Galaxy Audio ECMR/52HS 16-Channel Wireless Headset System offers a comprehensive solution for your audio needs, combining durability, reliability, and high-quality performance in one stylish package. Whether you're a presenter, performer, or audio professional, this system provides the tools you need for exceptional audio transmission.

Galaxy Audio ECMR/52HS Features

  • ECMR Receiver: 16 Selectable Channels
  • ECMR Receiver: Output Volume Control
  • ECMR Receiver: AF Level Indicator
  • ECMR Receiver: IR Sync
  • ECMR Receiver: Squelch Adjustment
  • ECMR Receiver: XLR / 1/4" Outputs
  • ECMR Receiver: Rugged Plastic Casing
  • MBP52 Bodypack Transmitter: IR Sync
  • MBP52 Bodypack Transmitter: 2 AA Batteries
  • MBP52 Bodypack Transmitter: Mic/0/-10 dB
  • MBP52 Bodypack Transmitter: 3 Position Switch
  • MBP52 Bodypack Transmitter: Low Battery Indicator

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this 16-channel wireless headset microphone system.
  • Enjoy freedom of movement with a 200ft range, perfect for dynamic presentations.
  • The HS-U3BK headset microphone delivers exceptional sound quality from 50Hz to 18kHz.
  • Achieve reliable performance with up to 8 hours of battery life on the bodypack transmitter.
  • Easily connect to your sound system with XLR and 1/4" connectors on the ECMR receiver.
  • This durable wireless microphone system operates flawlessly from 14°F to 122°F.

What's in the box:

  • Galaxy Audio ECMR Receiver
  • MBP52 Bodypack Transmitter
  • HS-U3BK Headset Microphone
  • Galaxy Audio 3 Year Limited Warranty
