Galaxy Audio ECMR/HH52 Specifications

System
  • Type of System

    Diversity Handheld UHF

  • RF Carrier Frequency Range

    655-679MHz

  • Approx. Working Range

    150' (50m)

  • Overall Frequency Response

    60Hz to 16kHz +/- 3dB

  • THD

    +/- 30kHz Deviation 1kHz tone <1%

  • Dynamic Range

    >90dB A-weighted

  • # Of Channels

    16 Channels

Receiver

Jump to...
  • Type of Receiver

    ECMR Diversity

  • Type of Outputs

    XLR and 1/4" Phone

  • Power Requirements

    13.5VDC at 300mA, Supplied by External Power Supply

  • Battery Type/Approx. Life

    No - AC power only

  • Display

    Dual Digit LED

  • Antenna Type

    Two band dependent antennas

Transmitter

Jump to...
  • Type of Transmitter

    HH52

  • Type of Microphone

    Dynamic

  • Polar Pattern

    Cardioid

  • Interchangeable Mic Heads

    No

  • Battery Type/Approx. Life

    AA Size Alkaline Batteries
    Life: 8 Hours

  • Level Control

    High / Low RF Power

  • Antenna Type

    Internal

  • Display

    Backlit LCD

  • Dimensions

    Transmitter: 9.8 x 2.1" (250 x 53mm) (Length x Diameter)
    Receiver: 1.75 x 9.25 x 4.75" (44.45 x 235 x 121mm) (HxWxD)

  • Weight

    Transmitter: 9.5 oz (270 g)
    Receiver: 0.85 lbs. (0.39 kg)

  • UPC Code

    691281805301

21 Accessories for Galaxy Audio ECMR/HH52 Wireless UHF Handheld Microphone System, Frequency Band L, 16 Selectable Channels

  • All Accessories (21)
  • Batteries & Power Supply (6)
  • Cables & Adapters (1)
  • Windscreens (4)
  • Microphone and Accessories (2)
  • Mic Stands (8)

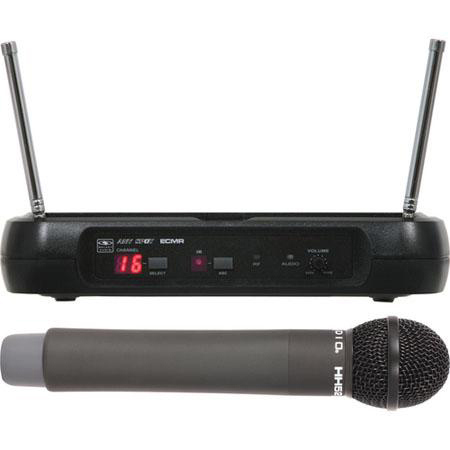

About Galaxy Audio ECMR/HH52

Enhance your audio experience with the ECMR/HH52 Wireless UHF Handheld Microphone System. This high-quality microphone system is perfect for a wide range of applications, from delivering powerful speeches to hosting dynamic presentations, DJing at events, or performing on small stages.

The system is equipped with the ECMR receiver, which boasts 16 user-selectable channels, providing you with the flexibility to choose the best frequency for your specific environment. The receiver also features diversity reception, ensuring a stable and clear signal at all times, even in challenging conditions.

One of the standout features of this wireless UHF microphone system is the Infrared (IR) channel sync. This advanced technology allows for seamless synchronization between the receiver and the transmitter, ensuring a smooth and uninterrupted audio experience.

Included in the package is the HH52 handheld microphone/transmitter. This microphone is designed with a dynamic element that delivers a rich, full-bodied sound. It also features a cardioid polar pattern, which is known for its ability to pick up sound from the front while minimizing background noise. This makes it an excellent choice for situations where you need to focus on a single sound source.

In summary, the ECMR/HH52 Wireless UHF Handheld Microphone System, with its Frequency Band L and 16 Selectable Channels, is a versatile and reliable audio solution that delivers superior sound quality and performance.

Galaxy Audio ECMR/HH52 Features

  • 16 Selectable Channels
  • Output Volume Control
  • AF Level Indicator
  • IR Sync
  • Squelch Adjustment
  • XLR / 1/4" Outputs
  • Rugged Plastic Casing

Key Features

  • High-quality wireless UHF handheld microphone system for diverse audio applications
  • Equipped with ECMR receiver with 16 user-selectable channels for flexible frequency selection
  • Features diversity reception for stable, clear signal transmission
  • Infrared (IR) channel sync ensures seamless synchronization between receiver and transmitter
  • Includes HH52 handheld microphone with dynamic element for rich sound
  • Microphone features cardioid polar pattern for focused sound capture & background noise reduction

What's in the box:

  • Galaxy Audio ECMR Receiver
  • 1/4in Audio Cable
  • Power Adapter
  • User Manual
  • HH52 Handheld Transmitter
  • Galaxy Audio Warranty
