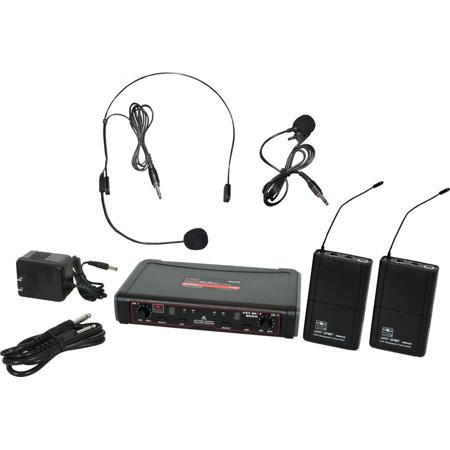

Galaxy Audio Any Spot EDX Series Wireless Microphone System, Includes EDXR Dual Channel Receiver, 2x MBP38 Bodypack Transmitters, HS13-UBK Headset Microphone and LV13-UBK Lavalier Microphone, Frequency Range D: 584-607 MHz

SKU: GAEDXR38SVD

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Galaxy Audio EDXR/38SV Specifications

System
  • Available Channels

    16

  • Frequency Range

    CODE D 584-607 MHz

  • Transmitter Output Level

    10 mW

  • Band

    UHF

  • Operating Range

    Under Typical Conditions 200' (61m), actual range depends on RF signal absorption, reflection and interference

  • Audio Frequency Response

    (+/-3 dB) 60 Hz - 16 kHz

  • Total Harmonic Distortion

    (+/-30 kHz deviation 1 kHz tone): <1%

  • Dynamic Range

    >90 dB A-weighted

  • Operating Temperature Range

    14 to 122 deg. F (-10 to 50 deg. C), battery characteristics may limit this range

Receiver

Jump to...
  • Audio Output Level

    XLR Connector (into 600Ohms load) -12 dBV
    1/4" Connector (into 3KOhms load) -18 dBV

  • Output Impedance

    XLR Connector 200Ohms
    1/4" Connector 1KOhms

  • XLR Output

    Impedance balanced:
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: No Audio -

  • Sensitivity

    -92 dBm

  • Image Rejection

    >92 dB

  • Power Requirements

    12-18 VDC at 300mA, supplied by external power supply

Bodypack Transmitter

Jump to...
  • Max Audio Input Level

    0 dBV to +20 dBV

  • Gain Adjust

    Mic / 0 dB / -10 dB

  • RF Output

    10 mW

  • Input Impedance

    5 KOhms

  • Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Battery Life

    About 8 hours (Alkaline)

General

Jump to...
  • Dimensions (HxWxD)

    Receiver: 1.7 x 8.3 x 5" (4.32 x 21.08 x 12.70cm)
    Bodypack Transmitter: 3.3 x 2.6 x 1" (8.38 x 6.60 x 2.54cm)

  • Weight

    Receiver: 13.6 oz (385.55g)
    Bodypack Transmitter: 2.8 oz (79.38g) (without batteries)

  • UPC Code

    691281008917

About Galaxy Audio EDXR/38SV

The EDX Series is a dual channel wireless system. The EDX features 2 internal antennas (1 for each receiver), 16 selectable channels on each receiver and IR Sync from receiver to transmitter. The EDX has 2 discreet male XLR outputs and 1 combined 1/4" output on the back of the unit. The output is controlled by a volume control for each receiver, located on the front of the unit. The EDXR can be used and will sync with MBP38 bodypack transmitter. System with the MBP38 bodypack is available with lavalier and headset microphones. The bodypack transmitter features an on/off switch and are powered by two "AA" batteries. The MBP38 bodypack transmitter also features a Mic/0/-10 selector switch for various input level sources.

• 200' Range
• 16 Selectable UHF Frequencies
• Internal Antennas

- EDXR Receiver -
• Dual Channel Receiver
• AF & RF Indicators
• IR Sync Receiver to Transmitters
• 1 Mixed 1/4" Output, 2 Balanced Male XLR Outputs
• 2 Internal Antennas (Non-Diversity)
• Rugged Plastic Casing

- MBP38 Bodypack Transmitter -
Body Pack Transmitter for the EDX Wireless Microphone System.

• On/Off/Standby Switch
• IR Sync Transmitter to Receiver
• Mic / 0 dB / -10 dB pad
• Durable Plastic Casing
• Operates on 2 AA Batteries (up to 8 hours Alkaline)

- HS13-UBK Headset Microphone -
This uni-directional headset comes as a standard option with the EDX Headset System. It's comfortable wrap around design goes over both ears and helps ensure that this mic will stay in place.

• Uni-Directional
• Hooks Over Both Ears
• Standard with EDX

- LV13-UBK Lavalier Microphone -
This uni-directional lavalier mic comes as a standard option with the EDX Lavalier Systems.

• Uni-Directional
• Lapel / Lavalier
• Standard with EDX

What's in the box:

  • Galaxy Audio EDXR Dual Channel Receiver
  • 2x MBP38 Bodypack Transmitters (2AA Batteries Not Included)
  • HS13-UBK Headset Microphone
  • LV13-UBK Lavalier Microphone
  • 1/4 " to 1/4 " Audio Cable
  • Power Supply
  • Quick Start Guide
  • Galaxy Audio 3 Year Limited Warranty (1 Year on Headset & Lavalier Mics)
