What are the advantages of having 16 selectable channels on the EDX Series Dual Channel Wireless Microphone System?

Having 16 selectable channels allows you to easily find a clear frequency, minimizing the chances of interference. This ensures a stable and clear audio transmission during your performances or presentations.

What is the purpose of the IR Sync feature on the EDX Series Dual Channel Wireless Microphone System?

The IR Sync feature allows for quick and easy synchronization between the receiver and transmitter. This simplifies the setup process, saving you time and effort.

Does the EDX Series Dual Channel Wireless Microphone System come with both a handheld and bodypack transmitter?

Yes, the EDX Series is compatible with both the HH38 handheld transmitter and the MBP38 bodypack transmitter, providing versatility for different types of performances or presentations.

What is the function of the Mic/0/-10 selector switch on the MBP38 body pack transmitter?

The Mic/0/-10 selector switch allows you to adjust the input level, accommodating various audio sources. This ensures your audio is captured with high fidelity, regardless of the source.

Can I control the volume of each receiver independently on the EDX Series Dual Channel Wireless Microphone System?

Yes, each receiver has its own dedicated volume control on the front panel. This allows for precise audio balancing, giving you the control you need to tailor your sound to the environment.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Galaxy Audio EDXR/HHBPSV Specifications

System
  • Available Channels

    16

  • Frequency Range

    CODE N 518-542 MHz

  • Transmitter Output Level

    10 mW

  • Band

    UHF

  • Operating Range

    Under Typical Conditions 200' (61m), actual range depends on RF signal absorption, reflection and interference

  • Audio Frequency Response

    (+/-3 dB) 60 Hz - 16 kHz

  • Total Harmonic Distortion

    (+/-30 kHz deviation 1 kHz tone): <1%

  • Dynamic Range

    >90 dB A-weighted

  • Operating Temperature Range

    14 to 122 deg. F (-10 to 50 deg. C), battery characteristics may limit this range

Receiver

Jump to...
  • Audio Output Level

    XLR Connector (into 600Ohms load) -12 dBV
    1/4" Connector (into 3KOhms load) -18 dBV

  • Output Impedance

    XLR Connector 200Ohms
    1/4" Connector 1KOhms

  • XLR Output

    Impedance balanced:
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: No Audio -

  • Sensitivity

    -92 dBm

  • Image Rejection

    >92 dB

  • Power Requirements

    12-18 VDC at 300mA, supplied by external power supply

Handheld Transmitter

Jump to...
  • Max Audio Input Level

    0 dBV

  • Gain Adjust

    Trim pot

  • RF Output

    10 mW

  • Frequency Response

    70 Hz - 10 kHz

  • Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Battery Life

    About 8 hours (Alkaline)

Bodypack Transmitter

Jump to...
  • Max Audio Input Level

    0 dBV to +20 dBV

  • Gain Adjust

    Mic / 0 dB / -10 dB

  • RF Output

    10 mW

  • Input Impedance

    5 KOhms

  • Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Battery Life

    About 8 hours (Alkaline)

General

Jump to...
  • Dimensions

    Receiver (H x W x D): 1.7 x 8.3 x 5" (4.32 x 21.08 x 12.70cm)
    Handheld Transmitter (L x Dia.): 10.9 x 1.85" (27.69 x 4.70cm)
    Bodypack Transmitter (H x W x D): 3.3 x 2.6 x 1" (8.38 x 6.60 x 2.54cm)

  • Weight

    Receiver: 13.6 oz (385.55g)
    Handheld Transmitter: 6.9 oz (195.61g) (without batteries)
    Bodypack Transmitter: 2.8 oz (79.38g) (without batteries)

About Galaxy Audio EDXR/HHBPSV

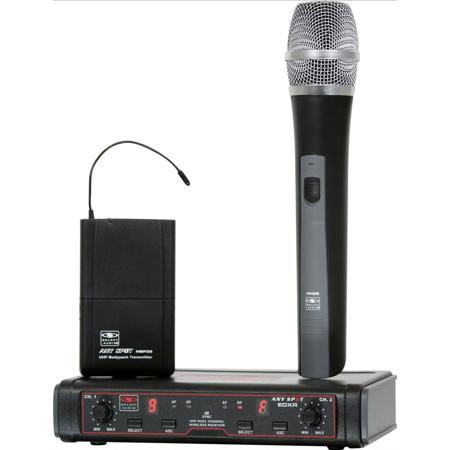

Before stepping onto the stage or presenting at your next event, ensure your voice is heard clearly and reliably with the EDX Series Dual Channel Wireless Microphone System. This professional-grade UHF system boasts a robust build quality, designed to withstand the rigors of live performances and deliver consistent audio excellence.

The EDX Series features two internal antennas, one for each receiver, ensuring a strong and stable signal. With 16 selectable channels on each receiver, you can easily find a clear frequency, minimizing the chances of interference. The innovative IR Sync technology allows for quick synchronization between the receiver and transmitter, streamlining your setup process.

For optimal sound management, the system is equipped with two discrete male XLR outputs and a combined 1/4" output. Each receiver has its own dedicated volume control on the front panel, allowing for precise audio balancing. Whether you're addressing an intimate gathering or a large crowd, the EDX Series gives you the control you need to tailor your sound to the environment.

The EDX Series is compatible with both the HH38 handheld transmitter and the MBP38 bodypack transmitter, catering to a variety of presentation styles. The MBP38 body pack comes with both a lavalier and headset microphone, offering versatility for speakers, performers, and presenters who require hands-free operation. Each transmitter is equipped with an on/off switch for energy conservation and is powered by two AA batteries for extended use.

Furthermore, the MBP38 body pack transmitter includes a Mic/0/-10 selector switch, accommodating various input level sources and ensuring your audio is captured with high fidelity. Whether you're delivering a keynote speech, leading a seminar, or performing live music, the EDX Series Dual Channel Wireless Microphone System is a reliable and high-quality choice that professionals trust for clear, uninterrupted audio.

Galaxy Audio EDXR/HHBPSV Features

  • 200' Range
  • 16 Selectable UHF Frequencies
  • Internal Antennas

Product Documents

User Manual

Key Features

  • Professional UHF wireless system with dual internal antennas for clear signal reception
  • 16 selectable channels per receiver to avoid frequency interference
  • Quick IR Sync feature for easy transmitter-receiver synchronization
  • Versatile dual XLR outputs and combined 1/4" output with individual volume controls
  • Includes both handheld and bodypack transmitters with headset and lavalier mics
  • Bodypack transmitter features a Mic/0/-10 dB selector switch for various input levels

What's in the box:

  • EDXR Dual Channel Receiver
  • HH38 Handheld Transmitter (2AA Batteries Not Included)
  • MBP38 Bodypack Transmitter (2AA Batteries Not Included)
  • HS13-UBK Headset Microphone
  • LV13-UBK Lavalier Microphone
  • 1/4" to 1/4" Audio Cable
  • Power Supply
  • Galaxy Audio 3 Year Limited Warranty (1 Year on Headset Mic)
