What is the range of the Any Spot EDX Series Wireless Microphone System?

The Any Spot EDX Series Wireless Microphone System offers a clear signal for up to 200 feet, making it ideal for various performance and presentation scenarios.

What are the power requirements for the HH38 handheld transmitters?

The HH38 handheld transmitters operate on two 'AA' batteries, providing up to 8 hours of performance time with alkaline batteries.

What kind of outputs does the EDXR dual-channel receiver have?

The EDXR dual-channel receiver is equipped with two discrete male XLR outputs and one combined 1/4" output, offering flexibility in connectivity.

How many frequencies can I select on the EDX Series Wireless Microphone System?

The EDX Series Wireless Microphone System offers 16 selectable UHF frequencies on each receiver, allowing you to tailor your audio experience to your specific needs.

What is the purpose of the IR Sync feature on the EDX Series Wireless Microphone System?

The IR Sync feature on the EDX Series Wireless Microphone System facilitates seamless synchronization between the receiver and the HH38 handheld transmitters, ensuring a quick and easy setup.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Galaxy Audio EDXR/HH38 Specifications

System
  • Available Channels

    16

  • Frequency Range

    CODE D 584-607 MHz

  • Transmitter Output Level

    10 mW

  • Band

    UHF

  • Operating Range

    Under Typical Conditions 200' (61m), actual range depends on RF signal absorption, reflection and interference

  • Audio Frequency Response

    (+/-3 dB) 60 Hz - 16 kHz

  • Total Harmonic Distortion

    (+/-30 kHz deviation 1 kHz tone): <1%

  • Dynamic Range

    >90 dB A-weighted

  • Operating Temperature Range

    14 to 122 deg. F (-10 to 50 deg. C), battery characteristics may limit this range

Receiver

Jump to...
  • Audio Output Level

    XLR Connector (into 600Ohms load) -12 dBV
    1/4" Connector (into 3KOhms load) -18 dBV

  • Output Impedance

    XLR Connector 200Ohms
    1/4" Connector 1KOhms

  • XLR Output

    Impedance balanced:
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: No Audio -

  • Sensitivity

    -92 dBm

  • Image Rejection

    >92 dB

  • Power Requirements

    12-18 VDC at 300mA, supplied by external power supply

Handheld Transmitter

Jump to...
  • Max Audio Input Level

    0 dBV

  • Gain Adjust

    Trim pot

  • RF Output

    10 mW

  • Frequency Response

    70 Hz - 10 kHz

  • Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Battery Life

    About 8 hours (Alkaline)

General

Jump to...
  • Dimensions

    Receiver (HxWxD): 1.7 x 8.3 x 5" (4.32 x 21.08 x 12.70cm)
    Handheld Transmitter (LxDia.): 10.9 x 1.85" (27.69 x 4.70cm)

  • Weight

    Receiver: 13.6 oz (385.55g)
    Handheld Transmitter: 6.9 oz (195.61g) (without batteries)

  • UPC Code

    691281006487

About Galaxy Audio EDXR/HH38

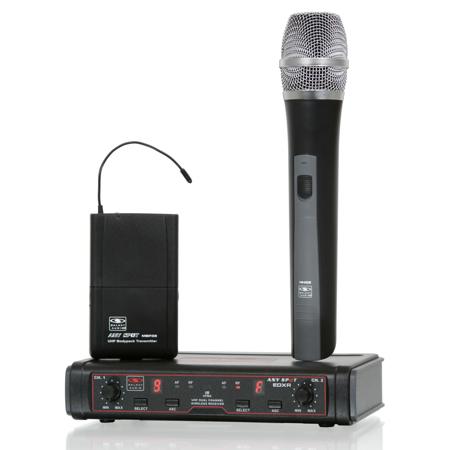

The EDX Series is a dual channel wireless system. The EDX features 2 internal antennas (1 for each receiver), 16 selectable channels on each receiver and IR Sync from receiver to transmitter. The EDX has 2 discreet male XLR outputs and 1 combined 1/4" output on the back of the unit. The output is controlled by a volume control for each receiver, located on the front of the unit. The EDXR can be used and will sync with HH38 handheld transmitter. The handheld transmitter features an on/off switch and are powered by two "AA" batteries.

• 200' Range
• 16 Selectable UHF Frequencies
• Internal Antennas

- EDXR Receiver -
• Dual Channel Receiver
• AF & RF Indicators
• IR Sync Receiver to Transmitters
• 1 Mixed 1/4" Output, 2 Balanced Male XLR Outputs
• 2 Internal Antennas (Non-Diversity)
• Rugged Plastic Casing

- HH38 Dynamic Handheld Transmitter -
Dynamic Handheld Microphone Transmitter for the EDX Wireless Microphone System.

• Dynamic Cardioid
• On/Off Switch
• IR Sync Transmitter to Receiver
• Plastic Casing
• Operates on 2 AA Batteries (up to 8 hours Alkaline)

What's in the box:

  • Galaxy Audio EDXR Dual Channel Receiver
  • 2x HH38 Handheld Transmitters (2AA Batteries Not Included)
  • 1/4 " to 1/4 " Audio Cable
  • Power Supply
  • Quick Start Guide
  • Galaxy Audio 3 Year Limited Warranty
