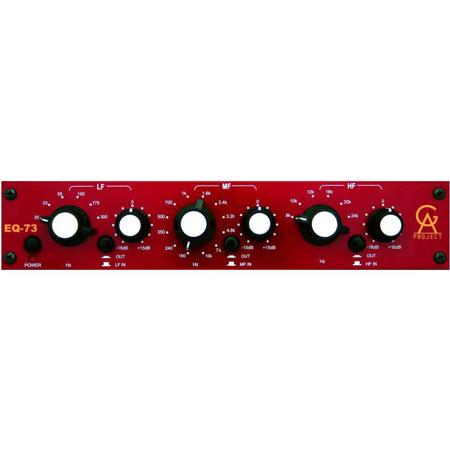

Golden Age Project EQ-73 Vintage Style Equalizer, 20Hz-24kHz Frequency, Up to +/-18 dB Control Range, 1/4" TRS Insert Connectors

The Golden Age Project EQ-73 Vintage Style Equalizer is similar to the eq section in the classical 1073 module, without the high pass filter. Additional frequencies have been added and the mid frequency band uses two inductors, the higher value of the second one is used for the two lowest frequencies, 160 Hz and 240 Hz, to achieve a suitable response. The sound character is warm, punchy, sweet and musical. These classic characteristics have been heard on countless recordings through the years and it is a versatile sound that works very well on most sound sources and in most genres.

The EQ-73 has stepped frequency controls that offers a wide selection of frequencies from 20 Hz to 24 kHz. The Low and High frequency bands are shelving and the mid frequency band is of the bell type. The control range is +/-15 dB for the two lower bands and +/- 18dB for the high frequency band. It is separated bypass switches for all three bands. The EQ-73 is made to be used together with one of PRE-73 models that has an Insert jack. It can also be used with many other units that has a low level insert jack.
